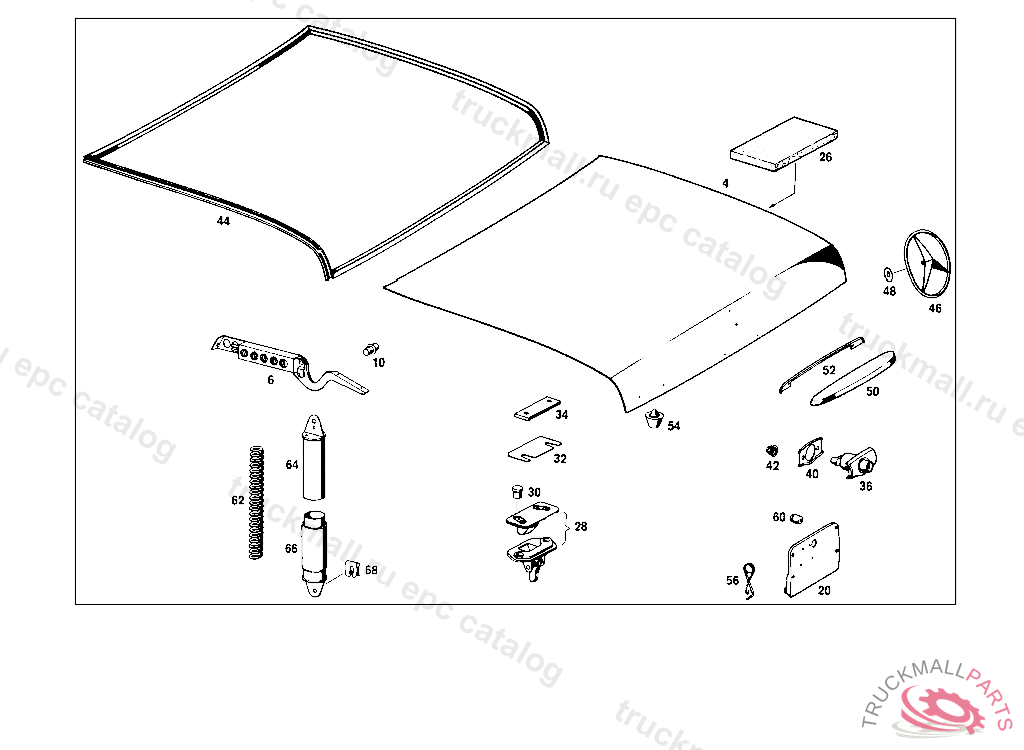

Поз.
Артикул
Описание
4
REAR LID SHELL
6
HINGE LEFT
20
FLAP FILLER NECK
26
INTERMEDIATE LAYER11 MM, FROM CHASSIS: 010 002636 015 000135 048481
28
LOCK
30
RUBBER BUFFER
30
RUBBER BUFFER , Replaced By: A1239870040
32
BASE PLATE
34
PLATE
36
FASTENER WITH HANDLE
40
PAD LOCK TO FLAP
42
NUT
44
SEAL REAR LID
46
MERCEDES STAR
48
RUBBER RING
50
HANDLE
52
PAD HANDLE TO REAR LID
54
RUBBER BUFFER
56
SPRING LEFT
60
RUBBER BUFFER
999
CLEANER
999
SPRING RIGHT
999
FLAP , 012 UP TO CHASSIS 041934, 014 UP TO CHASSIS 033457, 015 UP TO CHASSIS 002384, Replaced By: A1117505606
999
HINGE RIGHT
999
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
999
LOCK WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM), 003225
999
BRACE , Replaced By: A1157580997
999
PLATE , Replaced By: A1167500011
999
RUBBER BUFFER , Replaced By: A1119871740
999
INTERMEDIATE LAYER , Replaced By: A1237580397
999
INTERMEDIATE LAYER6 MM, FROM CHASSIS: 010 054508 110 134760 017,114,117 000001
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000125008443
999
SCREW BRACKET TO AIR INTAKE PIPE
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017006034
999
NUT , Replaced By: N304032008006
999
SCREW , Replaced By: N007985005157
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SCREW , 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
NUT
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
