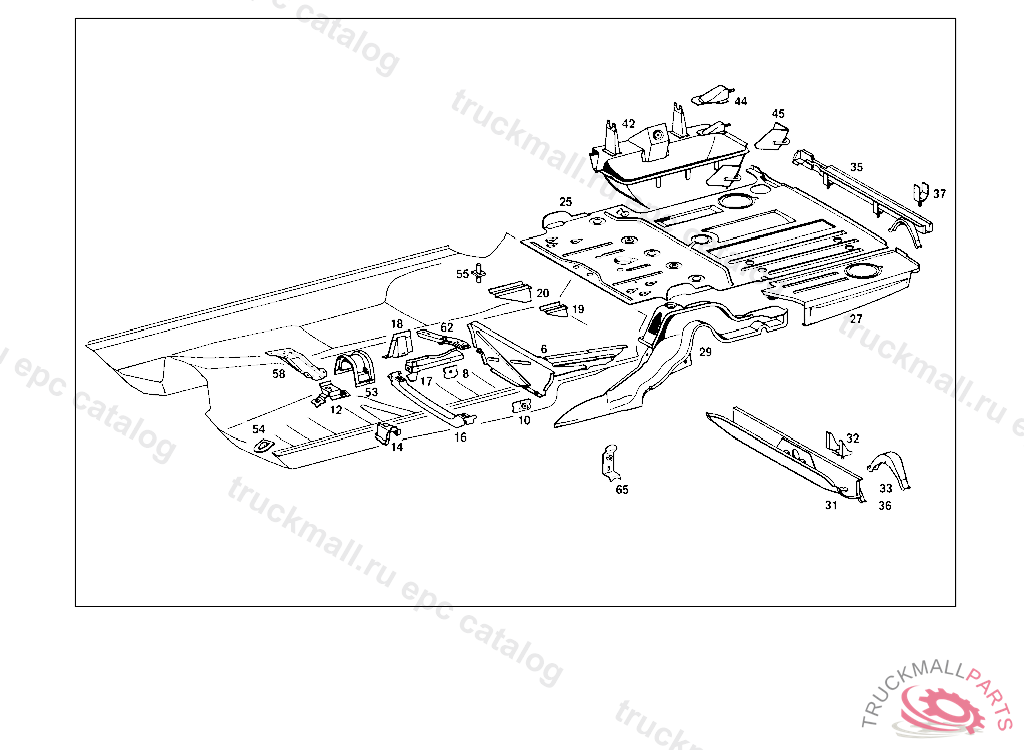

Поз.
Артикул
Описание
6
BRACKET
8
THREADED CHUCK SAFETY BELT MOUNTING
8
THREADED CHUCK , Replaced By: A1269840025
8
PLATE , Replaced By: A1269840125
12
BRACKET
14
COVERING
16
COVERING
17
RAIL
18
MOUNTING
19
BRACKET
20
BRACKET
25
REAR END FLOOR
27
REAR END FLOOR
29
SIDE MEMBER LEFT
31
CROSS MEMBER
32
BRACKET
33
BRACKET EXHAUST PIPE SUSPENSION
35
CROSS MEMBER
36
BRACKET EXHAUST PIPE SUSPENSION
37
BRACKET FUEL TANK, 083 000289 086 000149 093 000120 183 000404 190 000350 000 098844 003 049443 007 042061 102 079296 103 079273 105 099373
42
SPARE WHEEL WELL
44
CONSOLE
45
CONSOLE
53
SEAT PROPELLER SHAFT BEARING IN TUNNEL CENTER, 055617
54
COVERING
55
THREADED BUSHING
58
WEB
62
WEB
65
CROSS MEMBER , FROM CHASSIS: 023 009842 072 003680 073 000931
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
WASHER BRACKET TO COVERING
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW SENSOR CABLE TO PROTECTIVE PLATE
999
SCREW , Replaced By: N304017008016
999
SCREW SCREENING PLATE TO BRACKET,K 142858
999
LOCK WASHER , Replaced By: N912004010102
999
LOCK WASHER TAIL LAMP TO BRACKET
999
REAR END FLOOR , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 125671 015 169353 100,102,103,110,112 342132, Replaced By: A1156180561
999
REAR END FLOOR , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 125671 015 169353 100,102,103,110,112 342132, Replaced By: A1156180761
999
FLOOR RIGHT
999
COVERING RIGHT OUTSIDE FRONT
999
FLOOR , EXHAUST STOCK OF OLD PARTS,AND REWORK THE NEW PART IN TUNNEL AREA UP TO CHASSIS: 000,002,010 122154 015 162794 100,102,103,110,112 330564 115 172063, Replaced By: A1156161067
999
FLOOR , Replaced By: A1156160967
999
CONSOLE
999
BRACKET (REST),FRONT SEAT,RIGHT INSIDE FRONT
999
CROSS MEMBER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 115420 015 150133 100,102,103,110,112 307701 115 157810, Replaced By: A1156100916
999
BRACKET (REST),REAR SEAT,RIGHT
999
FLOOR , Replaced By: A1156100661
999
STAY RIGHT
999
SIDE MEMBER REAR RIGHT
999
SPARE WHEEL WELL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,010122680 015164074 100,103,110, 332657 115173584, Replaced By: A1156100475
999
FLOOR , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 125671 015 169353 100,102,103,110,112 342132, Replaced By: A1156100261
999
CONSOLE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 023 010518 072 007548 073 004885, Replaced By: A1146180131
