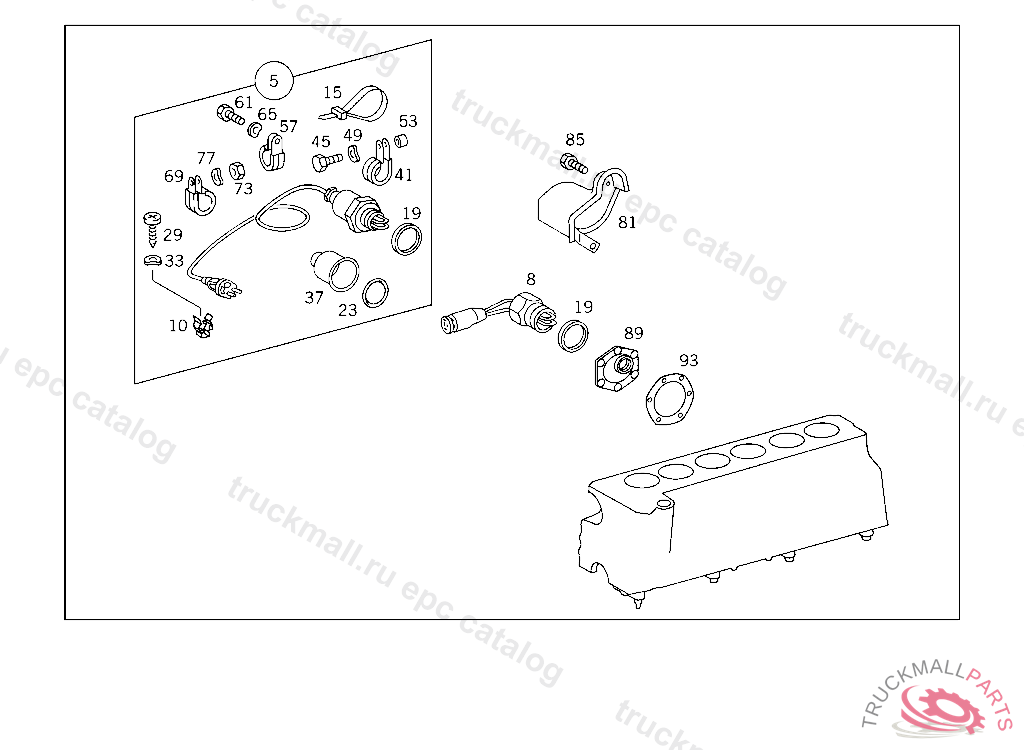

Поз.
Артикул
Описание
5
PREHEATER PARTS KIT
5
PREHEATER PARTS KIT
5
PRE-HEATER , Replaced By: A1232000096
5
PRE-HEATER , Replaced By: A1232000196
5
COILED TUBE , Replaced By: A6012000096
5
COILED TUBE , Replaced By: A6012000196
8
PREHEATER COOLING WATER PRE-HEATER
10
CLIPTO 123 200 00 96,123 200 01 96
10
CLIPTO 000 203 47 95,000 203 48 95
15
LOOM TIE TO MOUNT PLASTIC PIPING
19
SEAL RING
23
SEAL RING CYLINDER CRANKCASE,RIGHT
29
SHEET METAL SCREW BRACKET TO CAB
29
SHEET METAL SCREW , Replaced By: N007981003323
29
SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003203
29
SHEET METAL SCREW
33
SPRING WASHER ALTERNATOR CONNECTION D+
37
CAPTO 123 200 00 96,123 200 01 96
41
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
45
SCREW BRACKET TO SIDE MEMBER
45
SCREW , Replaced By: N304017008040
49
SPRING WASHER , Replaced By: N000137008212
49
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
53
WASHER BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
57
CLAMP SENSOR CABLE TO BRACKET
61
SCREW COVER PLATE TO COVER PLATE M 6 X 12
61
SCREW , Replaced By: N304017006018
65
SPRING WASHER LICENSE PLATE TO BRACKET
69
CLAMP FROM DISTRIBUTOR TO CYLINDER
73
NUT , Replaced By: N304032005005
73
NUT IN CASE OF SUBSEQUENT INSTALLATION
77
SPRING WASHER ALTERNATOR CONNECTION D+
81
COVER PLATE , ONLY APPLICABLE TO MODELS 103.940/941/942/943/980/981/983/985104.944/990/992, 602.962, 603.960/963/971
85
SCREW COVER PLATE TO COVER PLATE M 6 X 12
85
SCREW , Replaced By: N304017006018
89
CYLINDER SIDE COVER , Replaced By: A1100100010
89
CYLINDER SIDE COVER
93
GASKET
93
GASKET , Replaced By: A1100150121
999
SCREW PLUG CYLINDER CRANKCASE,RIGHT
999
SCREW PLUG
