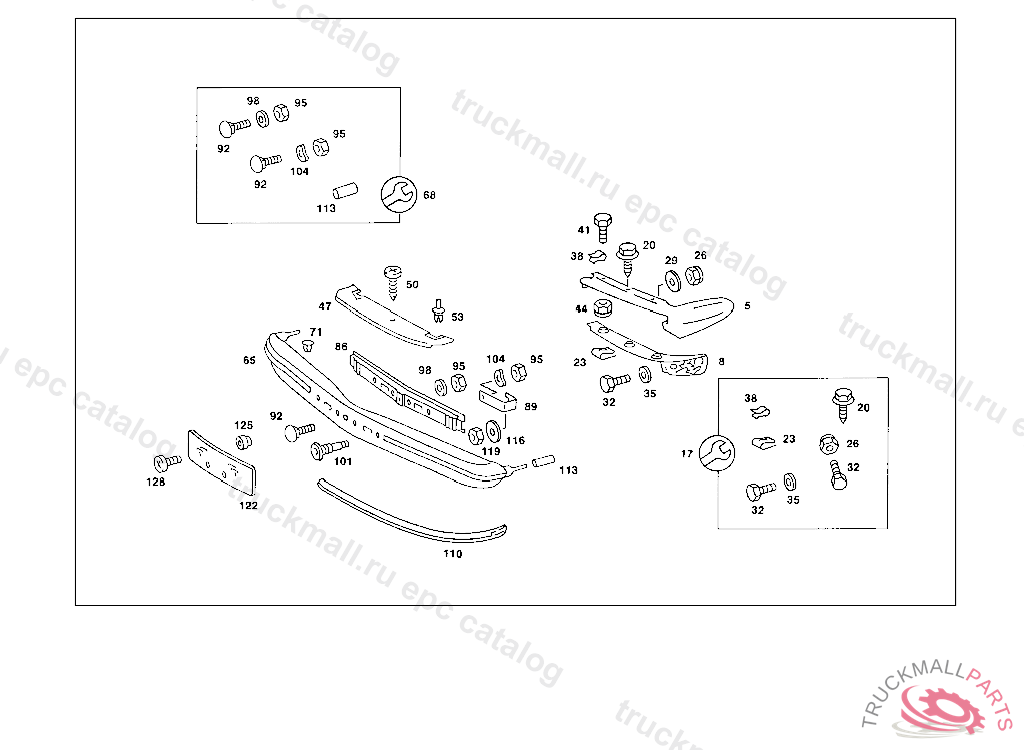

Поз.
Артикул
Описание
5
BUMPER JOINT COVER RIGHT,DULL SURFACE, IN PAIRS OPTIONAL WITH 123 885 28 23,123 885 27 23
5
BUMPER JOINT COVER LEFT,DULL SURFACE,IN PAIRS OPTIONAL WITH 123 885 27 23,123 885 28 23
5
BUMPER JOINT COVER , Replaced By: A1238852723
5
BUMPER JOINT COVER , Replaced By: A1238852823
8
REINFORCEMENT FRONT RIGHT,BETWEEN BUMPER AND FENDER, 023 016281 033 011961 123 008770 130 014309
8
REINFORCEMENT FRONT LEFT,BETWEEN BUMPER AND FENDER, 023 016281 033 011961 123 008770 130 014309
17
REPAIR KIT FRONT BUMPER REINFORCEMENT & PANELLING MOUNTING MATERIAL
20
SCREW
23
LOCK , Replaced By: A0009940645
23
LOCK INSTRUMENT PANEL TO PANELLING
26
NUT
29
WASHER , Replaced By: N009021006208
29
WASHER COMPRESSED AIR LINE TO BRACKET
32
SCREW PUMP TO BRACKET
32
SCREW DISTRIBUTOR TO CAB
32
SCREW COVER PLATE TO BRACKET
35
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
35
WASHER COMPRESSED AIR LINE TO BRACKET
38
CLIP
41
SCREW COVER PLATE TO COVER PLATE M 6 X 12
41
SCREW , Replaced By: N304017006018
44
NUT
47
BUMPER JOINT COVER FRONT,BETWEEN BUMPER AND BODY, 003 099459 007 082986 086 006885 093 008450 102,103 219668 105 219920 183 014499 190 021302 193 000281 200 013534 280 000039 283 002732
50
SHEET METAL SCREW , Replaced By: N000000000453
50
SHEET METAL SCREW MODULE TO HOUSING
53
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
65
FRONT BUMPER FACE BAR
65
FRONT BUMPER FACE BAR , NOT FOR USE WITH HEADLAMP CLEANING UNIT,ALSO ORDER: 2 PLUG 123 997 03 86, Replaced By: A1238801270, +002A1239970386
68
REPAIR KIT FRONT BUMPER MOUNTING MATERIAL,WITH LICENSE PLATE BRACKET
71
PLUGTO 123 880 12 70
86
REINFORCEMENT FRONT BUMPER
89
BRACKET LEFT,FRONT BUMPER TO CROSS MEMBER
89
BRACKET RIGHT,FRONT BUMPER TO CROSS MEMBER
92
SCREW BRACKET TO FENDER,K 104588
95
NUT
95
NUT , Replaced By: N304032008006
98
WASHER , Replaced By: N000125008443
98
WASHER EXHAUST MUFFLER TO STRAP
101
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
101
SCREWM 8X20,K 164029
104
SPRING WASHER SHIFTING CYLINDER TO YOKE
110
RAIL , Replaced By: A1238850021
110
RAIL FRONT BUMPER 615 MM, TO BE ADAPTED DURING ASSEMBLY
113
HOSE35 MM
116
WASHER , Replaced By: N009021010209
116
WASHER BRACKET TO COVERING
119
NUT BRACKET TO SUPPORT AND TO END PIECE
122
LICENSE PLATE MOULDING FRONT
125
BRACKET
128
SCREW , Replaced By: N000085005151
128
SCREW
