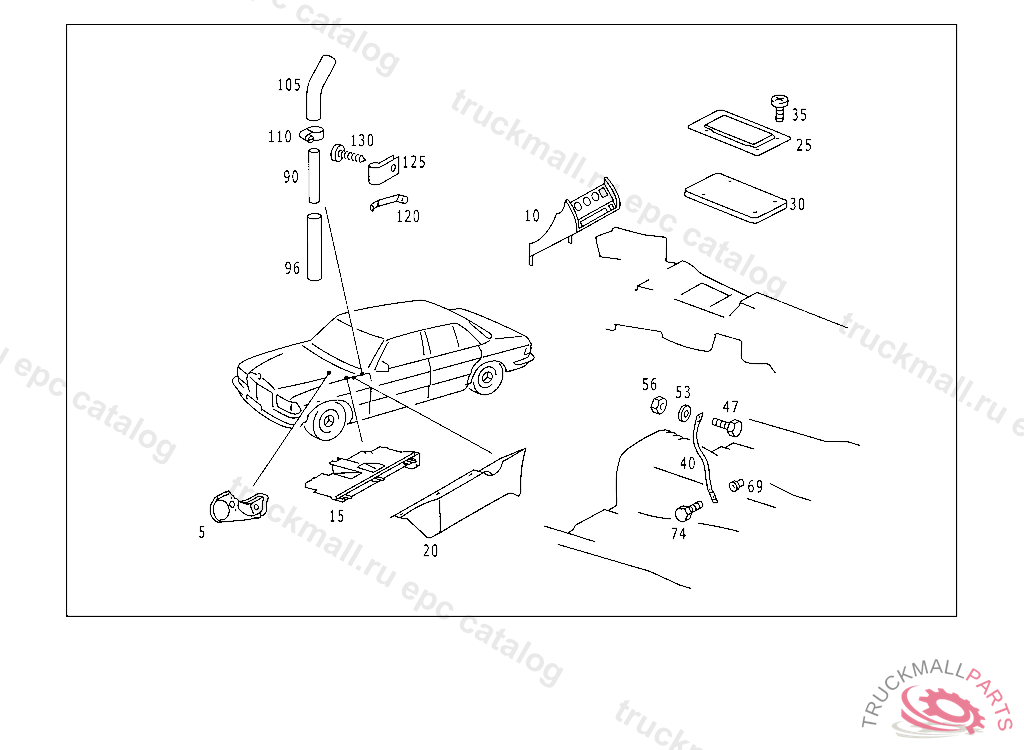

Поз.
Артикул
Описание
5
REINFORCEMENT SHIFT LINKAGE PASSAGE THRU FIRE WALL
10
PANELLING TOP
15
COVERING LEFT
20
COVERING LEFT
20
COVERING LEFT
25
COVERING FLOOR SHIFT OPENING
30
SEAL FLOOR SHIFT OPENING
35
HEXAGON HEAD BOLT
40
STAY LEFT
47
SCREW , Replaced By: N910105006023
53
WASHER COMPRESSED AIR LINE TO BRACKET
56
NUT BALL PIVOT TO LEVER
69
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
74
SCREW , Replaced By: N910105006023
90
PIPE LINE WATER DRAIN,LEFT 107 MM, FROM CHASSIS 086 007396 093 010255 TO BE ADAPTED DURING ASSEMBLY
96
HOSE BOTTOM LEFT
105
HOSE TOP LEFT
110
LOOM TIE
120
BRACKET HOSE TO FIRE WALL
120
BRACKET
125
LOOM TIE
130
SHEET METAL SCREW BRACKET TO CAB FLOOR
