Поз.
Артикул
Описание

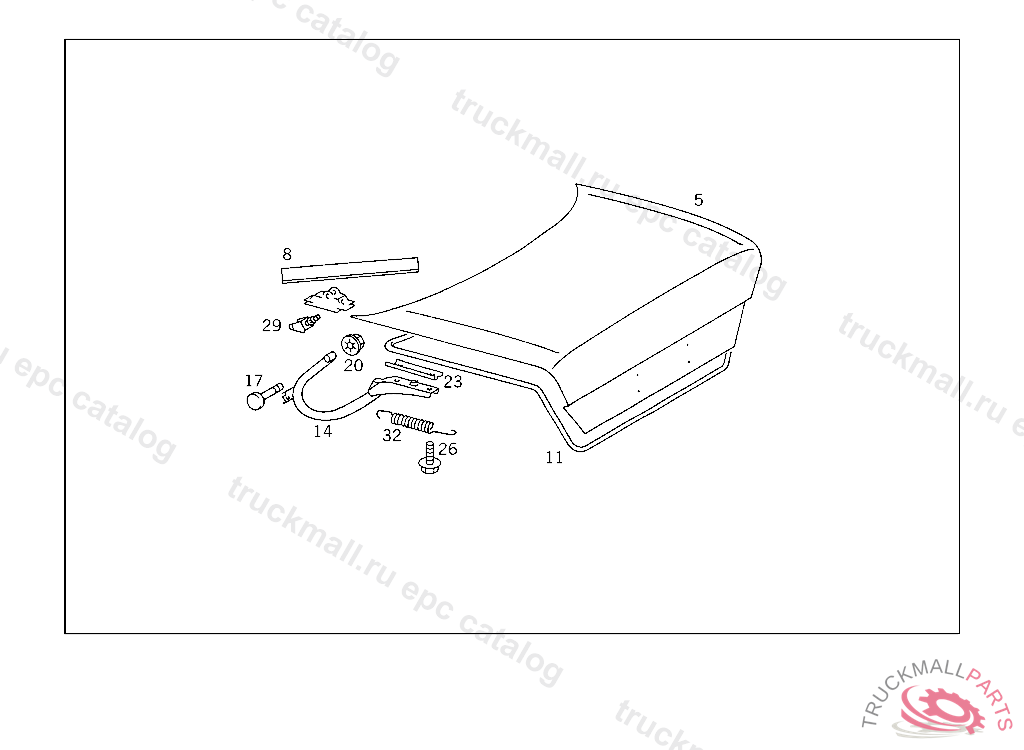

5
REAR LID , Replaced By: A1247500675
5
REAR LID , Replaced By: A1247500775
5
REAR LID , Replaced By: A1247502275
5
REAR LID STEEL,LESS HOLES FOR TYPE DESIGNATION
8
PAD BETWEEN STIFFENING AND PANELLING 207 MM, TO BE ADAPTED DURING ASSEMBLY
8
PAD BETWEEN STIFFENING AND PANELLING 450 MM
8
PAD , Replaced By: A1247570297
8
PAD , Replaced By: A1247570297
8
PAD , Replaced By: A1407570097
11
SEAL REAR LID,A 561620
11
SEAL REAR LID
14
HINGE LEVER RIGHT
14
HINGE LEVER LEFT
14
HINGE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 491843, Replaced By: A1247500528
14
HINGE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 491843, Replaced By: A1247500628
17
SCREW , Replaced By: A2109900020
17
SCREW HINGE LEVER TO MOUNTING
20
NUT BRACKET MOUNTING
20
NUT BRACKET TO BRAKE LINKAGE BRACKET
23
REINFORCEMENT HINGE LEVER TO MOUNTING,A 491843
26
HEXAGON HEAD BOLT
26
SCREW , Replaced By: N910105006002
29
STOP , Replaced By: A2027500026
29
STOP , Replaced By: A2027500026
29
STOP , Replaced By: A2027500126
29
STOP HINGE LEVER BEARING
32
SPRING REAR LID,A 781819
32
SPRING REAR LID
32
SPRING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS A 071219 ONLY REPLACEABLE BY PAIRS TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1247570329
32
SPRING REAR LID, C 076921 J 028151
