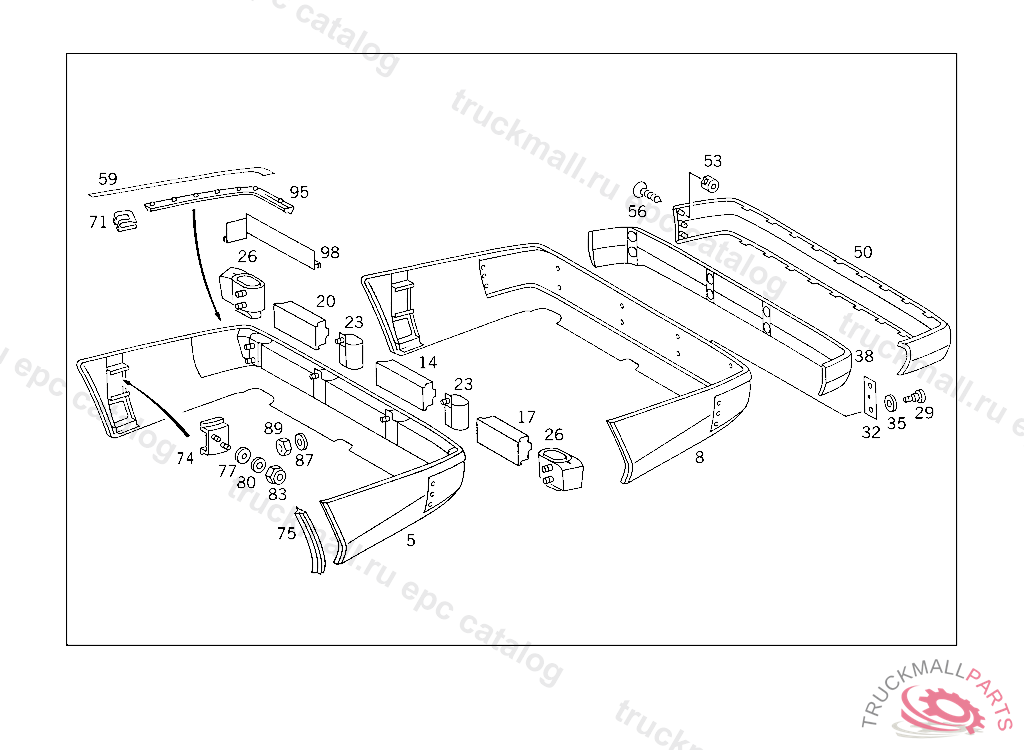

Поз.
Артикул
Описание
5
REAR BUMPER FACE BAR WITH COVERING, TO BE PAINTED PRIOR TO INSTALLATION FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901
8
PANELLING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901
14
ENERGY-ABSORBING UNIT INSIDE CENTRAL
17
ENERGY-ABSORBING UNIT REAR INSIDE LEFT
20
ENERGY-ABSORBING UNIT REAR INSIDE RIGHT
23
BRACKET INSIDE LEFT AND RIGHT REAR
26
BRACKET OUTSIDE RIGHT
26
BRACKET OUTSIDE LEFT
29
SCREW BRACKET AND ENERGY-ABSORBING UNIT TO BUMPER COVERING
32
PLATE
35
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
38
ENERGY-ABSORBING UNIT REAR OUTSIDE
50
RAIL REAR BUMPER
53
THREADED CHUCK PROTECTIVE RAIL TO PANELLING
56
TAPPING SCREW CONTROL UNIT TO FIRE WALL
56
SCREW , Replaced By: N000000000521
59
BAFFLE PLATE BUMPER PANELLING,RIGHT
59
BAFFLE PLATE BUMPER PANELLING,LEFT
71
HOLDDOWN CLIP ORNAMENTAL COVER TO BUMPER
74
GUIDE ON REAR END FLOOR,LATERAL LEFT AND RIGHT
75
BUMPER JOINT COVER BUMPER PANELLING,LEFT
75
BUMPER JOINT COVER BUMPER PANELLING,RIGHT
77
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
80
WASHER
83
NUT PUMP TO BRACKET
83
NUT HEATING PIPE TO BRACKET
87
WASHER BUMPER TO CROSS MEMBER
89
NUT
95
SEAL LEFT
95
SEAL RIGHT
98
SEAL LEFT
98
SEAL RIGHT
