Mercedes
›
CAR
›
300 TD
›
124.190 200-300 9/89-10/92, 200D-300D 9/89-7/93
›
83 HEATING AND VENTILATION
›

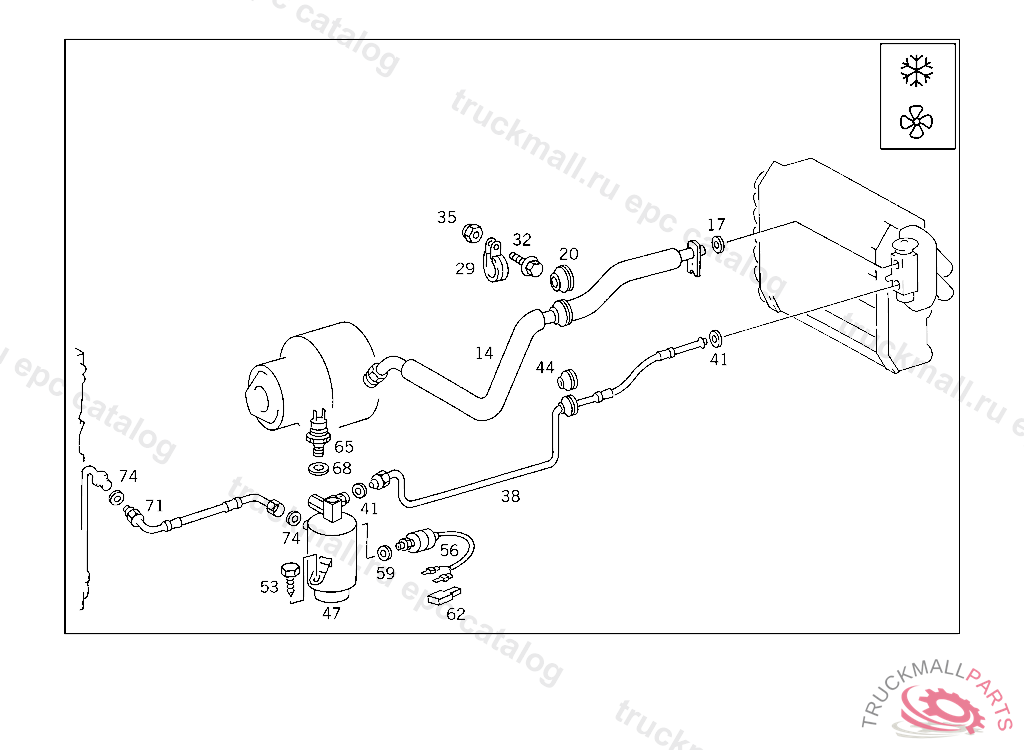

195 REFRIGERANT LINE ARRANGEMENT IL. 1
Mercedes A1409971145 - Втулка
300 TD 124.190 200-300 9/89-10/92, 200D-300D 9/89-7/93
83 HEATING AND VENTILATION - 195 REFRIGERANT LINE ARRANGEMENT IL. 1
Поз.
Артикул
Описание
14
A1248304815
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
17
A1409970945
O-RING HOSE TO EXPANSION VALVE 17X2
20
A1869970781
GROMMET 34 MM
29
N916016019200
CLAMP LINE MOUNTING
32
N910105006002
HEXAGON HEAD BOLT
35
N913012006001
NUT CLAMP TO BRACKET
38
A1248304715
PIPE LINE FROM LIQUID TANK TO EXPANSION VALVE
41
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
44
A1839970081
GROMMET
47
A1248300283
TANK
53
N007976004205
SHEET METAL SCREW BRACKET TO CAB FLOOR
56
A0048206810
SWITCH AT LIQUID TANK,FOR ADDITIONAL BLOWER
59
A1409971145
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
62
A0005460645
INSULATING SLEEVE CABLE HARNESS FOR ELECTRIC SEAT ADJUSTER
65
A1248208310
SWITCH LIQUID TANK, 023 060688 033 029143 123 043369 130 055527
65
A1248213651
SWITCH , Replaced By: A1248208310
68
A1409971145
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
71
A1248304915
PIPE LINE FROM CONDENSER TO LIQUID TANK
74
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
