Mercedes
CAR
300 E 4 MATIC JAPAN
124.230 TO 09/89
47 FUEL SYSTEM

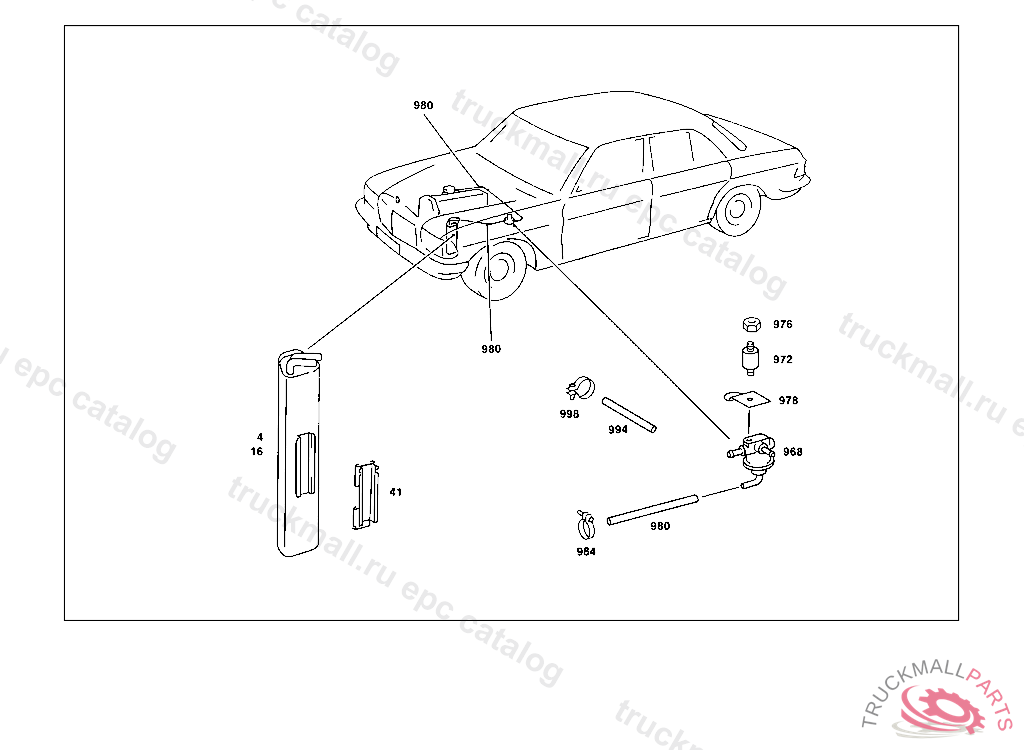

001 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM (FOR TYPES 124,201, SEE STANDARD MICROFIC IL.6

Mercedes A1150780781 - ТРУБКА

300 E 4 MATIC JAPAN 124.230 TO 09/89

47 FUEL SYSTEM - 001 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM (FOR TYPES 124,201, SEE STANDARD MICROFIC IL.6

Поз.
Артикул
Описание
4
A1234700259
ACTIVATED CHARCOAL FILTER
4
A1164700059
ACTIVATED CHARCOAL FILTER , Replaced By: A1234700259
16
A1164700259
ACTIVATED CHARCOAL FILTER
41
A1164700981
BRACKET
968
A0004700093
VALVE
972
A1143280581
BUFFER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS:020974, Replaced By: A1269880011
972
A1269880011
BUFFER
976
N913004005001
NUT TWO-WAY VALVE TO BRACKET
978
A1234710441
BRACKET
980
A1149971882
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
984
N916033012100
CLAMP
984
A0019976990
HOSE CLAMP HOSE FASTENING 9/13MM
994
A1150780481
HOSE , Replaced By: A1150780781
994
A1150780781
HOSE FROM VALVE TO CARBURETOR
998
N916033012100
CLAMP
998
N916002010100
CLAMP LINE MOUNTING
999
A1074710281
BOOT CHECK VALVE,K 169122
999
A1234700125
BREATHER
999
A1234700225
BREATHER , 020 073526 023 090168 026,028 045001 030 022218 033 038910 120 104560 123,125 070948 126 040619 130,132 089299
999
A1264711015
BREATHER PIPE
