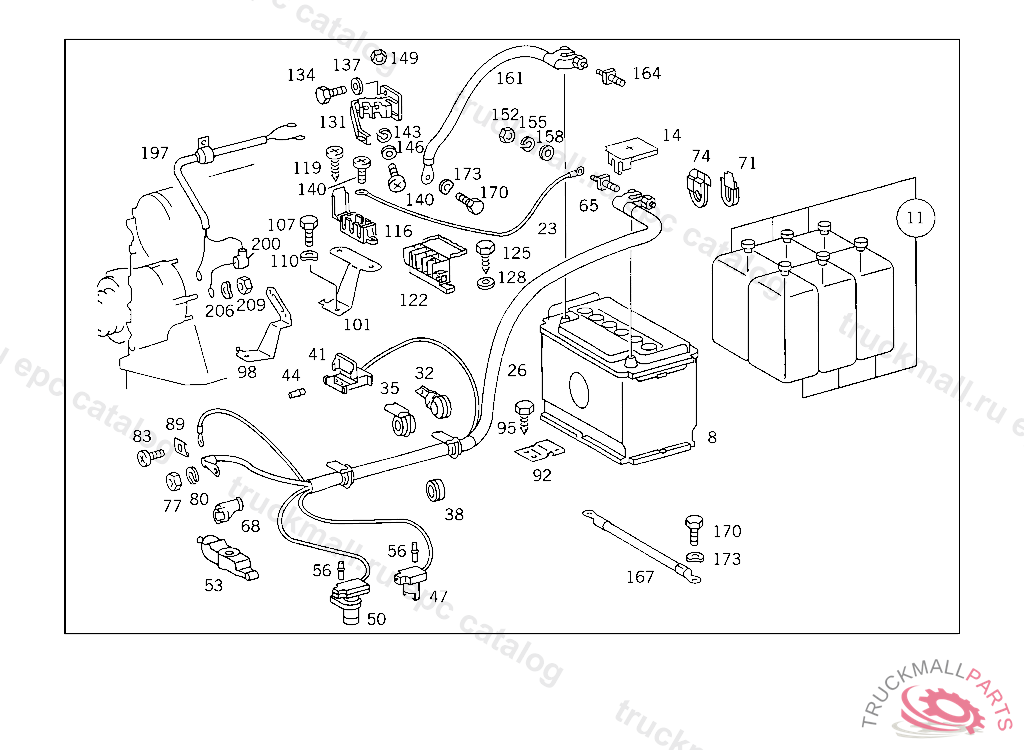

Поз.
Артикул
Описание
8
BATTERY
8
BATTERY FILLED 12V/100 AH
11
BATTERY ACID BOTTLE SETTO 001 541 79 01
11
BATTERY ACID BOTTLE SET
14
BOOT POS. POLE
14
BOOT , Replaced By: A0015460835
23
ELECTRIC CABLE FROM BATTERY TO CABLE CONNECTOR
26
POSITIVE CABLE
26
POSITIVE CABLE
32
BRACKET STARTING CABLE
35
GROMMET , Replaced By: A0005460937
35
GROMMET , 003 038504 EXCEPT FOR 038143,038206,038214,038216-038220,038223-038227,038229,038231,038232,038234-038311,038313,038314, 038316-038324,038326-038330,038332-038335,038337,038338,038340,038342,038343,038345-038350,038352- 038368,038372-038374,038376,038380,038382,038383,038385-038387,038389-038397,038401-038405,038408- 038424,038426-038494,038496-038502.
38
GROMMET 34 MM
41
PLUG HOUSING INBOARD CABLE HARNESS PLUG-CONNECTION
44
PLUG PIN , Replaced By: A0135457928
44
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
47
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
50
PLUG. PIN BUSHING HOUSING NTC FEELER
53
GROMMETTO 014 545 07 28
56
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
56
ROUND PIN BUSHING , Replaced By: A0035452626
65
SCREW NEG.POLE
68
BOOT CABLE TO STARTING MOTOR,TERMINAL 30, 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
68
BOOT CABLE TO STARTING MOTOR,TERMINAL 30, 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
71
GROMMET STARTING CABLE THRU UNIT PARTITION PANEL
71
GROMMET STARTING CABLE THRU UNIT PARTITION PANEL
74
GROMMET STARTING CABLE THRU UNIT PARTITION PANEL
77
NUT
80
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
83
SCREW ELECTRIC CABLE TO HORN
89
MOUNTING BOW CABLE TO STARTING MOTOR,TERMINAL 50
92
BRACKET
92
BRACKET , Replaced By: A1265453840
95
SHEET METAL SCREW BRACKET TO CAB FLOOR
101
BRACKET AT BATTERY FRAME
107
SCREW , Replaced By: N304017006018
107
SCREW COVER PLATE TO COVER PLATE M 6 X 12
110
SPRING WASHER LICENSE PLATE TO BRACKET
116
SOCKET-TERMINAL STRIP 3-POLE
119
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
122
SOCKET-TERMINAL STRIP 4-POLE
125
SHEET METAL SCREW
128
WASHER BOOT TO CAB FLOOR
128
WASHER , Replaced By: N000433005304
131
SOCKET-TERMINAL STRIP 3-POLE
134
SCREW , Replaced By: N304017006018
134
SCREW COVER PLATE TO COVER PLATE M 6 X 12
137
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
137
WASHER COMPRESSED AIR LINE TO BRACKET
140
SCREW , Replaced By: A0029903712
140
SCREW ELECTRIC CABLE TO FUSE BOX
140
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
143
LOCK WASHER T-FITTING TO BRACKET
143
LOCK WASHER T-FITTING TO BRACKET
143
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
146
WASHER COMPRESSED AIR LINE TO BRACKET
146
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
149
NUT BALL PIVOT TO LEVER
152
NUT
155
LOCK WASHER CABLE TO TERMINAL B+
158
WASHER CABLE TO TERMINAL B+
161
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
161
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 310 MM
161
NEG. CABLE , Replaced By: A1265400531
161
NEG. CABLE , Replaced By: A1265400631
164
SCREW NEG.POLE
167
NEG. CABLE FROM SIDE MEMBER TO ENGINE,A 388642
167
NEG. CABLE FROM SIDE MEMBER TO ENGINE
170
SCREW , Replaced By: N304017008016
170
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
173
SPRING WASHER , Replaced By: N000137008212
173
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
197
ELECTRIC CABLE FROM ALTERNATOR TO CABLE CONNECTOR
200
BOOT HEATER PLUGS
206
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
206
SPRING WASHER ALTERNATOR CONNECTION D+
206
SPRING WASHER , Replaced By: N000137008212
209
NUT , Replaced By: N304032008006
209
NUT TACHOGRAPH TO BRACKET
209
NUT
