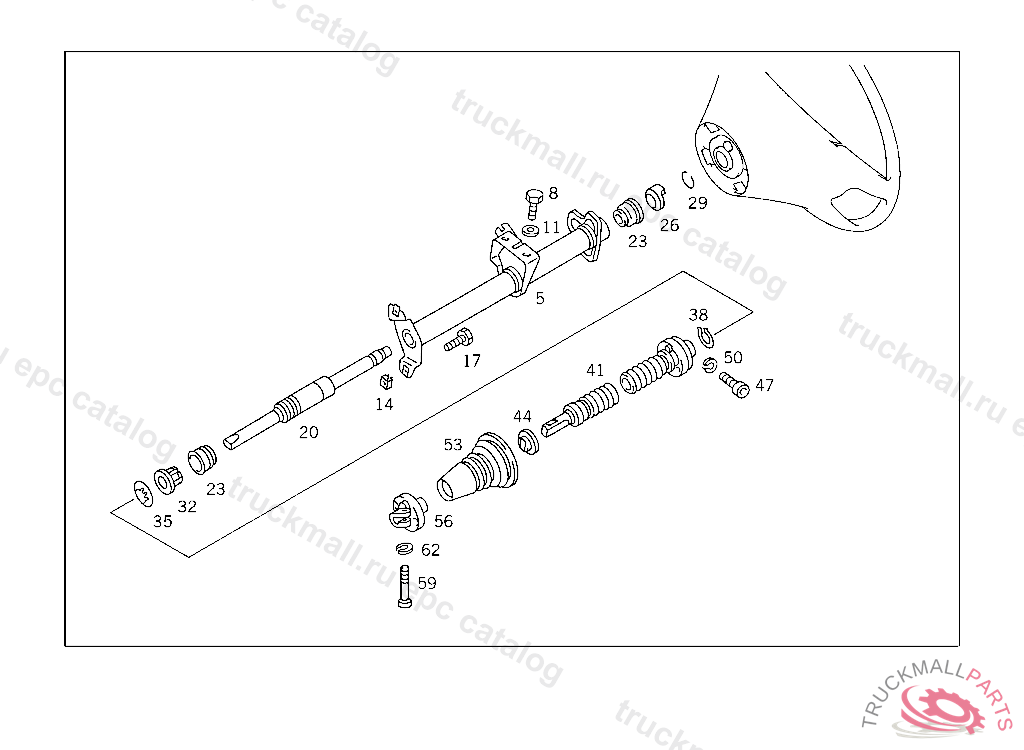

Поз.
Артикул
Описание
5
STEER. COLUMN JACKET TUBE
5
STEER. COLUMN JACKET TUBE
8
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
8
SCREW , Replaced By: N304017008016
11
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
14
NUT RETAINER HEATER UNIT TOP BRACKET TO BODY
17
SCREW PUMP TO BRACKET
17
SCREW , Replaced By: N304017006016
20
STEERING SHAFT , Replaced By: A1264601609
20
STEERING SHAFT TOP
23
BALL BEARING
26
RING
29
SNAP RING
32
CONICAL SLEEVE , 023 108180 033 045305 123 087739 130 110887
35
DISC SPRING , 023 108180 033 045305 123 087739 130 110887
38
LOCK RING
41
STEERING SHAFT BOTTOM
44
SEAL RING
47
SCREW. CAP BOLT SEAT MOUNTING M8X35
47
SCREW , Replaced By: N000912008204
50
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
53
BOOT
56
STEERING COUPLING
59
SCREW
59
SCREW , Replaced By: A2029902101
62
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
