Mercedes A1236300320 - Подшипник

560 SEL 126.039 SONDERSCHUTZ/SPECIAL EDITION

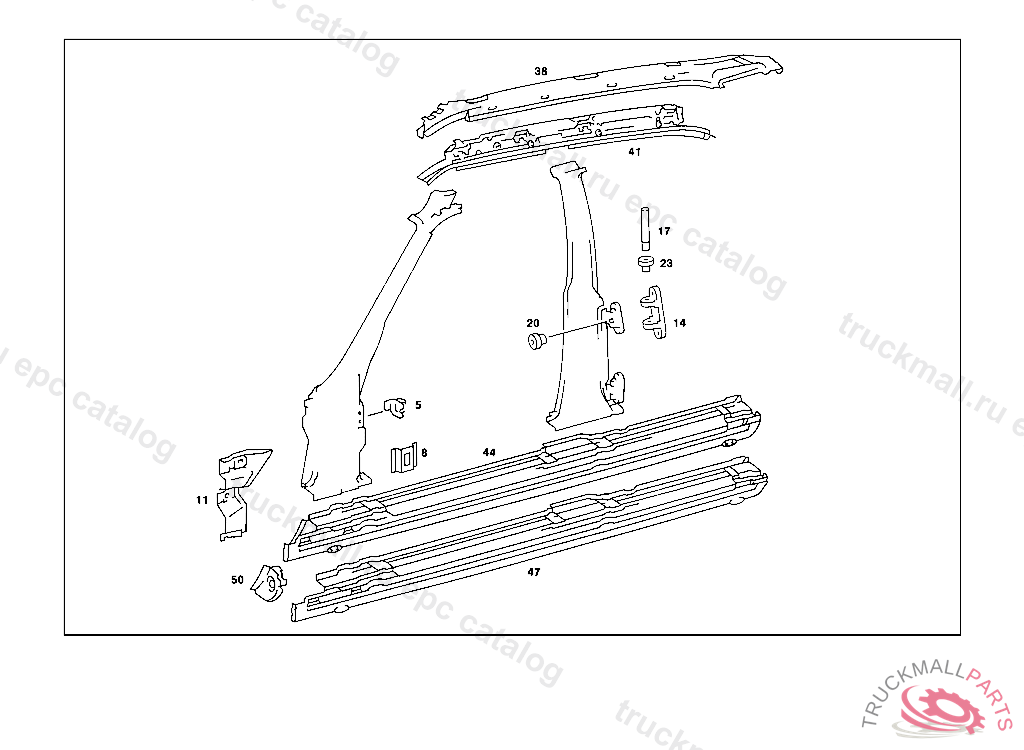

63 SIDE PANEL - 015 SIDE PANELS IL. 1

Поз.
Артикул
Описание
5
A1236300320
MOUNTING
8
A1266371214
BRACKET PANELLING TO FRONT PANEL PILLAR
11
A1266300153
CONNECTION BETWEEN WHEELHOUSE AND LEFT FRONT PANEL PILLAR, TO BE ADAPTED DURING ASSEMBLY (SEE SERVICE INFORMATION GROUP 88/20 DATED 22.12.81)
11
A1266300253
CONNECTION BETWEEN WHEELHOUSE AND RIGHT FRONT PANEL PILLAR
14
A1237330251
HINGE REAR DOOR,TOP RIGHT
14
A1237330151
HINGE REAR DOOR,TOP LEFT
17
A1237330052
HINGE PIN TOP
20
A0009970488
GREASE NIPPLE
23
A1087330017
BUSHING
38
A1266371247
ROOF RAIL OUTSIDE RIGHT
38
A1266371147
ROOF RAIL OUTSIDE LEFT
41
A1266300335
ROOF RAIL INSIDE LEFT
41
A1266300435
ROOF RAIL INSIDE RIGHT
44
A1266302140
SUPPORT BELOW FRONT AND REAR DOORS,LEFT
44
A1266302240
SUPPORT BELOW RIGHT FRONT AND REAR DOORS
47
A1266371335
SIDE MEMBER LEFT
47
A1266371435
SIDE MEMBER RIGHT
50
A1266300708
COVERING FRONT LEFT
50
A1266300008
COVERING FRONT RIGHT
50
A1266370180
END PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.A 491584, Replaced By: A1266300708
