Mercedes A1639940145 - Клипса

ML 55 AMG 163.174 FROM 09/2000

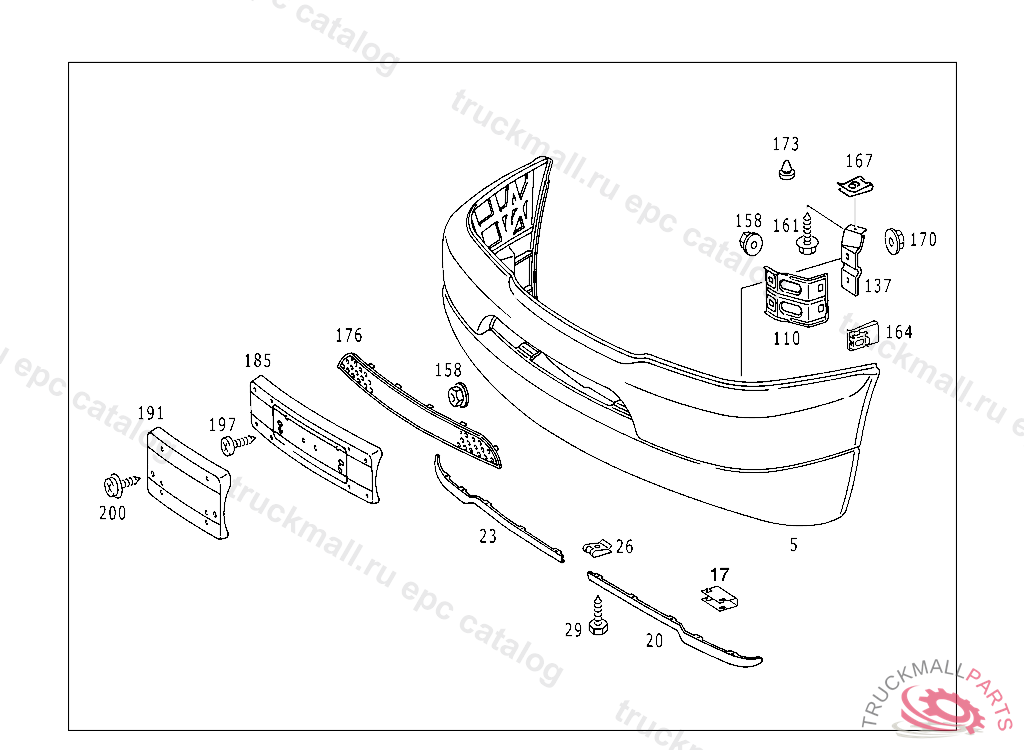

88 ATTACHMENT PARTS - 030 FRONT BUMPER IL. 1

Поз.
Артикул
Описание
17
A0089887578
CLIP , NOT USED
26
A1639940145
LOCK , A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801
29
N007976004304
SHEET METAL SCREW
158
A0039909851
NUT
164
A0019907891
NUT RETAINER BRACKET TO BUMPER
170
N910104006000
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
197
A2029900121
SCREW COVERING TO FRONT BUMPER
197
A1639900236
BOLT LICENSE-PLATE MOUNTING
200
A1639900236
BOLT LICENSE-PLATE MOUNTING
200
A2029900121
SCREW COVERING TO FRONT BUMPER
