Поз.
Артикул
Описание

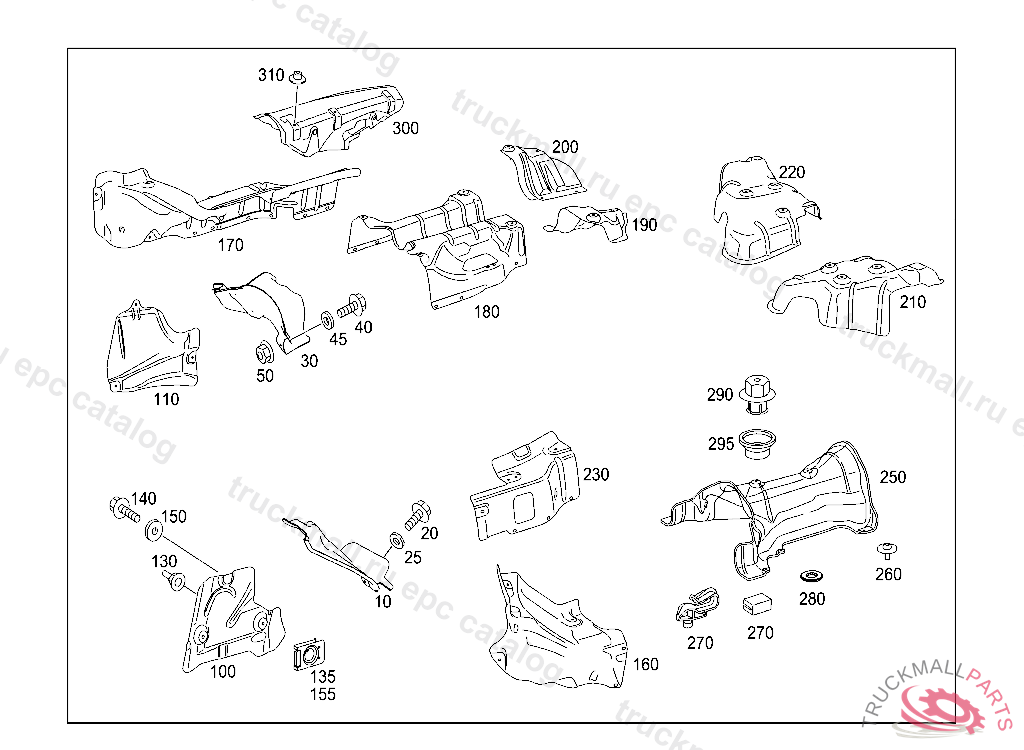

10
SCREENING PLATE SUBFRAME, RIGHT
25
WASHER COMPRESSED AIR LINE TO BRACKET
40
BOLT SHIELDING
45
WASHER COMPRESSED AIR LINE TO BRACKET
100
SCREENING LEFT FLOOR
110
SCREENING RIGHT FLOOR
110
SCREENING RIGHT FLOOR
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
135
LOCK NUT. SPRING NUT MOUNTING PARTS
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
140
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
SCREW PUMP TO BRACKET
150
WASHER COMPRESSED AIR LINE TO BRACKET
155
SPRING NUT , A 32101520070928808
155
LOCK NUT. SPRING NUT MOUNTING PARTS
160
SCREENING LEFT SIDE MEMBER
170
SCREENING MAIN FLOOR,ON THE RIGHT, A 32101520070928808
180
SHIELDING ABOVE CENTRAL MUFFLER, A 48000720081001809
180
SCREENING ABOVE CENTRAL MUFFLER
190
SCREENING CENTRAL LEFT FLOOR, A 53600720090709800
190
SHIELDING CENTRAL LEFT FLOOR, A 48000720081001809
200
SCREENING CENTRAL RIGHT FLOOR
210
SCREENING REAR END FLOOR,LEFT
220
SCREENING REAR FLOOR ASSEMBLY RIGHT
230
SCREENING REAR END FLOOR,LEFT, A 20500620061115
250
SCREENING PLATE BELOW FUEL TANK
260
TS BOLT ATTACHMENT SHIELD 5X12
270
HOOK ATTACHMENT SHIELD
300
INSULATION TRANSMISSION TUNNEL, OUTSIDE
310
PLASTIC NUT. NUT
