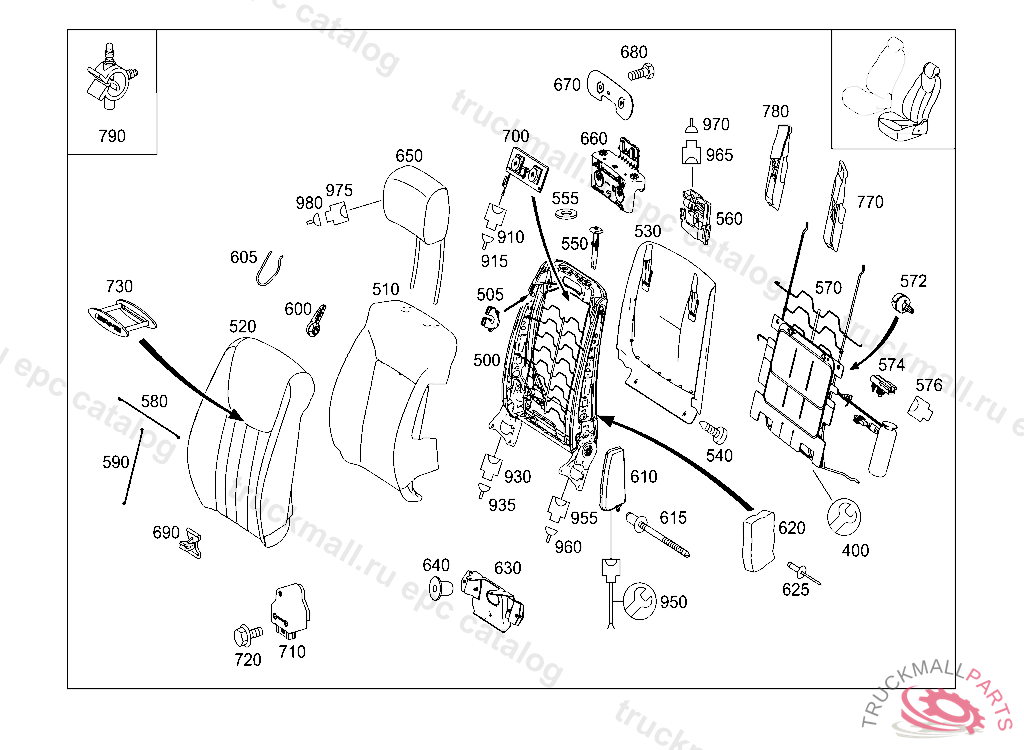

Поз.
Артикул
Описание
400
PARTS BOX (LUMBAR SUPPORT (FFO))
500
BACKREST FRAME ASSEMBLY , A 32101520070928808
500
BACKREST FRAME ASSEMBLY , A 32101520070928808
510
REST , A 44851420080709809
510
REST , A 44851420080709809
510
PAD FRONT SEAT BACKREST LEFT BACKREST, A 06859520070928808
510
REST LEFT BACKREST, A 06859520070928808
520
COVER LEATHER
520
COVER FRONT SEAT BACKREST LEATHER
520
COVER LEFT BACKREST
520
COVER FRONT SEAT BACKREST LEFT BACKREST
520
COVER "TWIN" LEATHER
520
COVER LEFT BACKREST
520
COVER "EXCLUSIV"LEATHER TRIM
520
COVER "EXCLUSIV"LEATHER TRIM
520
COVER LEATHER
520
COVER MB-TEX
520
COVER FRONT SEAT BACKREST LEATHER
520
COVER LEFT BACKREST
520
COVER FRONT SEAT BACKREST LEFT BACKREST
530
PANELING BACKREST FRAME
530
PANELING BACKREST FRAME
540
SCREW PANELLING TO FRONT SEAT BACKREST
550
GUIDE FOR HEADREST HEAD RESTRAINT SEAT RIGHT, RIGHT
550
GUIDE FOR HEADREST HEAD RESTRAINT SEAT LEFT, LEFT
550
GUIDE FOR HEADREST HEAD RESTRAINT SEAT RIGHT, LEFT
550
GUIDE FOR HEADREST HEAD RESTRAINT SEAT LEFT, LEFT
555
LOCK TAIL LAMP
560
ADJUSTER HEAD RESTRAINT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
570
SEAT ADAPTER IN BACKREST
570
ADJUSTABLE INSERT LEFT, A 32101520070928808
570
TRUSS BACKREST, RIGHT, Replaced By: A0009105202
572
CLUTCH HOSE TO INSERT, A 32101520070928808
574
BRACKET
576
HOUSING TAXI OR PREINSTALLATION FOR RENTAL CAR 2-PIN SLK2.8
580
MOUNTING BRACKET TRANSVERSAL TACKING, A 48000720081001809
590
MOUNTING BRACKET LONGITUDINAL STAPLE UPHOLSTERY, CENTER RIGHT SEAT
610
AIR BAG TO BACKREST FRAME
615
RIVET
620
SEAT ADAPTER LEFT
620
SEAT ADAPTER RIGHT
625
RIVET
650
HEADREST LEFT SEAT
650
HEAD RESTRAINT LEFT SEAT
650
HEAD RESTRAINT VELOURS "EXCLUSIVE/ALCANTARA"
650
HEADREST "TWIN" LEATHER
650
HEADREST LEATHER
650
HEADREST "EXCLUSIV"LEATHER TRIM
650
HEAD RESTRAINT LEFT SEAT
650
HEAD RESTRAINT
650
HEAD RESTRAINT LEATHER
650
HEAD RESTRAINT LEATHER
650
HEAD RESTRAINT LEATHER
650
HEAD RESTRAINT LEATHER
650
HEADREST ALCANTARA
650
HEAD RESTRAINT LEATHER
650
HEAD RESTRAINT LEFT SEAT
650
HEAD RESTRAINT LEATHER
660
BRACKET MONITOR AT LEFT SEAT, A 06859520070928808, Replaced By: A0009190000
670
REINFORCEMENT MONITOR AT RIGHT SEAT
680
BOLT BACKREST SHELL TO BACKREST FRAME 5X18
690
CLIP SEAT COVER MOUNTING,TRANSVERSE
700
FAN SEAT VENTILATION
700
ELECTRIC MOTOR SEAT VENTILATION, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 75022420110604, Replaced By: A1649060015
710
CONTROL UNIT SEAT VENTILATION
720
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
730
PLATE AMG BADGE
770
HOOK LEFT, RIGHT SEAT
780
HOOK RIGHT, RIGHT SEAT
790
CLAMP. EXTENDABLE SPACER BREATHER LINE
910
SOCKET HOUSING RIGHT REAR OUTER SURROUND SPEAKER 2-PIN MQS,H4/57
915
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
930
PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
935
CONTACT SPRINGTO A 038 545 76 28
950
REP.SET CONTACT WINDOWBAG SQUIB, REAR 2-PIN 0.5MM2,R12/22 R12/23
955
PLUG HOUSING SWITCH TO CLUTCH PEDAL 2-PIN JPT2.8
960
FLAT PIN BUSHING
965
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
970
REP.SET CONTACT0.75 MM2 MQS, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
970
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
975
HOUSING CRASH ACTIVE HEAD RESTRAINT 2-PIN MQS,Y24/12, Y24/13
980
PLUG PINX 209, 0.75 MM2
