Mercedes A1403010374 - Болт

SLK 230 KOMPRESSOR 170.447

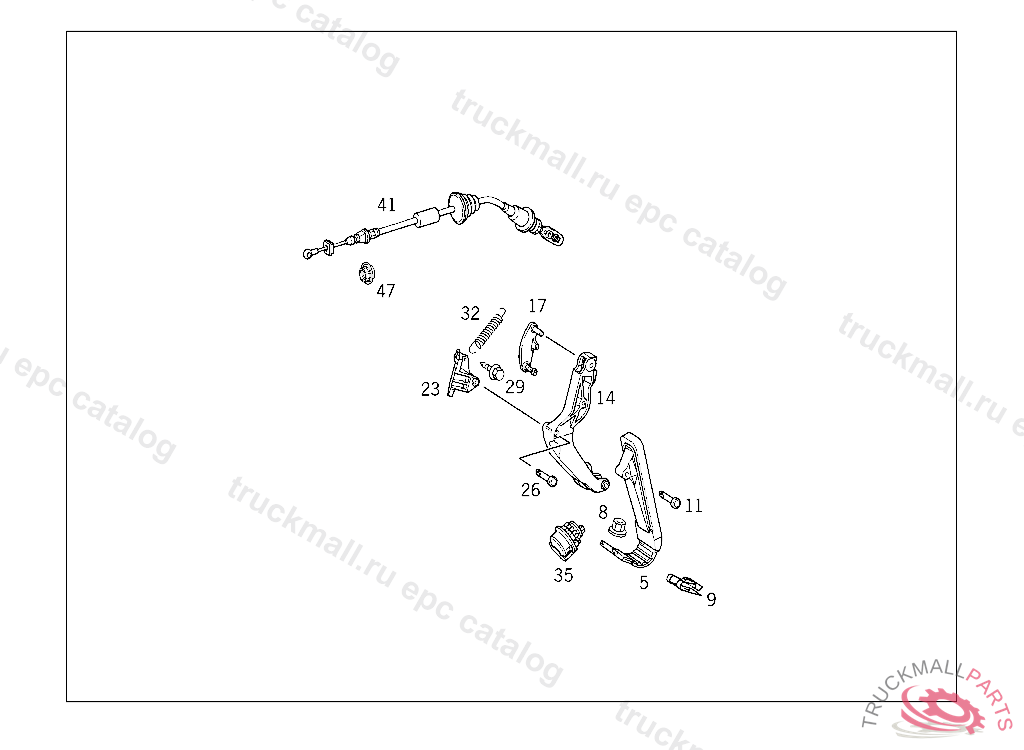

30 CONTROL - 015 CONTROL IL. 1

Поз.
Артикул
Описание
5
A1703000004
ACCELERATOR PEDAL
8
A2103010072
NUT ACCELERATOR PEDAL TO FIRE WALL
9
A0029945545
LOCK
11
A1403010374
PIN ACCELERATOR PEDAL TO LEVER
14
A1703010120
LEVER ACCELERATOR PEDAL
14
A1703010320
LEVER ACCELERATOR PEDAL
17
A1243011320
LEVER BOWDEN CABLE TO ACCELERATOR PEDAL LEVER
17
A1403001725
LEVER
17
A1403010620
LEVER , Replaced By: A1403001725
23
A2103010018
BEARING ACCELERATOR PEDAL BEARING
26
A2103010174
PIN PEDAL LEVER TO BEARING,A 261665, J 036134
29
N914031006208
COMBINATION BOLT. TAPPING SCREW BEARING TO FIRE WALL
32
A1409931910
SPRING ACCELERATOR PEDAL
35
A1243000141
STOP ACCELERATOR PEDAL,A 907056
41
A1703000030
WIRE CABLE
41
A1703000330
WIRE CABLE
41
A1703000230
WIRE CABLE
41
A1703000130
WIRE CABLE
47
A2013010285
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
