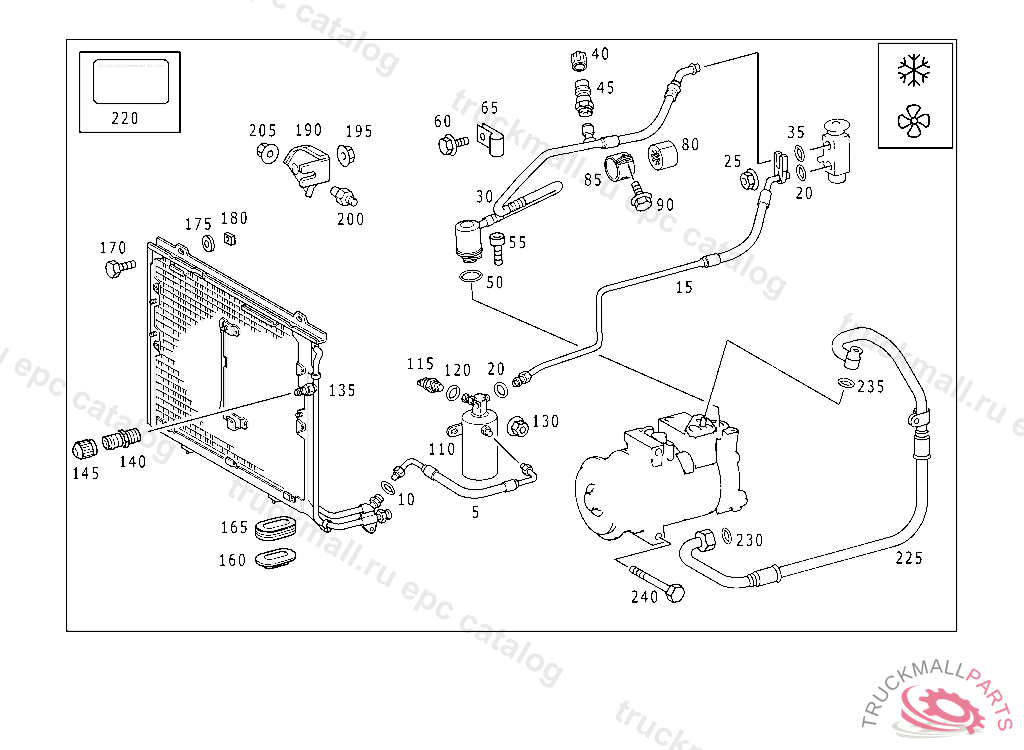

Поз.
Артикул
Описание
5
PIPE LINE. PIPELINE FROM CONDENSER TO LIQUID TANK
10
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
15
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
15
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
20
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
25
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
30
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR PIPE LINE
30
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR PIPE LINE
35
O-RING HOSE TO EXPANSION VALVE 17X2
40
CAP , NOT USED
45
VALVE
50
SEAL RING
55
SCREW BRACKET TO INTAKE MANIFOLD
60
SCREW LEVER TO ENGINE CONTROL SHAFT
65
CLAMP AT BRACKET ON SHOCK ABSORBER CONSOLE
80
CLAMPING PIECE
85
CLAMP
90
SCREW LEVER TO ENGINE CONTROL SHAFT
110
TANK
115
SENSOR AT LIQUID TANK
120
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
130
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
135
CONDENSER
140
VALVETO 140 830 05 70
140
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0018306384
145
CAP
160
BUSHING CONDENSER TO RADIATOR
165
GROMMET CONDENSER TO RADIATOR
170
SCREW CAB FLOOR COVERING M 6X25
175
WASHER COMPRESSED AIR LINE TO BRACKET
175
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
180
NUT CONDENSER TO RADIATOR
190
BRACKET RADIATOR REST CROSS MEMBER
195
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
200
BUFFER OIL TANK
205
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
220
GUIDE SIGN REFRIGERANT R 134 A
220
GUIDE SIGN , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2028176920
225
SUCTION LINE DELIVERY LINE
230
SEAL RING HOSE TO CONDENSER 14 MM
235
SEAL RING FROM LIQUID TANK TO T-FITTING
240
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
