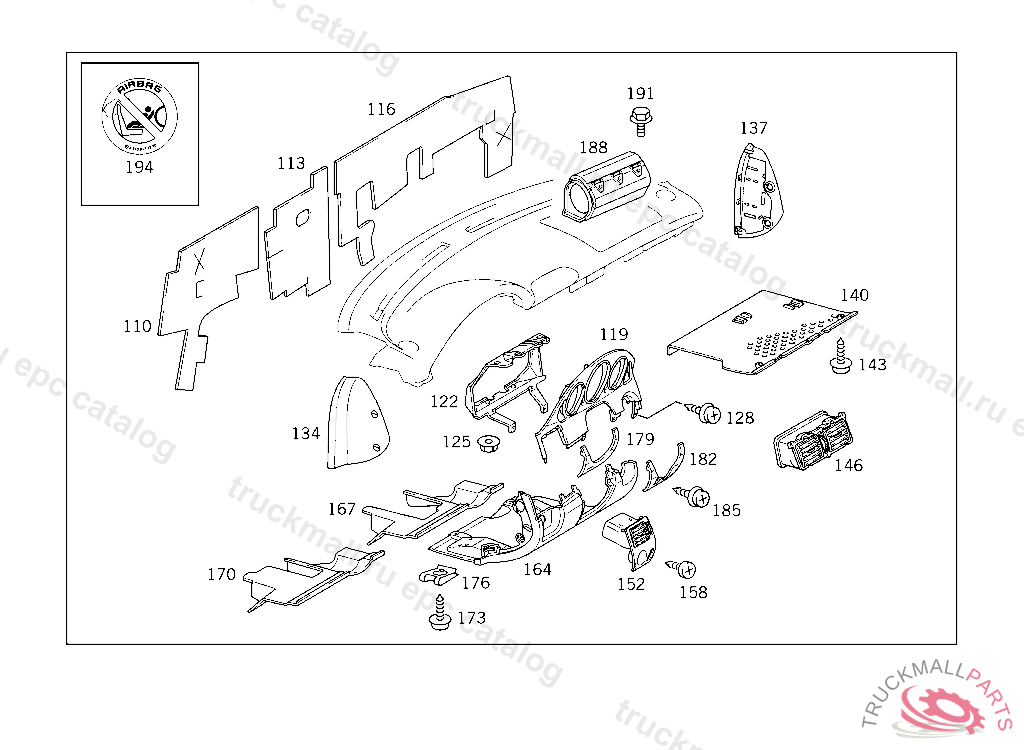

Поз.
Артикул
Описание
110
INSULATION ON INSTRUMENT PANEL LINKS,F 19513
110
INSULATION ON INSTRUMENT PANEL LINKS,F 19512
113
INSULATION AT INSTRUMENT PANEL
113
INSULATION AT INSTRUMENT PANEL
116
INSULATION ON INSTRUMENT PANEL RECHTS
119
COVERING. COVER
119
COVERING. COVER
122
FRAME
125
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
125
NUT , Replaced By: N910112006001
125
NUT , Replaced By: N913023006001
128
SHEET METAL SCREW BRACKET TO FIRE WALL
134
COVER INSTRUMENT PANEL OUTSIDE LEFT
137
COVER INSTRUMENT PANEL OUTSIDE RIGHT
140
COVERING LOWER PART,RIGHT,CO-DRIVER'S SIDE
140
COVERING. COVER LOWER PART,LEFT,CO-DRIVER'S SIDE
143
SHEET METAL SCREW BRACKET TO FIRE WALL
146
NOZZLE CENTRAL, UP TO MODEL YEAR 06/99 EXEPT ON VEHICULES WITH CODE 800
152
NOZZLE RIGHT
152
NOZZLE LEFT
158
SHEET METAL SCREW , 013598
164
INSTRUMENT PANEL BELOW INSTRUMENT PANEL,LEFT
164
INSTRUMENT PANEL BELOW INSTRUMENT PANEL, RIGHT
167
COVERING , Replaced By: A1706804236
167
COVERING BELOW INSTRUMENT PANEL,LEFT
167
COVERING BELOW INSTRUMENT PANEL,LEFT
170
COVERING BELOW INSTRUMENT PANEL, RIGHT
173
SHEET METAL SCREW BRACKET TO FIRE WALL
176
LOCK FUEL LINE
179
ESCUTCHEON , NO.7211 INO.5213 I....... I....... INO.1424 INO.6305 INO.3475 I
179
ESCUTCHEON , NO.7211 INO.5213 I....... I....... INO.1424 INO.6305 INO.3475 I
182
ESCUTCHEONVERSTELLBARE LENKUNG, NO.7211 INO.5213 I....... I....... INO.1424 INO.6305 INO.3475 I
182
ESCUTCHEONVERSTELLBARE LENKUNG, NO.7211 INO.5213 I....... I....... INO.1424 INO.6305 INO.3475 I
185
SHEET METAL SCREW BRACKET TO FIRE WALL
188
HOLDING FIXTURE (AIRBAG)
188
AIRBAG UNIT
188
AIRBAG UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 515189, X 003511, Replaced By: A2108600805
191
COMBINATION BOLT , Replaced By: N304017006018, +001N006902006102
191
SCREW COVER PLATE TO COVER PLATE M 6 X 12
194
GUMMED LABEL CO-DRIVER'S SIDE
999
HINGE GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
999
INSTRUMENT PANEL , Replaced By: A1706800487, +001B66920101
999
FASTENER , NOT USED
