Главная
Mercedes
CAR
ML 350
166.058
68 PANELLING

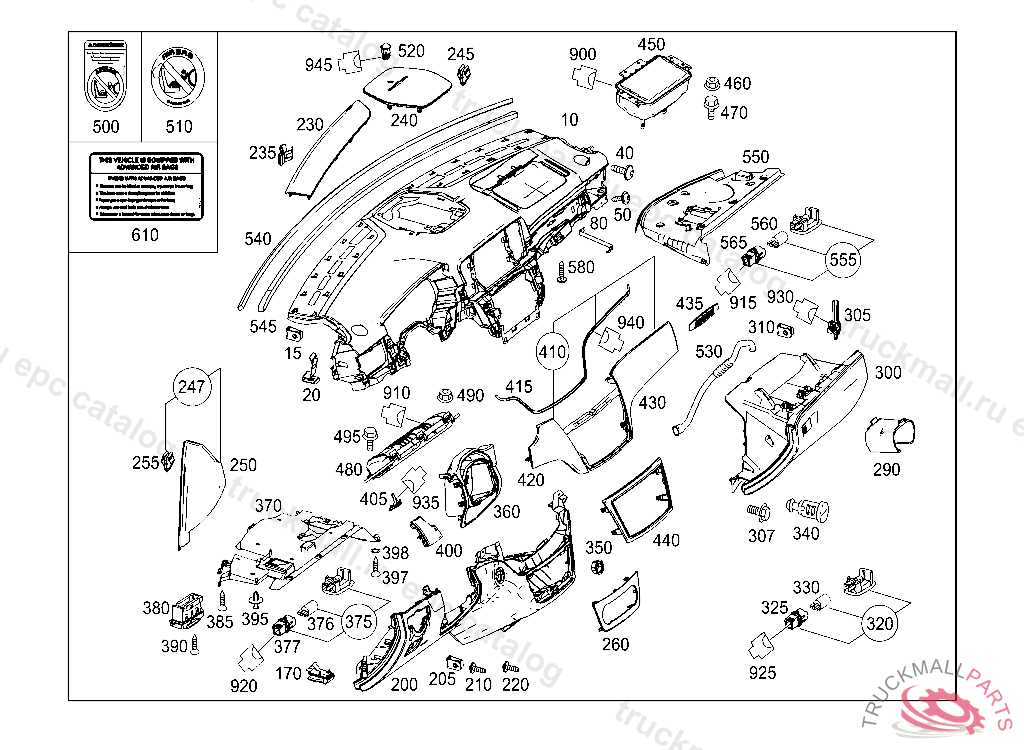

193 INSTRUMENT PANEL AND GLOVES COMPARTMENT BOX WITH PASSENGER AIR BAG

Mercedes A1666800087 - INSTRUMENT-PANEL

ML 350 166.058

68 PANELLING - 193 INSTRUMENT PANEL AND GLOVES COMPARTMENT BOX WITH PASSENGER AIR BAG

Поз.
Артикул
Описание
10
A1666800987
INSTRUMENT PANEL
10
A1666800087
INSTRUMENT PANEL
10
A1666800487
INSTRUMENT PANEL
10
A1666807800
INSTRUMENT PANEL
10
A1666800188
INSTRUMENT PANEL
10
A1666801187
INSTRUMENT PANEL
10
A1666800787
INSTRUMENT PANEL
10
A1666800088
INSTRUMENT PANEL
10
A1666808400
INSTRUMENT PANEL
10
A1666801387
INSTRUMENT PANEL
15
A2029940245
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
20
A0029911370
CLIP BRACKET MOUNTING
40
N000000006731
HEXALOBULAR BOLT FASTENING BRACKET LEFT M6X20
50
N000000000888
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
80
A1666890114
BRACKET MOUNTING OF INSTRUMENT PANEL
170
A2048800120
RELEASE HANDLE ENGINE HOOD RELEASE CABLE
170
A2048800020
RELEASE HANDLE FOR ENGINE HOOD CABLE, CLIPPED, Replaced By: A2048800120
200
A1666801287
INSTRUMENT PANEL BOTTOM, 9E38 X06/X11/X27QFT166A3025 BLACK
200
A1666801487
INSTRUMENT PANEL BOTTOM, 9E38 X06/X11/X27QFT166A3025 BLACK
200
A1666800387
INSTRUMENT PANEL BOTTOM
200
A1666801687
INSTRUMENT PANEL BOTTOM
200
A1666800887
INSTRUMENT PANEL BOTTOM
200
A1666801787
INSTRUMENT PANEL BOTTOM
205
A2029940245
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
210
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
210
N000000000927
TAPPING SCREW LIGHTING UNIT TO LATERAL STIFFENING 4.8X25
210
N000000006731
HEXALOBULAR BOLT FASTENING BRACKET LEFT M6X20
220
N000000000888
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
230
A1666809707
COVER GRILLE LEFT
230
A1666805907
COVER GRILLE LEFT
230
A1666806007
COVER GRILLE RIGHT
230
A1666809807
COVER GRILLE RIGHT
235
A1696890022
CLIP AT COVERING
240
A1666801418
COVER GRILLE INSTRUMENT PANEL,CENTER
240
A1666800018
COVER GRILLE INSTRUMENT PANEL,CENTER
240
A1666800318
COVER GRILLE INSTRUMENT PANEL,CENTER
240
A1666801318
COVER GRILLE INSTRUMENT PANEL,CENTER
245
A2039882878
CLIP PANELLING
247
A1666809400
COVER MOLDING LATERAL RIGHT
247
A1666809300
COVER MOLDING LATERAL RIGHT
250
A1666800407
COVER RIGHT
250
A1666800307
COVER LEFT
255
A2039882878
CLIP PANELLING
260
A1666801207
COVER OPERATING UNIT, HEATER AND AIR COND.
290
A2216890614
BRACKET REMOTE CONTROL, A 02295520080930809
300
A1666800391
GLOVE BOX
300
A1666805901
GLOVE BOX
300
A1666800891
GLOVE BOX
300
A1666805801
GLOVE BOX
300
A1666800991
GLOVE BOX
300
A1666800491
GLOVE BOX
300
A1666801091
GLOVE BOX , 9E38 X06/X11/X27QFT166A3240 BLACK
300
A1666801291
GLOVE BOX , 9E38 X06/X11/X27QFT166A3240 BLACK
300
A1666806001
GLOVE BOX
300
A1666800791
GLOVE BOX
300
A1666805701
GLOVE BOX
300
A1666800091
GLOVE BOX
300
A1666801191
GLOVE BOX , 9E38 X06/X11/X27QFT166A3240 BLACK
305
A1669880103
ROTATIONAL DAMPER GLOVE COMPARTMENT LID
305
A1669880203
ROTATIONAL DAMPER GLOVE COMPARTMENT LID
305
A1669880003
ROTATIONAL DAMPER GLOVE COMPARTMENT
307
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
310
A2029940245
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
320
A2218200401
INTERIOR LAMP UNDER SUN VISOR, J 42086420061222
325
A2218250382
LAMP HOLDER INTERIOR LAMP 12V-5W, J 42086420061222
330
N000000000853
BULBTO A 6955407048/7148,3825400311/0411
340
A2036800384
TUMBLER GLOVE COMPARTMENT, THEFT-RELEVANT PART
350
A1666800065
TRIM RING STEERING LOCK, 2A17QFT166A3260 SILVER SHADOW
360
A1666806907
COVER MOLDING
360
A1666807007
COVER MOLDING
360
A1666803407
COVER
360
A1666800707
COVER
370
A1666800507
COVER, FOOTWELL BOTTOM LEFT
370
A1666803607
COVER, FOOTWELL BOTTOM RIGHT
375
A2218200401
INTERIOR LAMP UNDER SUN VISOR, J 42086420061222
376
A2218250382
LAMP HOLDER INTERIOR LAMP 12V-5W, J 42086420061222
377
N000000000853
BULBTO A 6955407048/7148,3825400311/0411
380
A2025402373
BRACKET DIAGNOSIS PLUG SOCKET,V 202043
385
A0019845629
SCREW SOCKET MOUNTING
390
N000000000888
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
395
A1639900292
EXPANSION RIVET COVERING TO FLOOR
397
A0019846429
SCREW W COLLAR A DRIVEM5X35
398
N000000005932
WASHER FRAME-TYPE INTEGRAL SUPPORT,LEFT
400
A1666805671
ORNAMENTAL TRIM RIGHT
400
A1666801771
ORNAMENTAL TRIM LEFT
400
A1666807171
ORNAMENTAL TRIM RIGHT
400
A1666803571
ORNAMENTAL TRIM LEFT
400
A1666809471
ORNAMENTAL TRIM RIGHT
400
A1666801971
ORNAMENTAL TRIM LEFT
400
A1666806871
ORNAMENTAL TRIM RIGHT
400
A1666806271
ORNAMENTAL TRIM RIGHT
400
A1666802371
ORNAMENTAL TRIM LEFT
400
A1666801371
ORNAMENTAL TRIM LEFT
400
A1666807471
ORNAMENTAL TRIM RIGHT
400
A1666809171
ORNAMENTAL TRIM LEFT
400
A1666800571
ORNAMENTAL TRIM LEFT
400
A1666805071
ORNAMENTAL TRIM RIGHT
400
A1666806571
ORNAMENTAL TRIM RIGHT
400
A1666804771
ORNAMENTAL TRIM RIGHT
400
A1666800171
ORNAMENTAL TRIM LEFT
400
A1666800771
ORNAMENTAL TRIM LEFT
400
A1666805371
ORNAMENTAL TRIM RIGHT
400
A1666801071
ORNAMENTAL TRIM LEFT
400
A1666809071
ORNAMENTAL TRIM RIGHT
400
A1666805971
ORNAMENTAL TRIM RIGHT
400
A1666804271
ORNAMENTAL TRIM LEFT
400
A1666808571
ORNAMENTAL TRIM LEFT
405
A1668252510
OPTICAL FIBER IN INSTRUMENT PANEL AT LEFT
410
A1666806771
ORNAMENTAL TRIM LEFT
410
A1666809671
ORNAMENTAL TRIM LEFT
410
A1666808271
ORNAMENTAL TRIM RIGHT
410
A1666806171
ORNAMENTAL TRIM LEFT
410
A1666802471
ORNAMENTAL TRIM RIGHT
410
A1666809871
ORNAMENTAL TRIM RIGHT
410
A1666808171
ORNAMENTAL TRIM LEFT
410
A1666804371
ORNAMENTAL TRIM RIGHT
410
A1666808771
ORNAMENTAL TRIM LEFT
410
A1666808371
ORNAMENTAL TRIM LEFT
410
A1666802071
ORNAMENTAL TRIM RIGHT
410
A1666801471
ORNAMENTAL TRIM RIGHT
410
A1666801871
ORNAMENTAL TRIM RIGHT
410
A1666805871
ORNAMENTAL TRIM LEFT
410
A1666808471
ORNAMENTAL TRIM RIGHT
410
A1666808871
ORNAMENTAL TRIM RIGHT
410
A1666806471
ORNAMENTAL TRIM LEFT
410
A1666807371
ORNAMENTAL TRIM LEFT
415
A1668250210
OPTICAL FIBER INSTRUMENT PANEL,CENTER
420
A1666805171
ORNAMENTAL TRIM CENTRAL
420
A1666800971
ORNAMENTAL TRIM CENTRAL
420
A1666808671
ORNAMENTAL TRIM CENTRAL
420
A1666807271
ORNAMENTAL TRIM CENTRAL
420
A1666805471
ORNAMENTAL TRIM CENTRAL
420
A1666803771
ORNAMENTAL TRIM CENTRAL
420
A1666801171
ORNAMENTAL TRIM CENTRAL
420
A1666808071
ORNAMENTAL TRIM CENTRAL
420
A1666800371
ORNAMENTAL TRIM CENTRAL
420
A1666800471
ORNAMENTAL TRIM CENTRAL
420
A1666804871
ORNAMENTAL TRIM CENTRAL
420
A1666805771
ORNAMENTAL TRIM CENTRAL
430
A1666805271
ORNAMENTAL TRIM LEFT
430
A1666807071
ORNAMENTAL TRIM LEFT
430
A1666804671
ORNAMENTAL TRIM LEFT
430
A1666804971
ORNAMENTAL TRIM LEFT
430
A1666809571
ORNAMENTAL TRIM LEFT
430
A1666805571
ORNAMENTAL TRIM LEFT
430
A1666809271
ORNAMENTAL TRIM RIGHT
430
A1666803871
ORNAMENTAL TRIM RIGHT
430
A1666809771
ORNAMENTAL TRIM RIGHT
430
A1666809371
ORNAMENTAL TRIM LEFT
430
A1666800671
ORNAMENTAL TRIM RIGHT
430
A1666801271
ORNAMENTAL TRIM RIGHT
430
A1666800871
ORNAMENTAL TRIM RIGHT
430
A1666800271
ORNAMENTAL TRIM RIGHT
435
A1666800074
SYMBOL STRIP
440
A1666800317
COVER AUDIO/COMAND CONTROL PANEL
440
A1666801917
COVER AUDIO/COMAND CONTROL PANEL
450
A1668602402
PASSENGER AIRBAG , M 20140331 L 20140331 A 20140326
450
A1668600302
PASSENGER AIRBAG , M 20140331 L 20140331 A 20140326
460
N000000003477
NUT BRACKET TO BODY SHELL M6
470
A2119840329
BOLT HINGE TO TRUNK LID M6X16
470
N000000006731
HEXALOBULAR BOLT FASTENING BRACKET LEFT M6X20
480
A1668600102
KNEE AIRBAG
490
A0019905850
NUT EXPANSION TANK TO WHEELHOUSE
495
N000000002179
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
500
A2048176020
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048171020
GUIDE SIGN IN JAPANESE, ENGLISH
500
A2048172220
GUIDE SIGN IN PORTUGUESE, ENGLISH
500
A2048170220
GUIDE SIGN IN GERMAN, ENGLISH
500
A2048172020
GUIDE SIGN IN DUTCH, ENGLISH
500
A2048170320
GUIDE SIGN IN FINNISH, ENGLISH
500
A2048170420
GUIDE SIGN IN DANISH, ENGLISH
500
A2048175920
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048170920
GUIDE SIGN IN ITALIAN, ENGLISH
500
A2048171620
GUIDE SIGN IN HUNGARIAN / ENGLISH
500
A2048171720
GUIDE SIGN ENGLISH
500
A2048175320
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048172820
STICKER NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048172320
GUIDE SIGN IN PORTUGUESE/BRAZILIAN, ENGLISH
500
A2048171120
GUIDE SIGN IN MALAYSIAN, ENGLISH
500
A2048172120
GUIDE SIGN IN POLISH, ENGLISH
500
A2048170120
GUIDE SIGN ARABIC/ENGLISH/FRENCH
500
A2048175520
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048171520
GUIDE SIGN IN CZECH, ENGLISH
500
A2048175420
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048171920
GUIDE SIGN IN SWEDISH, ENGLISH
500
A2048172420
GUIDE SIGN IN KOREAN, ENGLISH
500
A2048170520
GUIDE SIGN IN CHINESE, ENGLISH
500
A2048171320
GUIDE SIGN IN SPANISH, ENGLISH
500
A2048170620
GUIDE SIGN IN FRENCH, ENGLISH
500
A2048175820
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048170720
GUIDE SIGN IN GREEK, ENGLISH
500
A2048175620
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
A2048171820
GUIDE SIGN IN SLOVAKIAN, ENGLISH
500
A2048170820
GUIDE SIGN IN INDONESIAN, ENGLISH
500
A2048171220
GUIDE SIGN IN RUSSIAN, ENGLISH
500
A2048171420
GUIDE SIGN IN TURKEY/ENGLISH
500
A2048175720
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
510
A2108171220
GUMMED LABEL CO-DRIVER'S SIDE
520
A2049057501
SUN SENSOR AT INSTRUMENT PANEL
530
A1668310245
AIR DUCT GLOVE COMPARTMENT
