Главная
›
Mercedes
›
CAR
›
C 280
›
202.089
›
27 AUTOMATIC TRANSMISSION
›

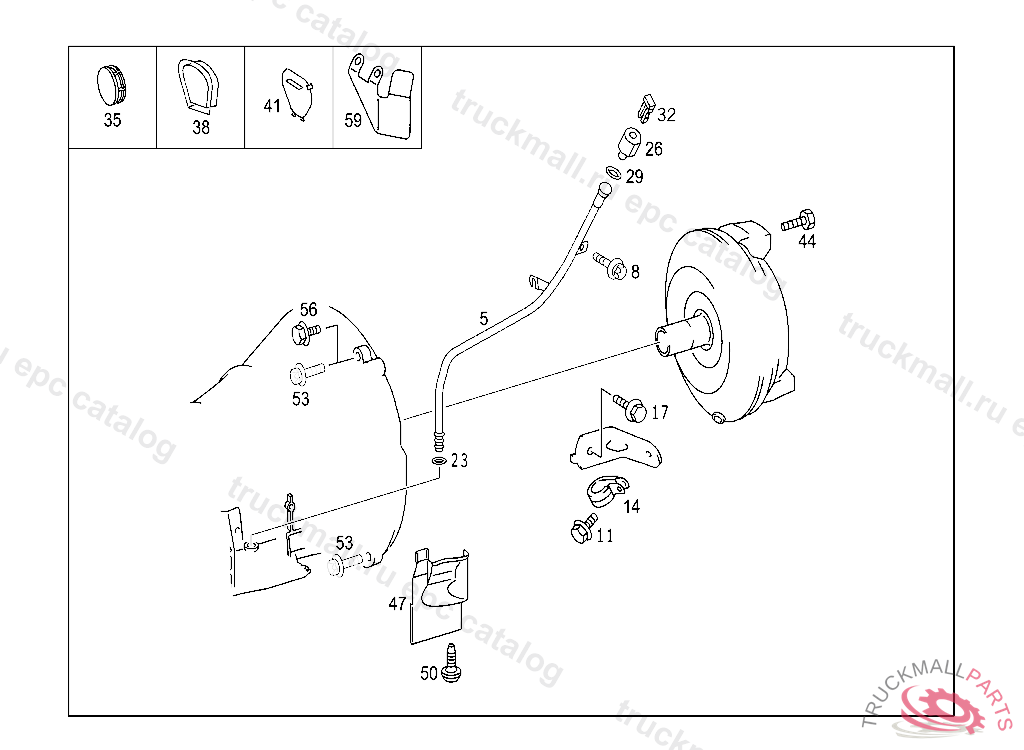

230 DETACHABLE TRANSMISSION COMPONENTS,OIL FILLER PIPE,C-CLASS
Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП
C 280 202.089
27 AUTOMATIC TRANSMISSION - 230 DETACHABLE TRANSMISSION COMPONENTS,OIL FILLER PIPE,C-CLASS
Поз.
Артикул
Описание
5
A2022700784
OIL FILLER PIPE
11
N910106006004
HEXAGON HEAD BOLT
14
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
17
N910106006004
HEXAGON HEAD BOLT
23
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
26
A1402700091
COVER OIL FILLER PIPE
29
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
32
A1409910055
DOWEL PIN OIL FILLER PIPE
41
A1120140133
COVER MOUNTING HOLE IN OIL PAN
44
A1249902201
SCREWM 8X18
47
A1402710288
COVER TRANSMISSION CASE AND OIL PAN
50
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
53
N910143010000
SCREW PLATE TO FRAME M 10X45
59
A1121550026
PROTECTIVE PLATE TRANSMISSION TO CRANKCASE
