Mercedes A2033201072 - ПРОВОД

C 240 4MATIC 203.281

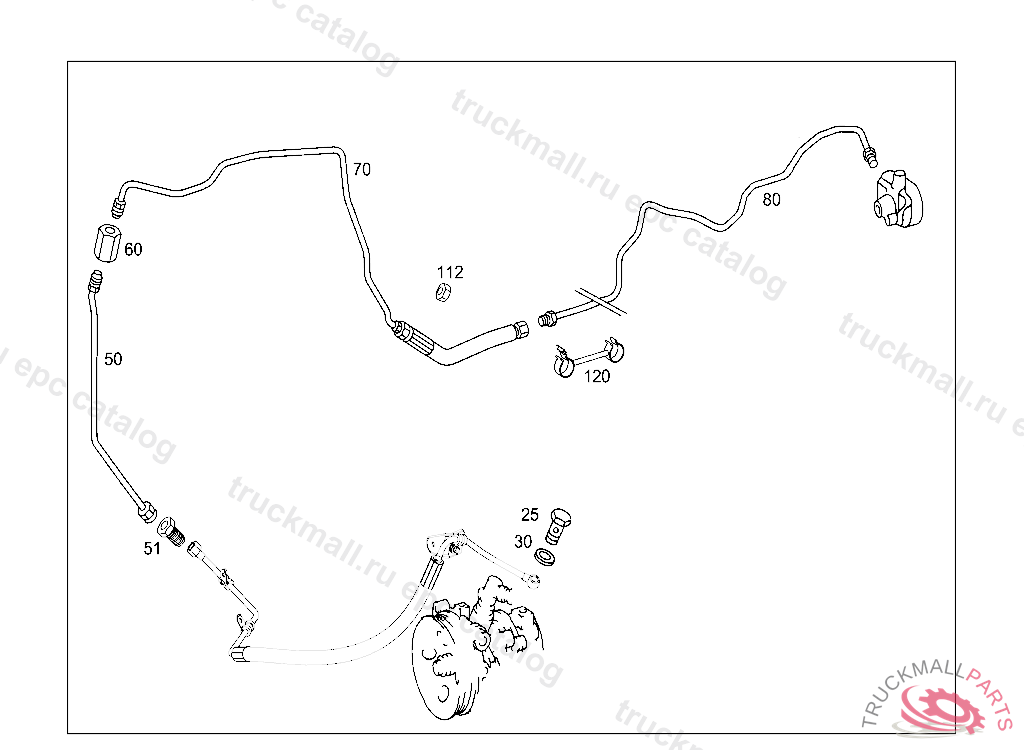

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 265 REAR LINE ARRANGEMENT IN CASE OF SELF-LEVELLING DEVICE IL. 1

Поз.
Артикул
Описание
25
N915036008100
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
30
N007603012111
SEAL RING LINE CONNECTION
50
A2033202972
LINE HIGH PRESSURE HOSE
51
A0004280472
RETAINING SCREW. NUT
51
A1269970134
RETAINING SCREWM10X1
60
A1233270088
COUPLING PIECE
70
A2033200572
LINE HIGH-PRESSURE EXP. AND CONNECTING HOSE TO LONGITUDINAL MEMBER, NO LONGER AVAILABLE
80
A2033200772
LINE FROM HEIGHT CONTROL VALVE TO DISTRIBUTOR
120
A2033201072
LINE FROM DISTRIBUTOR TO RIGHT REAR SPRING LOAD ACCUMULATOR
120
A2033200543
BRACKET
