Поз.
Артикул
Описание

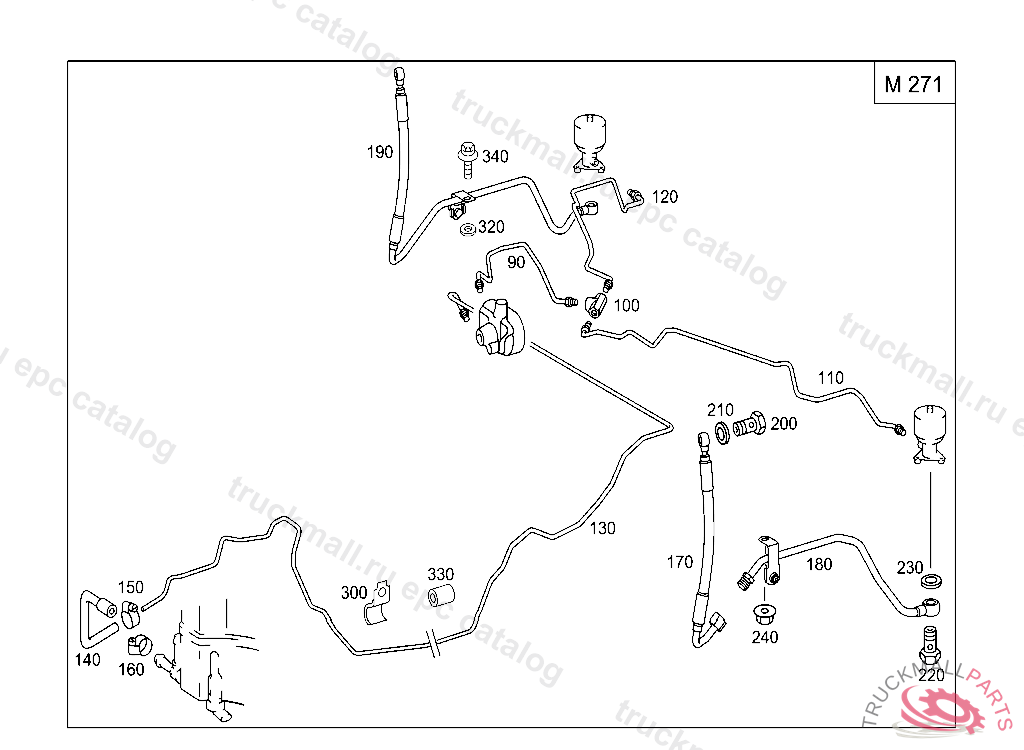

90
LINE FROM HEIGHT CONTROL VALVE TO DISTRIBUTOR
100
DISTRIBUTOR TRIPLE
110
LINE FROM DISTRIBUTOR TO LEFT REAR SPRING LOAD ACCUMULATOR
120
LINE FROM DISTRIBUTOR TO RIGHT REAR SPRING LOAD ACCUMULATOR
120
BRACKET
130
LINE HEIGHT REGULATOR TO OIL TANK
140
HOSE OIL TANK
150
CLAMP CHECK VALVE,K 169122
160
CLAMP , Replaced By: N916002012100
170
HOSE FROM LEFT REAR SPRING LOAD ACCUMULATOR TO DAMPING VALVE AND HYDROPN.SPR.LEG
180
HOSE FROM LEFT REAR SPRING LOAD ACCUMULATOR TO DAMPING VALVE AND HYDROPN.SPR.LEG
190
HOSE FROM LEFT REAR SPRING LOAD ACCUMULATOR TO DAMPING VALVE AND HYDROPN.SPR.LEG
200
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
210
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
210
SEAL RING LINE CONNECTION
220
HOLLOW SCREW CONNECTING HOSE TO SPRING LOAD ACCUMULATOR
230
SEAL RINGTO 006 997 00 72
240
HEXAGON NUT W COLLAR BRACKET MOUNTING
300
CLAMP FORKED SUPPORT,TOP
320
NUT COVERING TO CAB FIRE WALL
330
HOSE , Replaced By: A0009978682
340
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
