Поз.
Артикул
Описание

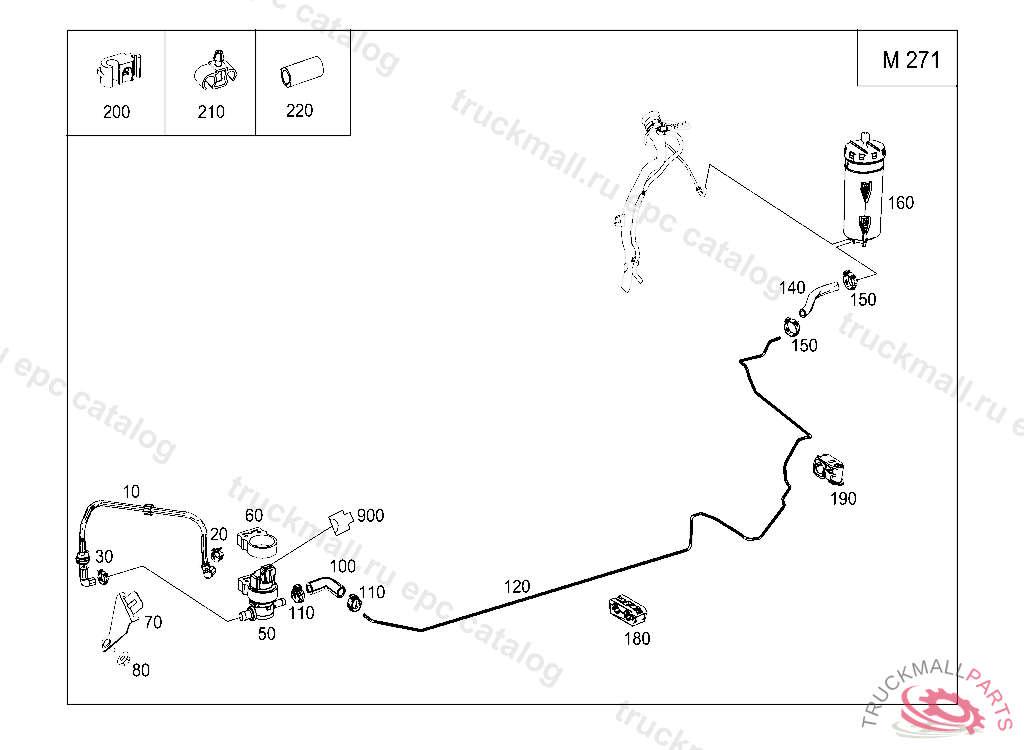

10
PURGE LINE ENGINE TO REGENERATION VALVE
20
SPRING HOSE CLAMP PURGE LINE TO INTAKE MANIFOLD
30
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
50
PURGE VALVE , Replaced By: A0004708593
50
PURGE VALVE
50
PURGE VALVE
60
BRACKET REGENERATION VALVE
70
BRACKET PURGE VALVE TO LONGITUDINAL MEMBER
80
NUT , Replaced By: N913023006001
100
LINE PURGE VALVE TO PURGE LINE
110
HOSE CLAMP FUEL LINE TO FUEL FILTER
120
PURGE LINE
120
PURGE LINE
140
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, FROM MODEL YEAR '98
140
HOSE PURGE LINE TO ACTIVATED CHARCOALFILTER
150
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
160
ACTIVATED CHARCOAL FILTER
180
LINE HOLDER FUEL LINE TO FIREWALL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0049958277
190
LINE HOLDER FUEL LINE MOUNTING
200
LINE HOLDER FUEL LINE MOUNTING
200
LINE HOLDER FUEL LINE MOUNTING, Replaced By: A0029951677
210
BRACKET FUEL LINE MOUNTING
220
HOSE FROM FEED LINE TO FILTER 240 MM
900
HOUSING SHUTOFF VALVE ACTIVATED-CARBON FILTER 2-PIN SLK2.8,Y58/1
