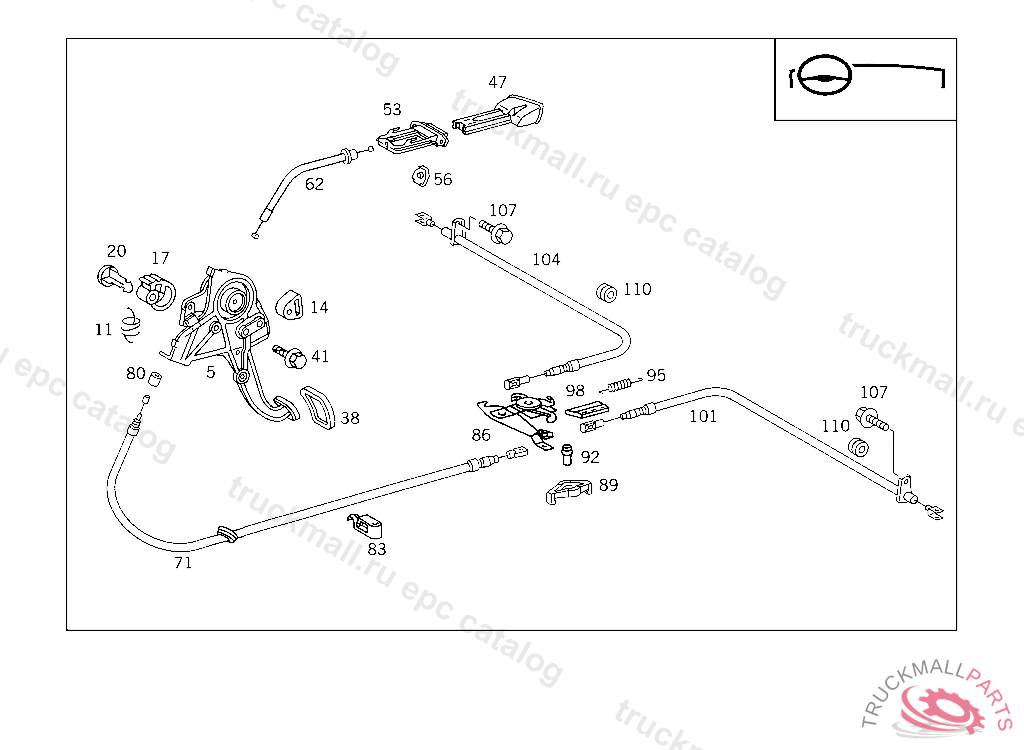

Поз.
Артикул
Описание
5
PARKING BRAKE , FROM MODEL YEAR'96
5
PARKING BRAKE , Replaced By: A2204201284
11
SPRING , FROM MODEL YEAR'96
14
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
17
DETENT , Replaced By: A2024270228
17
DETENT , FROM MODEL YEAR'96
20
PIN , FROM MODEL YEAR'96
38
PAD PEDAL
41
HEXALOBULAR BOLT TORSION BAR TO CARRIER M8X16
41
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
47
HANDLE RELEASE FOR FOOT OPERATED PARKING BRAKE
53
GUIDE UNLOCKING FOOT OPERATED PARKING BRAKE
56
LOCK
62
BRAKE CABLE PAWL RELEASE
71
BRAKE CABLE FRONT
80
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
83
CLAMP FRONT BRAKE CABLE TO TUNNEL
83
CLAMP ,A 181986
86
ADJUSTER
89
CLIP
92
PIN
95
SPRING
98
GUIDE
101
BRAKE CABLE REAR LEFT
104
BRAKE CABLE REAR RIGHT
107
SCREW BRAKE CABLE TO REAR AXLE
110
GROMMET BRAKE CABLE TO REAR AXLE
