Mercedes A0069901301 - Болт

CLK 200 KOMPRESSOR 209.341

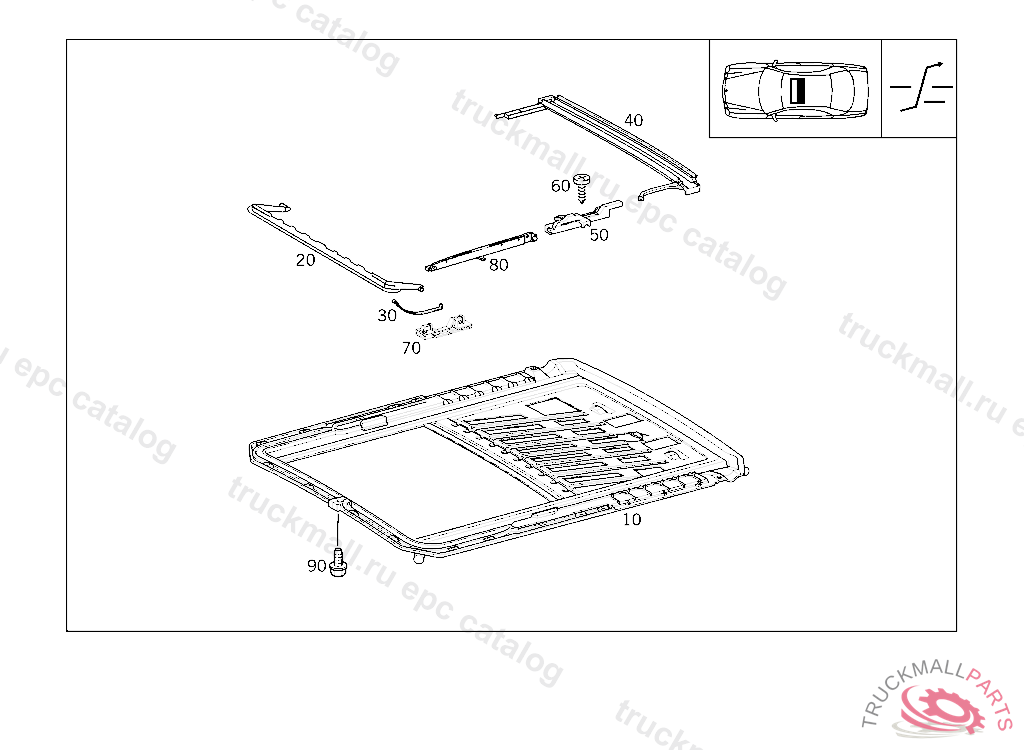

78 SLIDING ROOF - 045 SLIDING/LIFTING ROOF FRAME IL. 1

Поз.
Артикул
Описание
10
A2097800329
FRAME WITH DRAFT DEFLECTOR
20
A2097840070
BAFFLE DRAFT DEFLECTOR TO FRAME
30
A1407820335
SPRING AT BOTTOM FRAME, FOR DEFLECTOR
40
A2097800113
RAIL WATER DRAIN
50
A2117800112
ANGLE LEFT, E 01872520030630 A 44988420021025 F 00000020030112 R 09958120030328
50
A2117800212
ANGLE RIGHT, A 03842520030604
60
N000000001812
SCREW
70
A2157820131
GUIDE ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, LEFT
70
A2157820231
GUIDE ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, RIGHT
80
A2157800333
GUIDE AT LIFTING ANGLE LEFT
80
A2157800433
GUIDE AT LIFTING ANGLE RIGHT
90
A0069901301
SCREW SELF-TAPPING,943 408671
