Поз.
Артикул
Описание

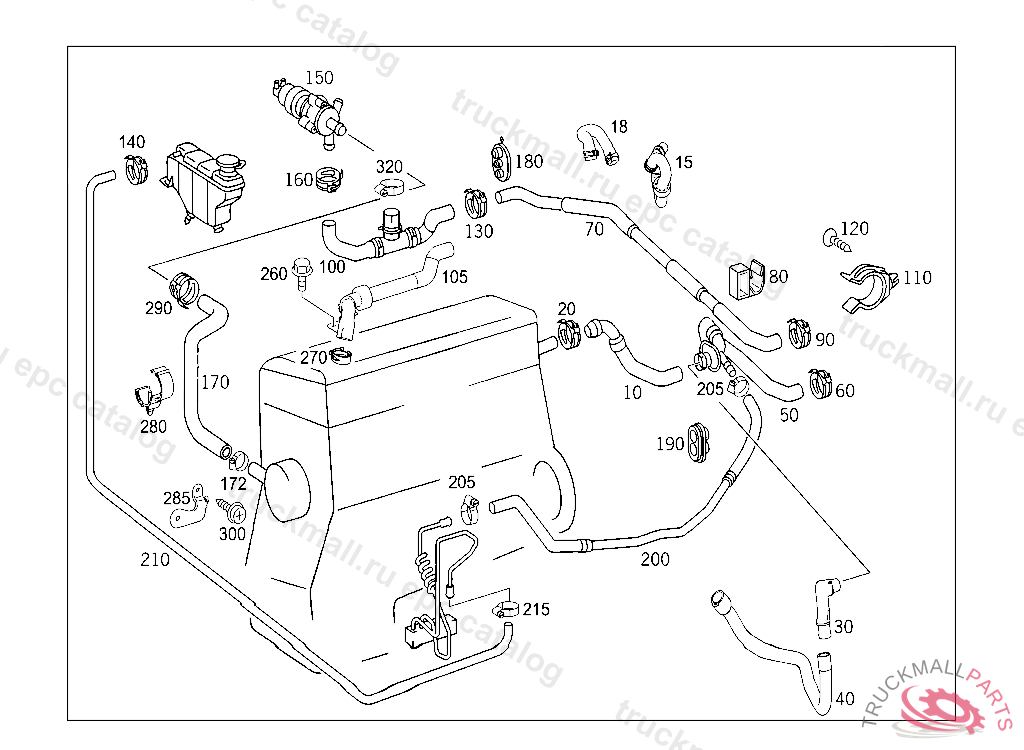

10
HOSE ENGINE TO CONNECTING POINT, PARTITION WALL
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE
60
CLAMP25 MM
70
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
70
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
80
FUSE. LOCK ACTIVATED CHARCOAL FILTER TO FUEL FILLER NECK, FROM MODEL YEAR '98
90
CLAMP25 MM
105
HOSE EXPANSION TANK
105
HOSE EXPANSION TANK
130
CLAMP25 MM
150
CIRCULATION PUMP
150
CIRCULATION PUMP
160
CLAMP25 MM
170
HOSE BETWEEN RECIRCULATING PUMP AND ENGINE
180
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009983902
180
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
180
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009984802
190
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
200
PIPELINE BYPASS LINE TO WATER VALVE
200
PIPELINE BYPASS LINE TO WATER VALVE
205
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
210
HOSE FROM RESERVOIR TO PUMP, E 02900020071206808
215
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
260
TAPPING SCREW
270
CLAMP HOSE TO ENGINE 29/12MM
290
HOSE CLAMP HOSE ATTACHMENT 27 MM
320
CLAMP25-40X13 MM
