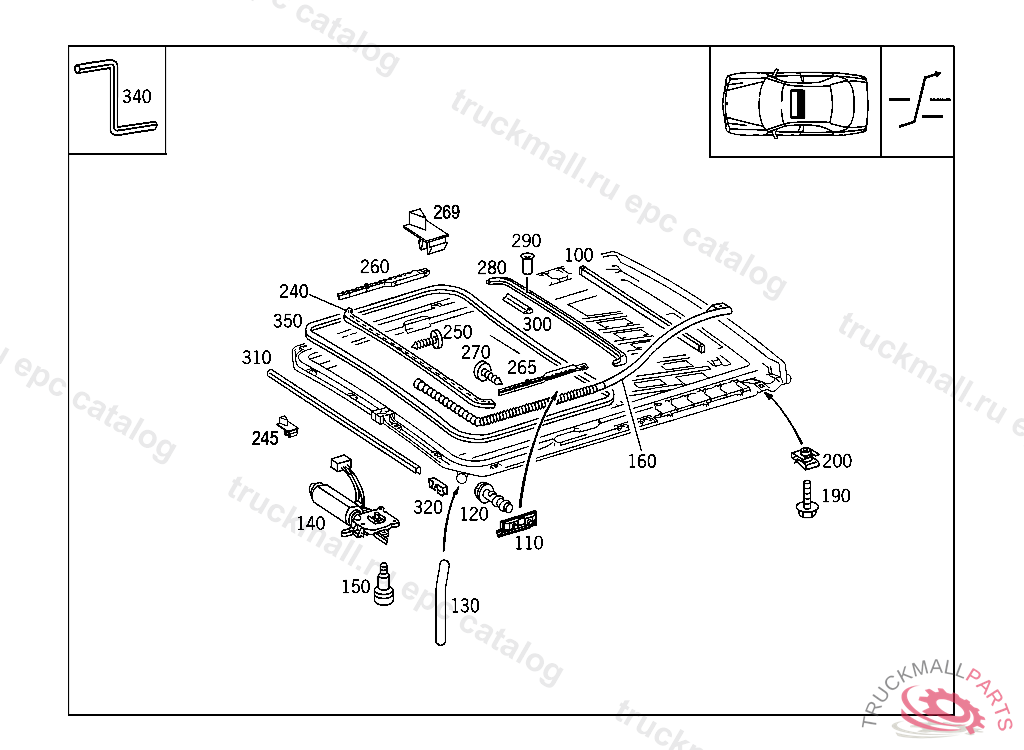

Поз.
Артикул
Описание
100
PAD AT FRAME,RIGHT 12MM, TO BE ADAPTED DURING ASSEMBLY
100
PAD AT FRAME, LEFT 12MM, TO BE ADAPTED DURING ASSEMBLY
110
COVER LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
120
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
130
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
140
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF
150
SCREW MOTOR TO FRAME
160
PULL LEFT
160
PULL RIGHT
190
SCREW-AND-WASHER ASSEMBLY FRAME TO REINFORCEMENT FRAME
190
SCREW PUMP TO BRACKET
200
NUT RETAINER , Replaced By: A3229900091
240
RAIL FRONT
245
SPACER RAIL
245
SPACER FRONT RAIL
250
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
260
MOUNTING RAIL LEFT
260
MOUNTING RAIL RIGHT
265
RAIL RIGHT, A 04128020031208
265
RAIL LEFT, A 04128020031208
269
SPACER RAIL
270
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
280
RAIL REAR
290
BLIND RIVET ATTACHMENT,RAIL
300
PAD
310
RAIL COVER STRIP FRAME BELOW
320
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
340
KEY EMERGENCY CONTROL
350
SEAL AT FRAME
