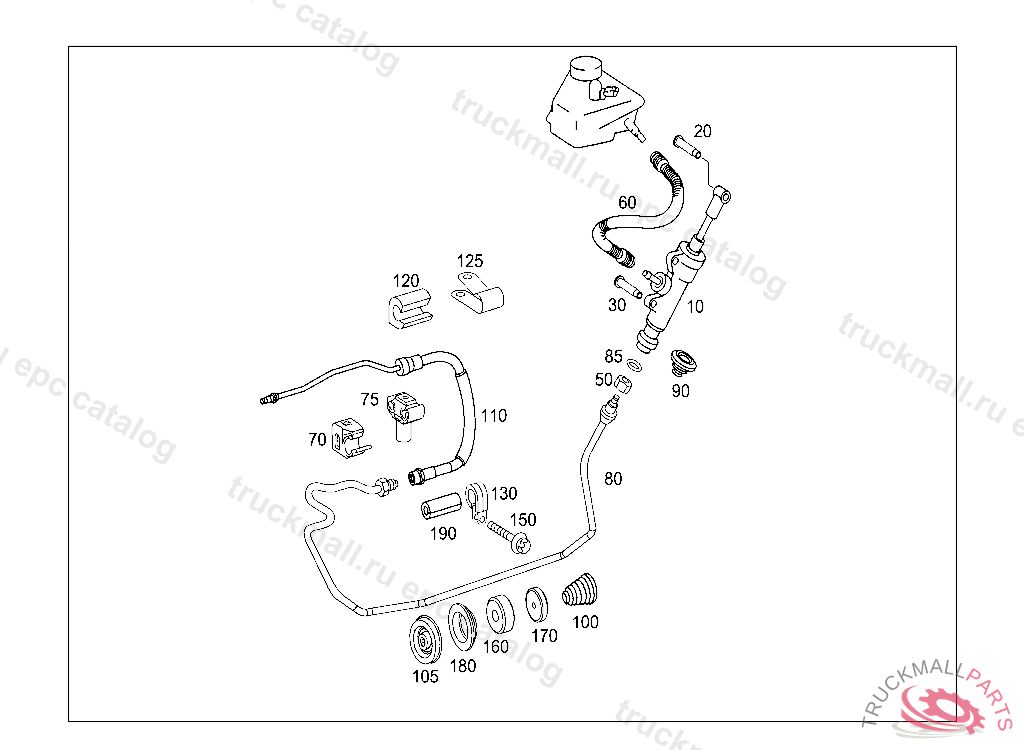

Поз.
Артикул
Описание
10
CYLINDER
20
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
30
PIN CLUTCH PEDAL
50
NUT BRAKE
60
HOSE RESERVOIR,CLUTCH MASTER CYLINDER, CLUTCH SLAVE CYLINDER
60
HOSE FROM RESERVOIR TO MASTER CYLINDER 270MM
60
CORRUGATED HOSE RESERVOIR,CLUTCH MASTER CYLINDER, CLUTCH SLAVE CYLINDER
70
CLAMP LINES UNDER REAR SEAT FLOOR, A 360313 F 340137
85
O-RING CLUTCH LINE 6.07 X 1.78
90
BOOT
100
BOOT FROM CLUTCH MASTER CYLINDER LINE TO SLAVE CYLINDER
100
BOOT CLUTCH LINE IN LEGROOM
105
EXPANSION PLUG FASTENING, LEFT TRIM, J 72081220090217
125
BRACKET SEPARATION POINT AT CLUTCH SLAVE CYLINDER
160
STOP PLUG PEDAL ASSEMBLY HYDRAULICS D 20.5 MM
170
STOP PLUG PEDAL ASSEMBLY HYDRAULICS D 35.5 MM
180
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
190
HOSE LEAK LINE, ORDER BY THE METER
