Mercedes A1409900317 - Болт

E 320 USA 210.065 UP TO MODEL YEAR CODE 809

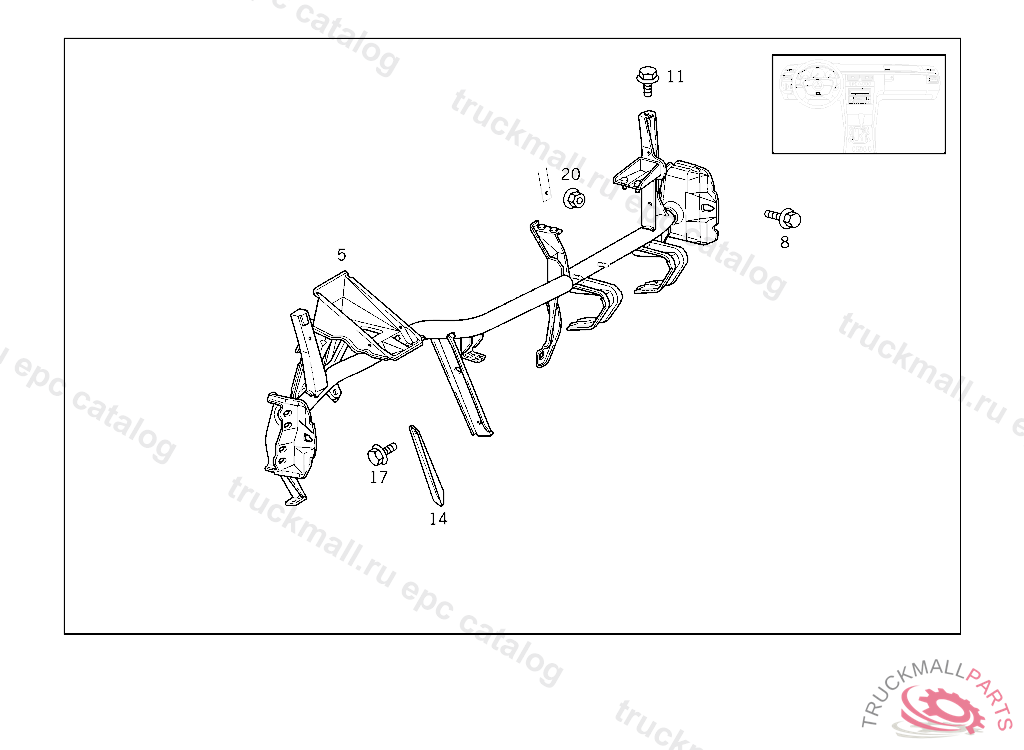

62 FRONT PANEL - 120 CROSS MEMBER BELOW INSTRUMENT PANEL

Поз.
Артикул
Описание
5
A2106200786
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.A 313878, Replaced By: A2106204086
5
A2106204086
SUPPORT INSTRUMENT PANEL, VALID FOR VEHICLES WITHOUT CODE 809+059
5
A2106204186
SUPPORT INSTRUMENT PANEL
8
A1409900317
SCREW CROSS MEMBER TO FIRE WALL M8X24
11
N914126008006
SCREW STEERING COLUMN JACKET TUBE TO BODY
14
A2106281224
STRUT BETWEEN TUNNEL AND CROSS MEMBER BELOW INSTRUMENT PANEL
17
N910105008011
SCREW STOP TO BATTERY CASE
17
N914126008006
SCREW STEERING COLUMN JACKET TUBE TO BODY
20
N913023006000
NUT , Replaced By: N913023006001
20
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
