E 250 DIESEL 210.610 TO MODELLJAHR CODE 809

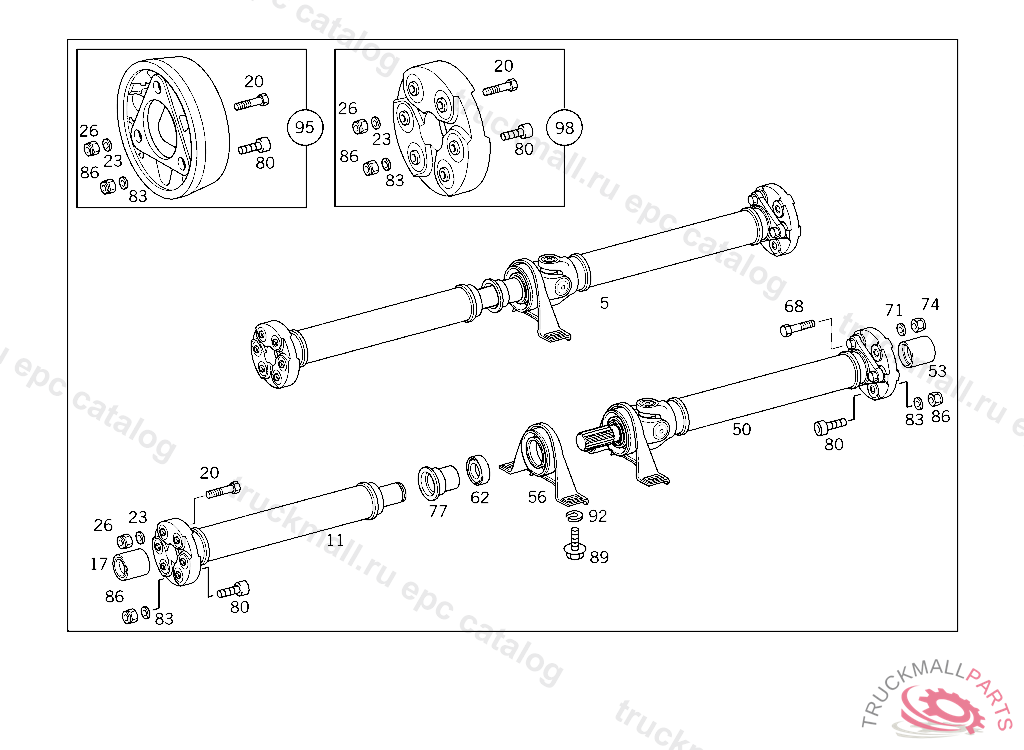

41 PROPELLER SHAFT - 015 PROPELLER SHAFT IL. 1

Поз.
Артикул
Описание
17
A1244100732
CENTERING BUSHING FRONT
20
A1249903701
SCREW W HEXAGON SOCKET. SCREW FLEXIBLE DISC TO PROPELLER SHAFT
23
A1249904140
WASHER FLEXIBLE DISC TO PROPELLER SHAFT OF FOUR-SPEED TRANSMISSION
26
A1249901451
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
50
A2104102402
PROPELLER SHAFT REAR
53
A1244100732
CENTERING BUSHING FRONT
74
A1249901451
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
80
A1249903701
SCREW W HEXAGON SOCKET. SCREW FLEXIBLE DISC TO PROPELLER SHAFT
83
A1249904140
WASHER FLEXIBLE DISC TO PROPELLER SHAFT OF FOUR-SPEED TRANSMISSION
89
N304017008021
SCREW PIPE CLAMP
89
N000933008154
SCREW , Replaced By: N304017008021
92
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
98
A2024101315
FLEXIBLE JOINT DISC PARTS KIT,REAR
