Поз.
Артикул
Описание

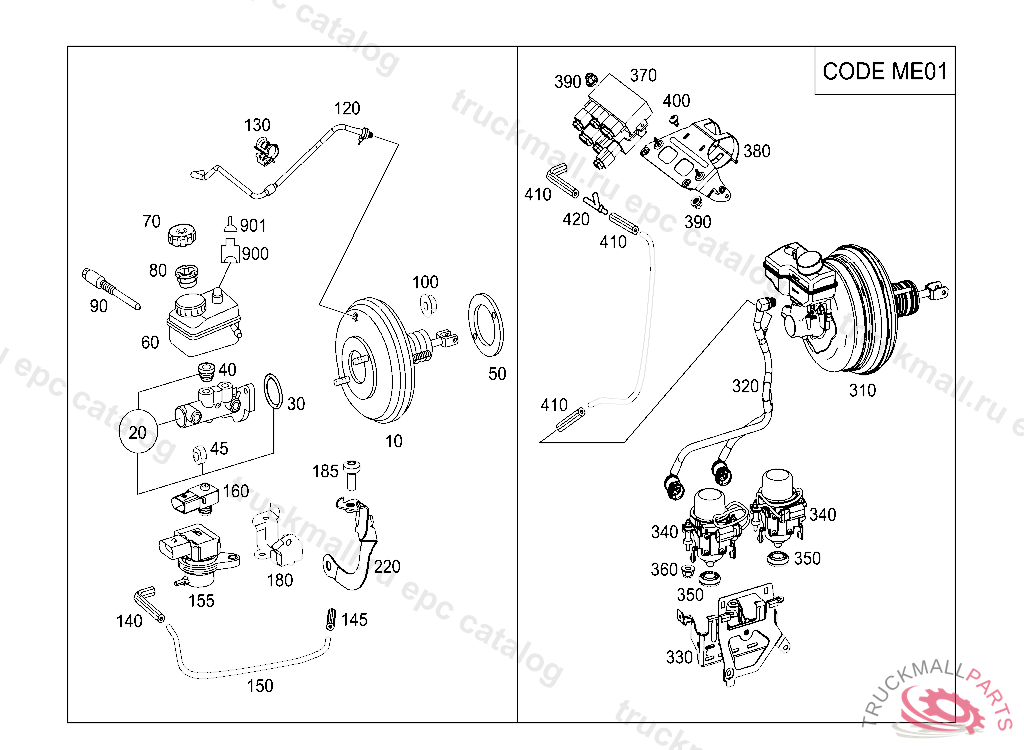

10
BRAKE BOOSTER ASSEMBLY
10
BRAKE BOOSTER , Replaced By: A1694301130
10
BRAKE BOOSTER , Replaced By: A1694301230
10
BRAKE BOOSTER ASSEMBLY
20
MASTER BRAKE CYLINDER , J 62101420080501, Replaced By: A1694300301
20
MASTER BRAKE CYLINDER , J 62101320080501
20
TS MASTER BRAKE CYLINDER , J 62101420080501
30
SEAL RING
40
BUSHING
45
NUT MASTER BRAKE CYLINDER AT BRAKE BOOSTER
50
GASKET BRAKE BOOSTER TO BEARING BRACKET
60
DASHPOT BRAKE FLUID RESERVOIR
70
COVER
80
STRAINER BRAKE FLUID RESERVOIR
90
TRUNNION SCREW RESERVOIR TO MASTER CYLINDER
100
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
120
LINE FROM VACUUM PUMP TO BRAKE BOOSTER
120
LINE FROM VACUUM PUMP TO BRAKE BOOSTER
120
LINE FROM VACUUM PUMP TO BRAKE BOOSTER, Replaced By: A1694301429
130
CLIP
155
SENSOR (PRESSURE SENSOR), J 99953520111007
160
PRESSURE SENSOR , J 99953620111007
160
TS PRESSURE SENSOR , J 99953520111007
180
BRACKET PRESSURE SENSOR
185
SCREW STEERING SHAFT BEARING TO CAB
185
HEXALOBULAR BOLT PRESSURE SENSOR BRACKET M6X14
220
BRACKET PRESSURE SENSOR ATTACHMENT
220
BRACKET PRESSURE SENSOR ATTACHMENT
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
901
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
