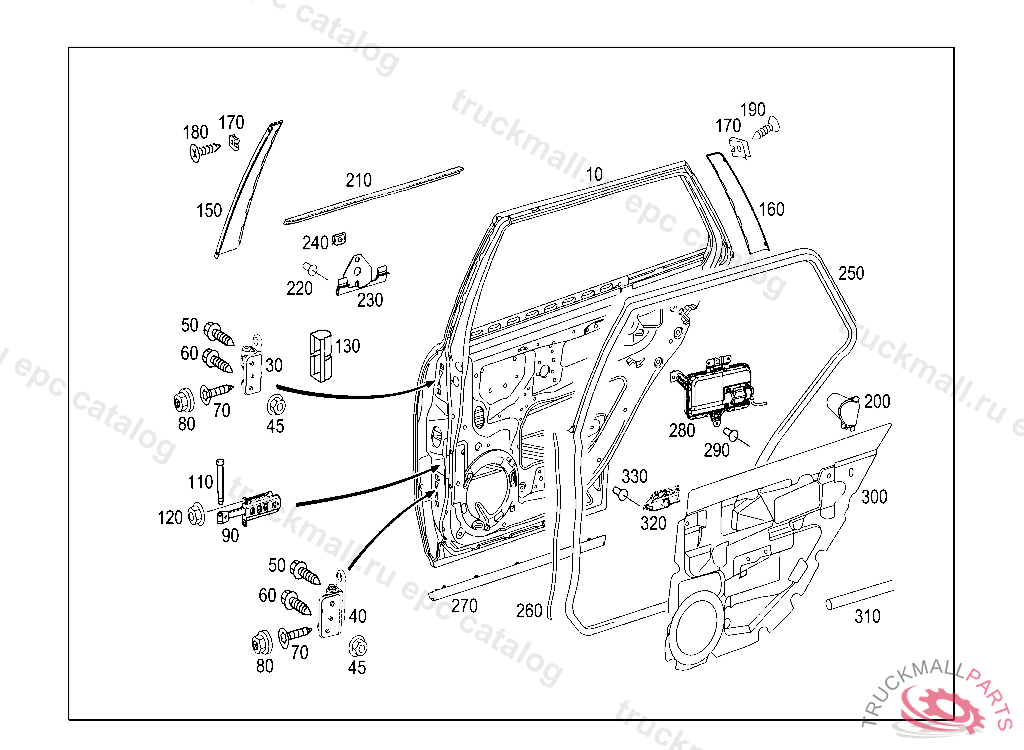

Поз.
Артикул
Описание
10
DOOR SHELL RIGHT
10
DOOR SHELL LEFT
30
HINGE LEFT TOP
30
HINGE RIGHT TOP
40
HINGE LEFT BOTTOM
40
HINGE RIGHT BOTTOM
45
NUT ASSEMBLY BOLT,A 267554
50
BOLT HINGE TO BODY M8X25, A 00901919990831
60
BOLT TO HINGE, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0139902101
60
BOLT RIGHT DOOR HINGE
70
SCREW LOCKING EYE REAR FENDER
80
CAP TO RIGHT DOOR HINGE SCREW
90
DOOR CHECK LEFT AND RIGHT
110
HEXALOBULAR BOLT OIL LINE TO CASE M6X20
120
NUT , Replaced By: N913023006001
130
COVER DOOR BRAKE ON B-PILLAR
150
ORNAMENTAL COVER WINDOW FRAME,RIGHT, A 37029820030728 A 57335120040331 X 11082820031008
150
ORNAMENTAL COVER WINDOW FRAME,LEFT, A 37029820030728 A 57335120040331 X 11082820031008
160
ORNAMENTAL COVER WINDOW FRAME,LEFT
160
ORNAMENTAL COVER WINDOW FRAME,RIGHT
170
LOCK AT BRACKET,F 029921
180
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
190
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
200
FILLER IMPACT PROTECTION
210
ORNAMENTAL TRIM RIGHT DOOR EDGE, B 45000020090529
210
ORNAMENTAL TRIM LEFT DOOR EDGE, B 45000020090529
210
GARNISH MOULDING LEFT DOOR EDGE, B 44999920090529 X 23999820070131
210
GARNISH MOULDING RIGHT DOOR EDGE, B 44999920090529 X 23999820070131
220
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
220
RIVET TRIM STRIP FASTENING
220
RIVET TYPE PLATE
230
CLIP GARNISH MOULDING TO FRONT DOOR EDGE
230
CLIP TRIM STRIP FASTENING, B 11811620070116 L 00705720061231 X 21775820060926
240
CLIP FIXED WINDOW AREA
250
WEATHERSTRIP LEFT
250
WEATHERSTRIP RIGHT
260
RAIL LEFT
260
RAIL RIGHT
270
WEATHERSTRIP LEFT AND RIGHT
280
AIR BAG RIGHT
280
AIR BAG LEFT
290
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
300
WEATHERSTRIP LEFT, TO BE ADAPTED DURING ASSEMBLY
300
WEATHERSTRIP RIGHT
310
SEALING CORD DOOR, ORDER BY THE METER
320
BRACKET PANELING MOUNTING, RIGHT
320
BRACKET PANELING MOUNTING, LEFT
330
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
