Mercedes A3529970032 - БОЛТ ЗАМКА

E 350 CGI 211.257

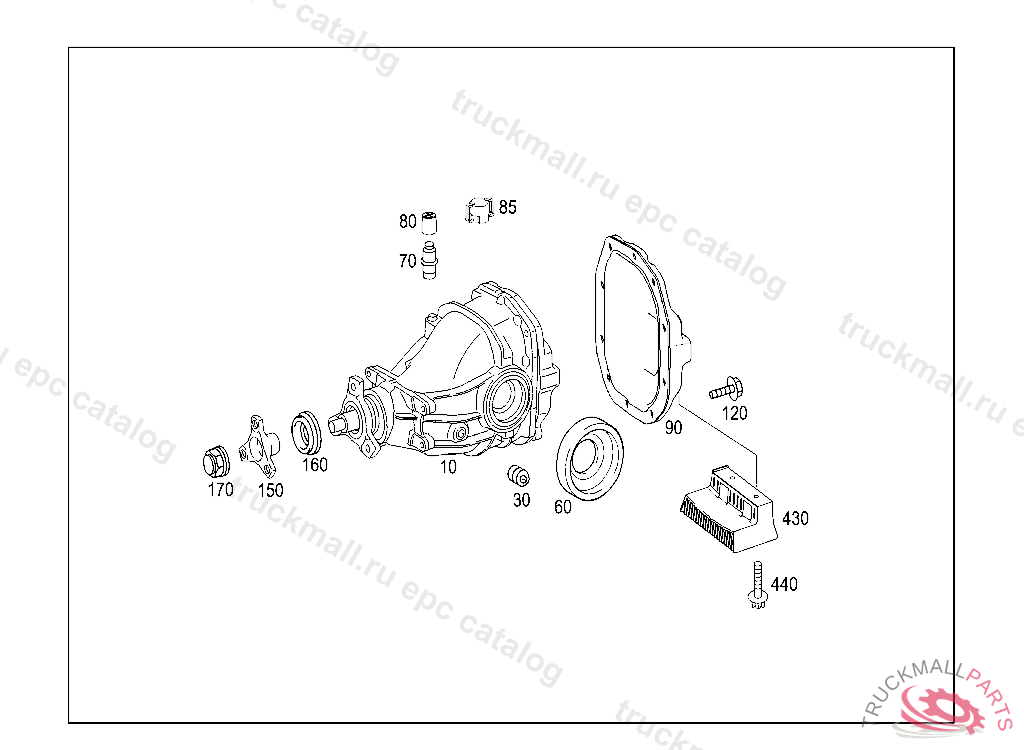

35 REAR AXLE - 015 REAR AXLE HOUSING WITH DIFFERENTIAL

Поз.
Артикул
Описание
10
A2193500414
REAR AXLE DIFFERENTIAL REAR AXLE CENTER ASSEMBLY W/O FLANGE 1:3.07, A 87431220050630806 L 00777720060531806 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
30
A3529970032
SCREW PLUG BELL HOUSING
60
A0259972647
SEAL RING INTERIOR FLANGE, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
70
A2303500590
BREATHER
70
A2303510268
CAP BREATHER
90
A2303512008
COVER END COVER
120
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
150
A2203502345
JOINT FLANGE110 MM, A 23962620081009 F 25412020080817, Replaced By: A2123500245
160
A0249979947
SEAL RING DRIVE PINION, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
170
A2213530072
NUT JOINT FLANGE M29X1.5
