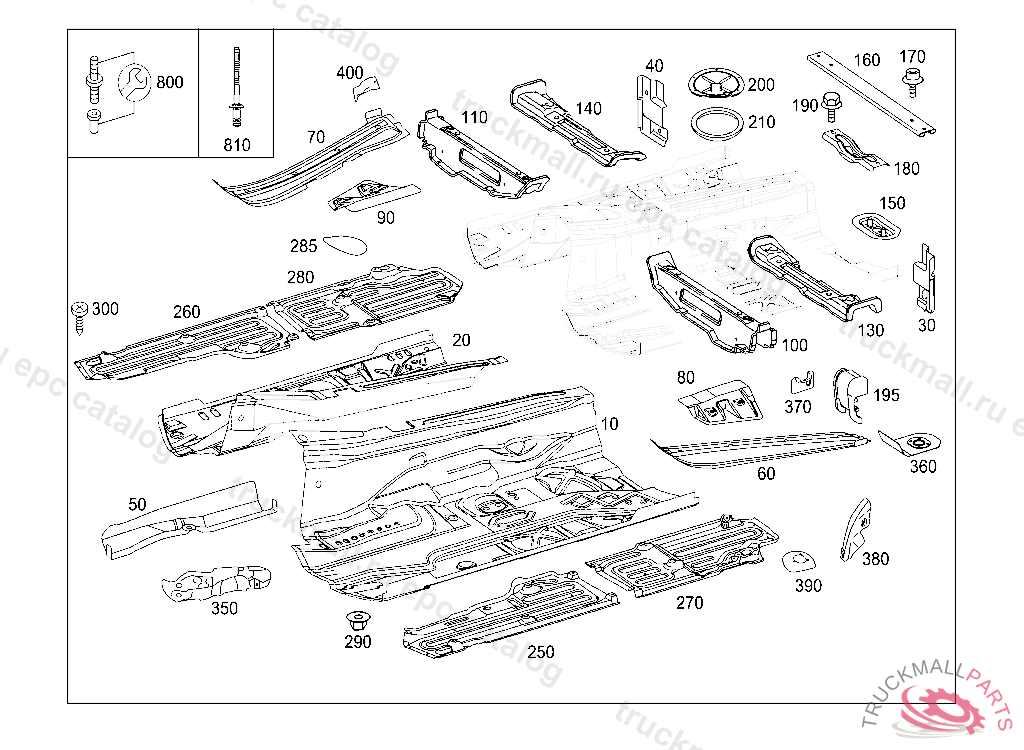

Поз.
Артикул
Описание
10
BOTTOM LEFT
10
BOTTOM LEFT
20
BOTTOM RIGHT
20
BOTTOM RIGHT
30
CROSS MEMBER LEFT
40
CROSS MEMBER RIGHT
50
REINFORCEMENT ON TUNNEL
60
SIDE MEMBER FRONT LEFT
70
SIDE MEMBER FRONT RIGHT
80
REINFORCEMENT MAIN FLOOR,FRONT LEFT
90
REINFORCEMENT MAIN FLOOR,FRONT RIGHT
100
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
110
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT, THEFT-RELEVANT PART
130
CROSS MEMBER BELOW FRONT SEAT,REAR LEFT
140
CROSS MEMBER BELOW FRONT SEAT,REAR RIGHT
150
CONSOLE CROSSMEMBER DRIVER SIDE, REAR
160
STRUT BETWEEN MAIN FLOOR LEFT AND RIGHT
170
HEXALOBULAR BOLTM8X16
180
REINFORCEMENT CROSSMEMBER DRIVER SIDE, REAR
190
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
195
COVER BATTERY FASTENING
250
PANELING BELOW MAIN FLOOR, FRONT LEFT
250
COVER BELOW MAIN FLOOR, FRONT LEFT
260
PANELING BELOW MAIN FLOOR, FRONT RIGHT
270
COVER BELOW MAIN FLOOR, REAR LEFT
280
COVER BELOW MAIN FLOOR, REAR RIGHT
290
PLASTIC NUT. NUT
360
REINFORCEMENT
370
REINFORCEMENT WHEELHOUSE BOTTOM LEFT
370
REINFORCEMENT WHEELHOUSE BOTTOM RIGHT
380
REINFORCEMENT LEFT LOCKING LUG
380
REINFORCEMENT RIGHT LOCKING LUG
390
REINFORCEMENT FRONT RIGHT
390
REINFORCEMENT FRONT LEFT
400
REINFORCEMENT DAMPER STRUT CONSOLE,LEFT
400
REINFORCEMENT DAMPER STRUT CONSOLE,RIGHT
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
810
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
