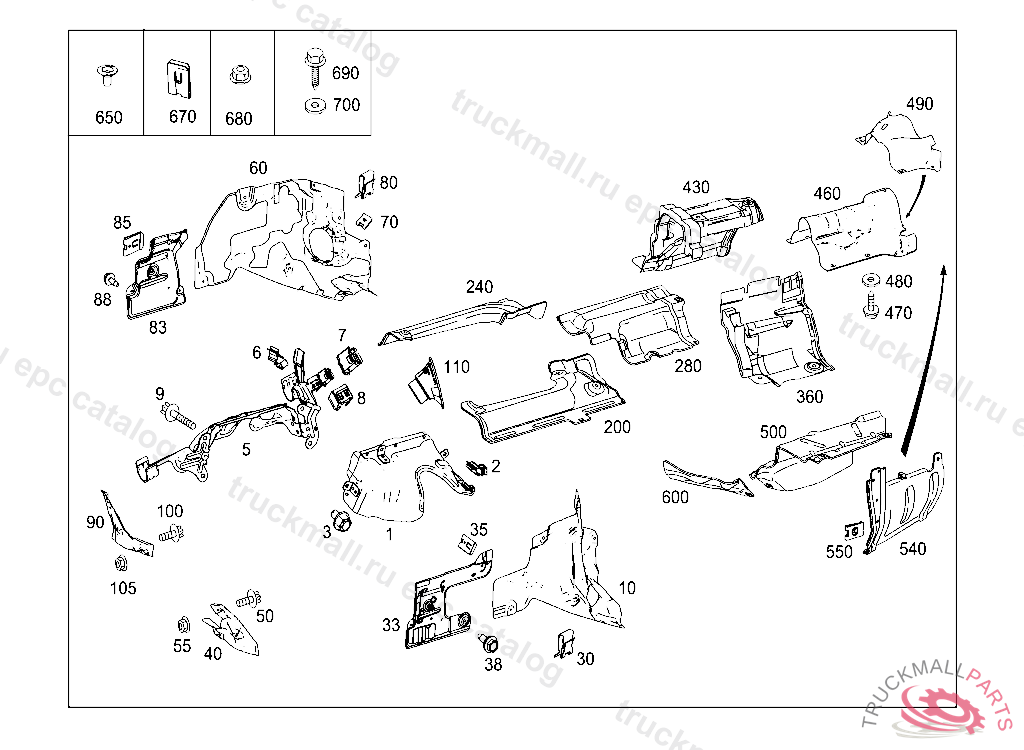

Поз.
Артикул
Описание
10
SHIELDING TO FIRE WALL,LEFT, A 04139220120110
10
SCREENING TO FIRE WALL,LEFT, A 04139120120110
10
SHIELDING TO FIRE WALL,LEFT, A 04139220120110
10
SHIELDING TO FIRE WALL,LEFT, A 04139120120110
30
CLIP HOSE TO CAB,4 238841
33
SHIELDING ENGINE COMPARTMENT,LEFT
33
SHIELDING ENGINE COMPARTMENT,LEFT, Replaced By: A2126827471
35
CLIP
38
BOLT ABSORBER AT LONGITUDINAL MEMBER
60
SCREENING TO FIRE WALL,RECHTS
60
SHIELDING TO GUARD
80
CLIP HOSE TO CAB,4 238841
83
SHIELDING ENGINE COMPARTMENT,RIGHT
83
SHIELDING ENGINE COMPARTMENT,RIGHT, Replaced By: A2126825971
85
CLIP
88
BOLT ABSORBER AT LONGITUDINAL MEMBER
110
SHIELDING STEERING JOINT BOOT
110
SHIELDING STEERING JOINT BOOT
200
SHIELDING TO MAIN FLOOR LEFT
200
SCREENING PLATE TO MAIN FLOOR LEFT, Replaced By: A2126828571
240
SHIELDING FLOOR,RIGHT, A 07073320120911
240
SCREENING PLATE FLOOR,RIGHT, A 07073220120911
280
SHIELDING OVER CATALYST, A 05893720120601 A 07158320120918
280
SHIELDING OVER CATALYST, A 07158420120918
280
SCREENING PLATE OVER CATALYST, A 05893620120601
360
SCREENING PLATE OVER LEFT CENTER MUFFLER
430
SCREENING PLATE OVER RIGHT CENTER MUFFLER
460
SCREENING PLATE BELOW FUEL TANK
470
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
480
WASHER AIR VENT FASTENING
490
SCREENING PLATE ABOVE PROPELLER SHAFT
500
SCREENING PLATE REAR MUFFLER, LEFT, INSIDE
500
SCREENING PLATE REAR MUFFLER RIGHT, INSIDE
540
SCREENING PLATE REAR MUFFLER, RIGHT, OUTER
540
SCREENING PLATE REAR MUFFLER, LEFT, OUTER
550
LOCK RIGHT PANELLING TO SIDE MEMBER
600
SCREENING PLATE LEFT FRONT SPARE TIRE WELL
600
SHIELDING RIGHT FRONT SPARE TIRE WELL, A 20130930
650
HEXAGON NUT W COLLAR BRACKET MOUNTING
670
CLIP
680
NUT , Replaced By: N913023006001
