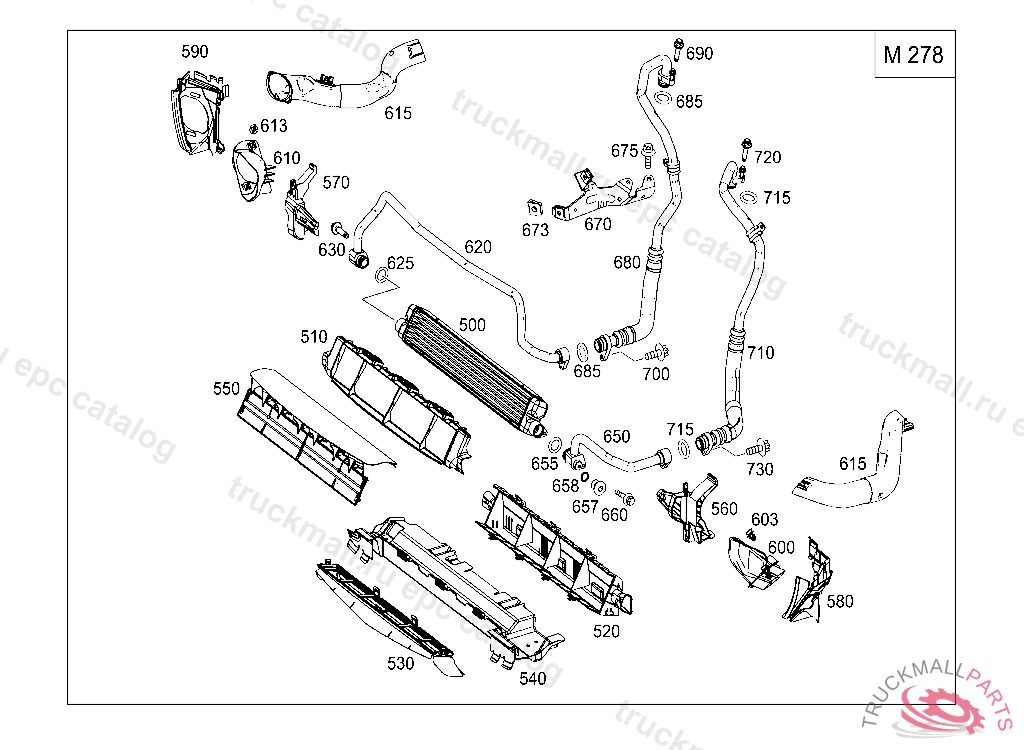

Поз.
Артикул
Описание
500
OIL COOLER FRONT
500
OIL COOLER ENGINE OIL, A 20140121
510
AIR DUCT OIL COOLER AT FRONT
520
AIR DUCT OIL COOLER AT REAR
530
AIR DUCT SEGMENT OIL COOLER BOTTOM, A 03387320111031
530
COVER FOR AIR INTAKE OIL COOLER BOTTOM
540
COVER FOR AIR INTAKE BOTTOM
540
COVER FOR AIR INTAKE LOWER AIR DUCTING
550
AIR DUCT FRONT TOP
560
PLUG CONNECTOR HOUSING LEFT
560
PLUG CONNECTOR HOUSING LEFT
570
PLUG CONNECTOR HOUSING RIGHT
570
PLUG CONNECTOR HOUSING RIGHT
580
COVER FOR AIR INTAKE LEFT
580
COVER FOR AIR INTAKE LEFT
590
COVER FOR AIR INTAKE RIGHT
590
COVER FOR AIR INTAKE RIGHT
600
AIR DUCT LEFT
603
CATCH COVERING TO COVERING
610
AIR DUCT FRONT RIGHT
613
CATCH COVERING TO COVERING
620
OIL LINE FROM COOLER TO CONNECTING POINT
620
OIL LINE
625
SEAL RING OIL LINE TO OIL FILTER
630
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
650
OIL LINE CONNECTING POINT TO COOLER
650
OIL LINE
655
SEAL RING OIL LINE TO OIL FILTER
657
SCREW PLUG, FILLING. SCREW PLUG TRANSMISSION CASE REAR COVER
658
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
658
SEAL RINGTO 001 431 72 14
660
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
670
BRACKET OIL LINE ATTACHMENT
673
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
675
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
680
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING, A 20130629
680
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING, A 20130629
685
SEAL RING OIL LINE TO OIL FILTER
690
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
700
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
710
OIL LINE FROM OIL FILTER HOUSING TO SEPARATING POINT, A 20130629
715
SEAL RING OIL LINE TO OIL FILTER
720
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
730
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
