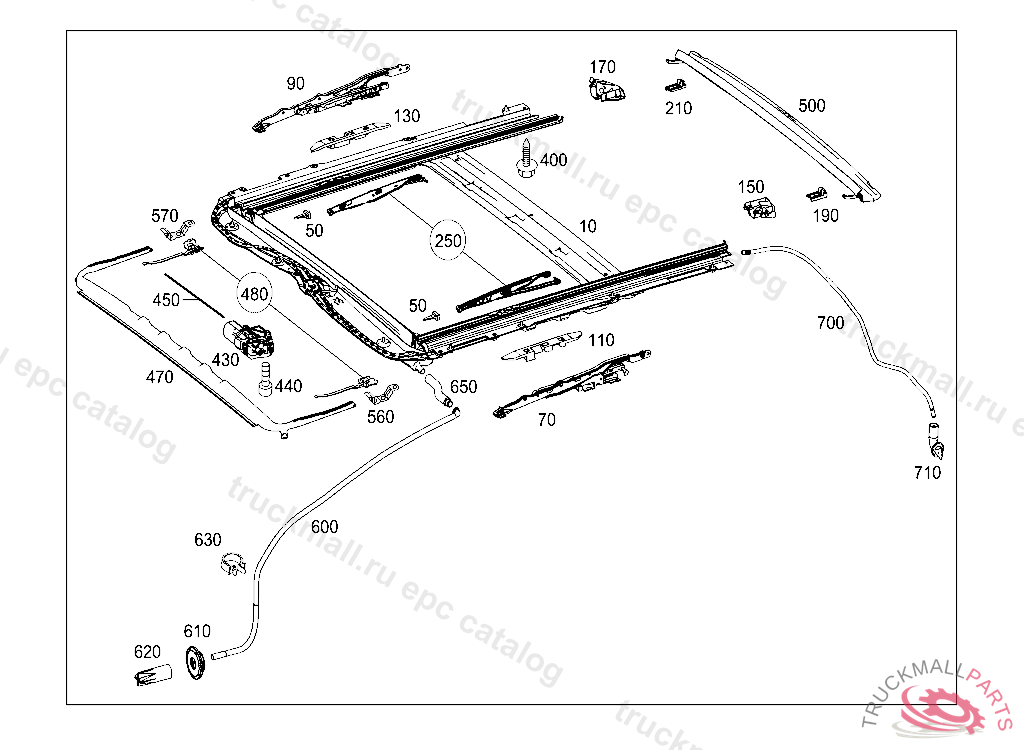

Поз.
Артикул
Описание
10
SLIDING ROOF FRAME
10
FRAME , A 62011720110831 L 05243420110831 V 00391820110831 F 76736820110831 R 20766720111031
50
STOP LEFT AND RIGHT SLIDING ROOF
50
END STOP LEFT AND RIGHT SLIDING ROOF
70
ANGLE LEFT
90
ANGLE RIGHT
110
STOP LEFT ANGLE
130
STOP RIGHT ANGLE
150
END PIECE LEFT ANGLE
170
END PIECE RIGHT ANGLE
190
SLIDING SHOE LEFT DRIP RAIL
210
SLIDING SHOE RIGHT DRIP RAIL
250
SLOTTED SLIDE VALVE LEFT AND RIGHT PARTS KIT
400
BOLT FRAME TO ROOF
400
TS HEX. HEAD TAPPING SCRE DELIVERY QUANTITY12 PCS., THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0179906301
430
GEARED MOTOR
430
ELECTRIC MOTOR
440
TS SCREW W HXL. SOCKET DELIVERY QUANTITY3 PCS.
440
SCREW CABLE TRAY TO APPARATUS CASE, A 290166 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 290167 WITH CODE 805
450
ELECTRICAL WIRING HARNESS SLIDING ROOF
450
WIRING HARNESS SLIDING ROOF DRIVE
470
AIR DEFLECTOR ELECTRIC SLIDING/LIFTING ROOF
470
WIND DEFLECTOR ELECTRIC SLIDING/LIFTING ROOF
480
BEARING F WIND DEFLECTOR LEFT AND RIGHT PARTS KIT
500
RAIN CHANNEL
500
DRIP MOULDING
560
CONSOLE LEFT
570
CONSOLE RIGHT
600
HOSE LINE FRONT RIGHT
610
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
620
HOSE ASSEMBLY WATER DRAIN AT FRONT LEFT
620
HOSE WATER DRAIN AT FRONT LEFT, PART IS INCLUDED IN SIDEWALL PACKAGE CONTENTS (DG 63)
630
CLAMP
650
HOSE LINE AT SLIDING ROOF, FRONT
700
HOSE ASSEMBLY RIGHT REAR SLIDING ROOF
700
WATER DRAIN LEFT REAR SLIDING ROOF
710
WATER DRAIN GROMMET HOSE LINE THROUGH RIGHT WHEEL WELL
710
GROMMET HOSE LINE THROUGH LEFT WHEEL WELL, Replaced By: A0019989301
