Поз.
Артикул
Описание

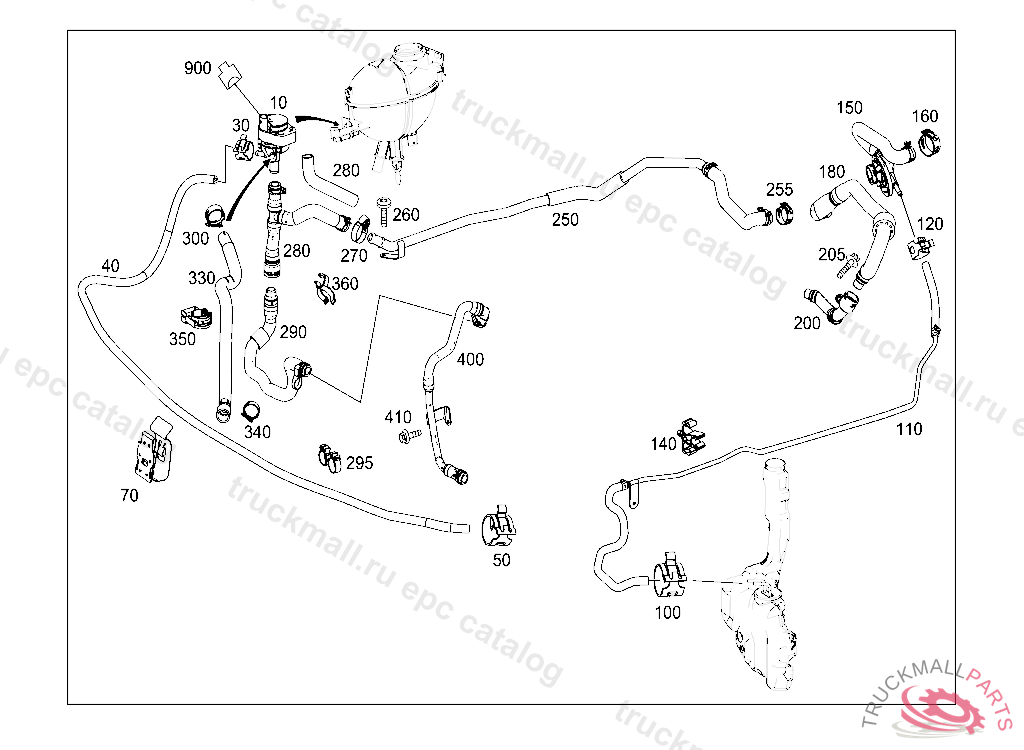

10
CIRCULATION PUMP , A 06254720120629
10
CIRCULATION PUMP
30
CLAMP14 MM
40
HOSE FROM RECIRCULATING PUMP TO HEAT EXCHANGER
50
CLAMP14 MM
70
BRACKET FASTENING, HOSES
100
CLAMP14 MM
110
LINE FROM HEAT EXCHANGER TO DISTRIBUTOR
120
CLAMP14 MM
140
BRACKET REGENERATION LINE
150
HOSE FEED TO HEAT EXCHANGER
150
HOSE FEED TO HEAT EXCHANGER
160
CLAMP25 MM
180
HOSE ASSEMBLY BETWEEN ENGINE AND DISTRIBUTOR
200
FEED LINE TO ENGINE
205
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
205
HEXALOBULAR BOLT. SCREW
250
HOSE ASSEMBLY RETURN, A 06254620120629803
250
HOSE ASSEMBLY RETURN, A 03387320111031802
255
CLAMP25 MM
260
SCREW SCREENING PLATE TO CYLINDER HEAD COVER M 5X10
270
CLAMP25 MM
280
HOSE ASSEMBLY FROM RETURN LINE TO RECIRCULATING PUMP
280
HOSE FROM RETURN LINE TO RECIRCULATING PUMP, A 04028920111222
300
CLAMP25 MM
330
HOSE ASSEMBLY BETWEEN RECIRCULATING PUMP AND ENGINE
340
CLAMP HOSE TO ENGINE 29/12MM
340
CLAMP25-40X13 MM
340
CLAMP ADVANCE ENGINE 27-30 MM
350
BRACKET HOSE ATTACHMENT
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
