Поз.
Артикул
Описание
5

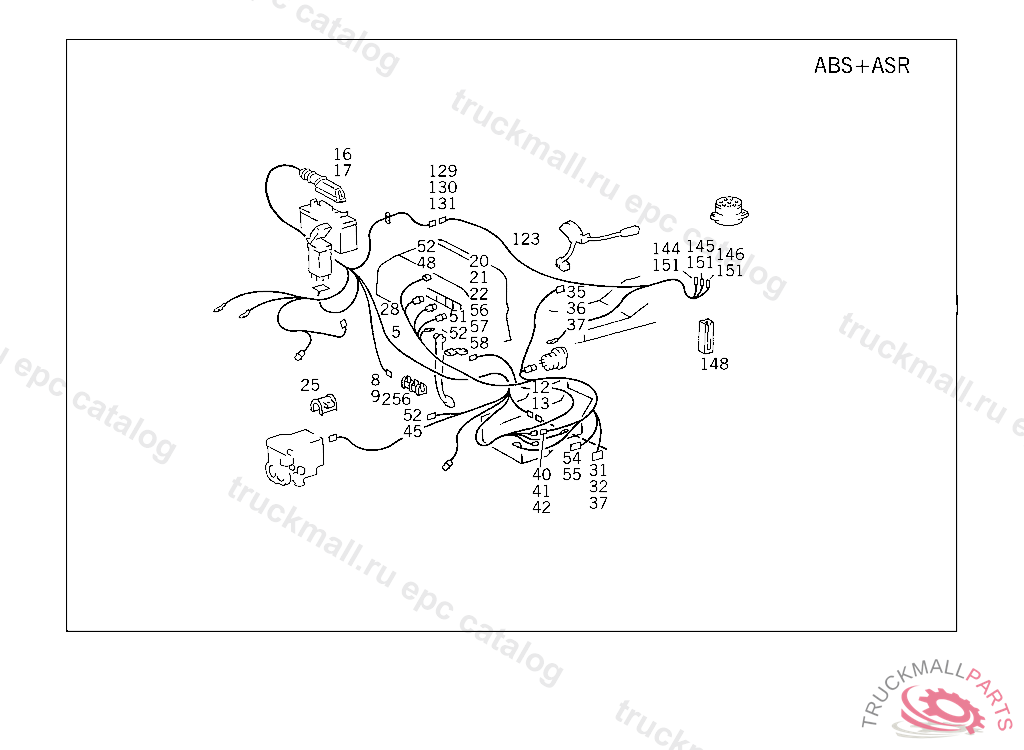

CABLE HARNESS ANTI-LOCK BRAKING SYSTEM (ABS) AND ACCELERATION SKID CONTROL (ASR), C 009356 J 016700 B 891779 - C 009354 WITH CODE 859 NOT FOR AUSTRALIA
8
PIN BUSHING HOUSING 4-POLE
9
COVER
12
PIN BUSHING HOUSING BIPOLAR
13
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
16
PLUG ELECTRONIC ACCELERATOR CONTROL UNIT PLUG-CONNECTION
17
PLUGTO 012 545 89 28, UP TO END OF MODEL YEAR '85
20
PLUG ADAPTERTO 014 545 04 28
21
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
22
PIN BUSHINGTO 000 821 19 26
25
CLAMPTO 001 431 80 12
28
CABLE HARNESS TELL-TALE LAMP ABS,ASR
31
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
32
COVERTO 006 545 81 28
35
PIN BUSHING HOUSING 4-POLE
36
COVER
37
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
40
PLUG HOUSING
41
COVERTO 007 545 00 28
42
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
45
PIN BUSHING HOUSING CIRCULATING AIR SWITCH, 7-POLE
48
CASE 4-POLE
51
PIN BUSHING HOUSING STOP LIGHT SWITCH
52
ROUND PIN BUSHING2.5 MM2
54
PLUG HOUSING
55
PLUG PIN0.5-2.0 MM2
56
PLUG ADAPTERTO 014 545 04 28
57
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
58
PIN BUSHINGTO 000 821 19 26
256
BRACKET BRACKET TO UNIT PARTITION PANEL,F 264121
