Mercedes A1234620460 - Уплотнительное кольцо

SLK 200 KOMPRESSOR 170.445

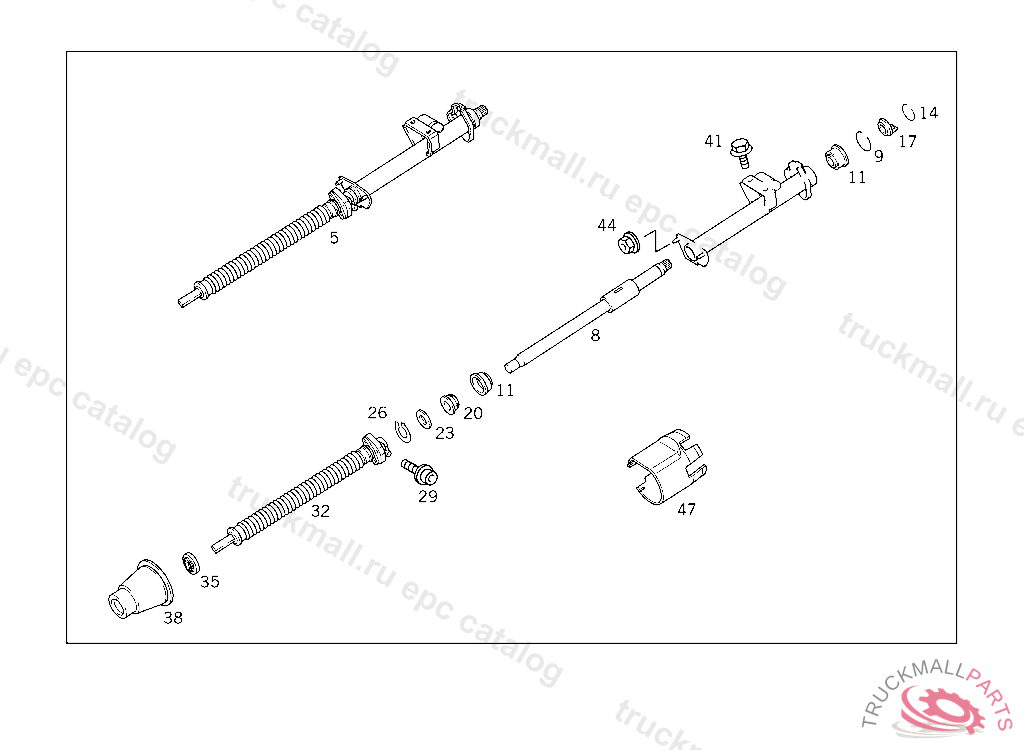

46 STEERING - 075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT

Поз.
Артикул
Описание
5
A1704600016
STEER. COLUMN JACKET TUBE
8
A2024600109
STEERING SHAFT TOP, UP TO END OF MODEL YEAR 1997
9
A0009946540
SNAP RING , F264121
11
A1269810025
BALL BEARING
14
N912009025100
SNAP RING
17
A1404620751
RING , C 014018 J 016700
20
A1404620151
RING
23
A1269931326
DISC SPRING
26
N900055025401
LOCK RING
29
N914021008026
COMBINATION BOLT LOWER STEERING SHAFT TO UPPER STEERING SHAFT
32
A1704600209
STEERING SHAFT BOTTOM
35
A1234620460
SEAL RING
38
A1704620096
BOOT
41
A2029900110
SCREW STEERING COLUMN JACKET TUBE TO BODY
44
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
44
N910112006001
NUT , Replaced By: N913023006001
44
N913017006000
NUT , Replaced By: N910112006001
47
A2024620123
COVER PANELLING TO STEERING COLUMN JACKET TUBE, UP TO END OF MODEL YEAR 1997 NO.9051 INO.5076 I....... INO.8316 INO.8F95 I....... INO.3112 INO.7102 I....... I I
