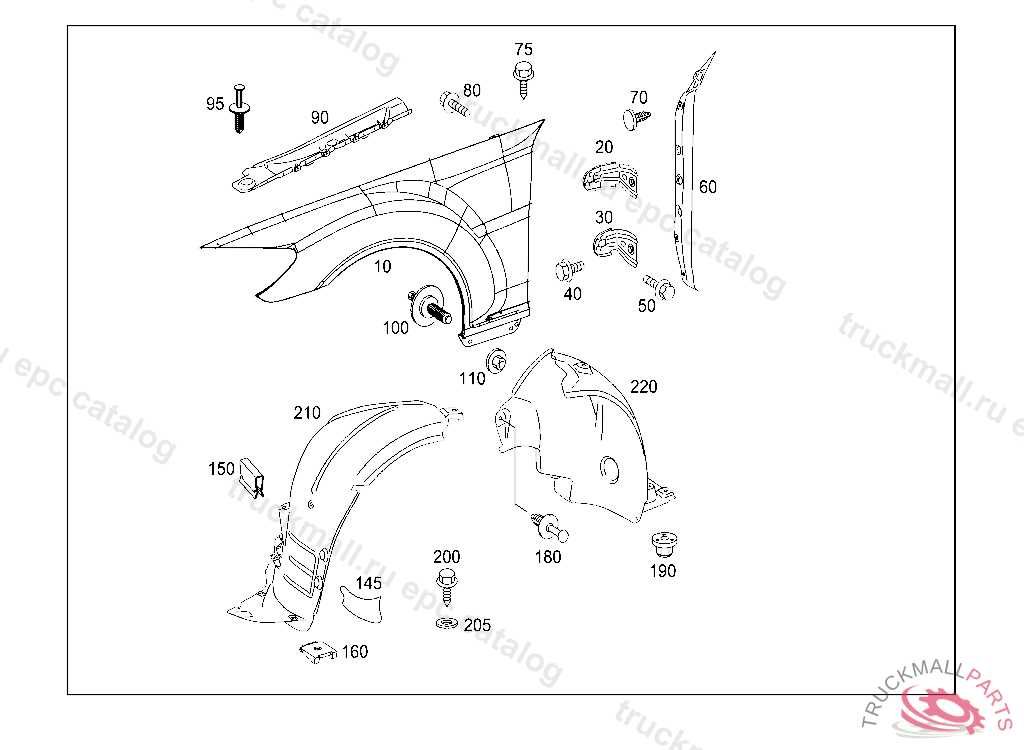

Поз.
Артикул
Описание
10
FRONT FENDER RIGHT, A 02654120100930801
10
FRONT FENDER LEFT, A 02654120100930801
10
FRONT FENDER RIGHT, A 02430720090731800
10
FRONT FENDER LEFT, A 02430720090731800
20
BRACKET FENDER TOP RIGHT MOUNTING
30
BRACKET FENDER BOTTOM RIGHT MOUNTING
40
BOLT BRACKET TO A-PILLAR
50
BOLT HINGE TO ENGINE HOOD M6X16, A 87779820051031806 E 01945020051031806
60
COVER TO FENDER LEFT
60
COVER TO FENDER RIGHT
70
STOP PLUG BRAKE CABLE
75
TAPPING SCREW
80
BOLT SUPPORT TO CROSS MEMBER M6X16
90
COVER TO FENDER LEFT
90
COVER TO FENDER RIGHT
95
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
100
ADJUSTING SCREW FENDER BOTTOM RIGHT MOUNTING M6X44.5
110
NUT FENDER ON SIDE PANEL M6
145
REINFORCEMENT LEFT FRONT WHEEL ARCH, A 02430720090731800
145
REINFORCEMENT RIGHT FRONT WHEEL ARCH, A 02430720090731800
145
REINFORCEMENT LEFT FRONT WHEEL ARCH, A 02654120100930801
145
REINFORCEMENT RIGHT FRONT WHEEL ARCH, A 02654120100930801
150
CLIP REINFORCEMENT TO PANELLING
160
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
180
RIVET COVERING TO SIDE MEMBER
190
PLASTIC NUT. NUT
200
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
205
WASHER
210
COVER LEFT FRONT, A 02430720090731800
210
RIGHT COVER RIGHT FRONT, A 02654120100930801
210
COVER RIGHT FRONT, A 02430720090731800
210
LEFT COVER LEFT FRONT, A 02654120100930801
220
LEFT COVER LEFT REAR
220
RIGHT COVER RIGHT REAR
