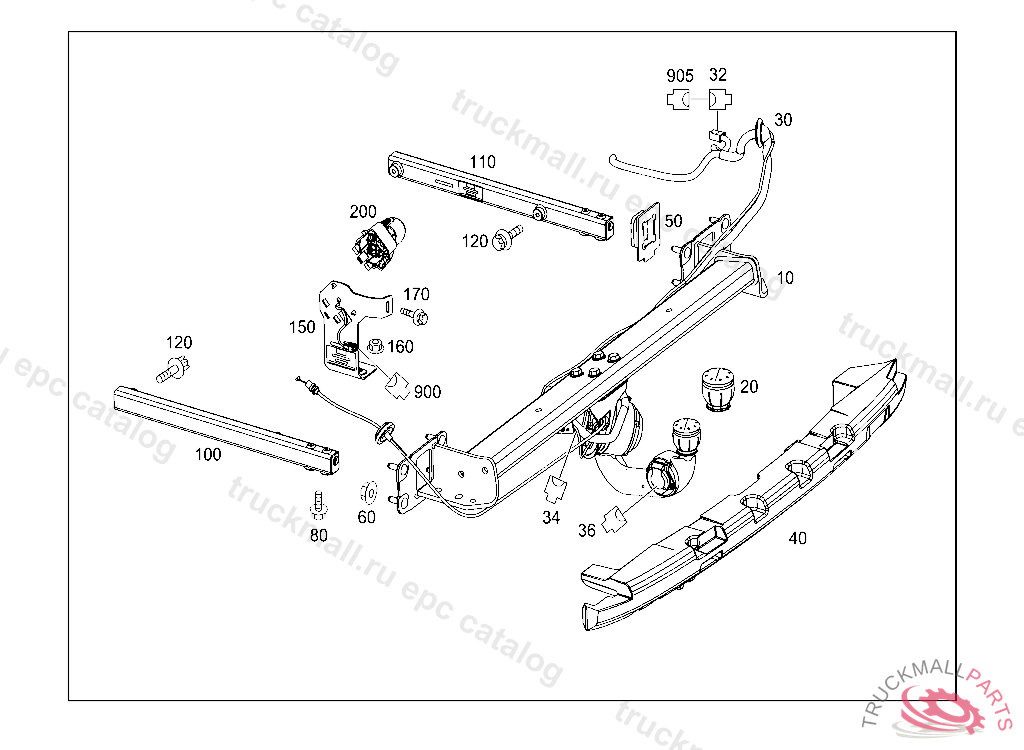

Поз.
Артикул
Описание
10
TRAILER HITCH
10
TRAILER HITCH , Replaced By: A2123100100
20
CAP
30
ELECTRICAL WIRING HARNESS HITCHING MECHANISM
32
CLUTCH PLUG CONNECTION TRAILER PLUG SOCKET 4-PIN SLK2.8,X52
34
PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
36
CAP TRAILER PLUG SOCKET X58
36
SOCKET-OUTLET TRAILER SOCKET HOUSING 13-PIN KFA,X58
40
ELASTOMER FITTING TO CROSSMEMBER TRAILER COUPLING
50
GASKET
60
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
80
HEXAGON HEAD BOLT CROSS MEMBER TO SIDE MEMBER REINFORCEMENTS M12X35
100
REINFORCEMENT LEFT
110
REINFORCEMENT RIGHT
120
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
150
CONSOLE CONTROL UNIT
160
NUT BRACKET TO BODY SHELL M6
170
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
200
OPERATING UNIT
900
HOUSING SEAT RECOGNITION FUNCTION SWITCH 2-PIN MQS,S100
905
HOUSING DOOR PARTITION POINT FRONT RIGHT, BLUE 4-PIN SLK 2.8,X35/2
