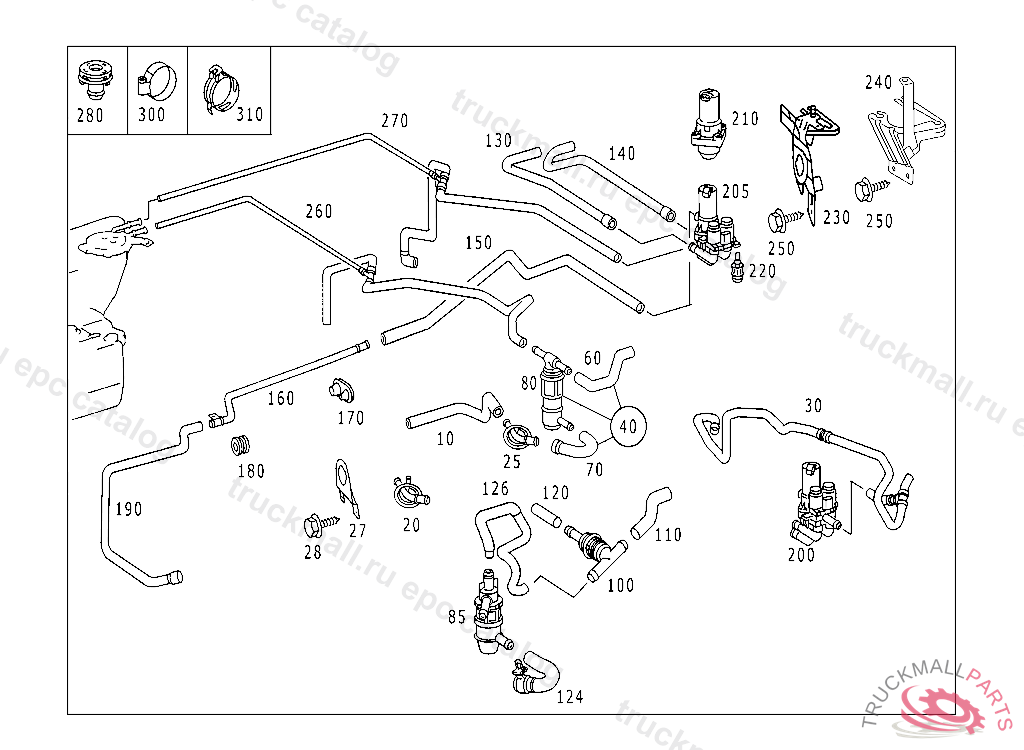

Поз.
Артикул
Описание
10
HOSE FROM ENGINE TO CONNECTING TUBE
20
PIPELINE FEED THRU PARTITION PANEL
25
PIPELINE FEED THRU PARTITION PANEL
27
BRACKET PIPE LINE TO PARTITION PANEL
28
COMBINATION BOLT MOUNTING PARTS
40
VALVE
40
VALVE HEATING FEED
60
HOSE
70
HOSE
70
HOSE
80
VALVE
130
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
130
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
140
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
140
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
150
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
150
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
160
PIPELINE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
170
GROMMET TO SPRING TOWER FOR RETURN LINE
180
GROMMET LINE PASSAGE AT SIDE MEMBER 24 MM,5 473494
190
HOSE RETURN LINE TO ENGINE
205
VALVE (ELECTRO-MAGNETIC WITH CIRCULATION PUM
210
CIRCULATION PUMP
220
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
230
BRACKET TIMING VALVE
240
BRACKET TIMING VALVE
250
COMBINATION BOLT MOUNTING PARTS
260
HOSE FEED
270
HOSE RETURN
270
HOSE RECIRCULATION, WINDOW WASHER HEATING
270
HOSE RECIRCULATION, WINDOW WASHER HEATING
270
HOSE
280
CATCH RETURN
300
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
300
HOSE CLAMP LINE MOUNTING
300
CLAMP25-40X13 MM
300
CLAMP HOSE FASTENING 28-35 MM,V 207570
300
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
300
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
310
CLAMP ADVANCE ENGINE 27-30 MM
310
CLAMP. LOOM TIE
310
CLAMP POWER STEERING PUMP TO OIL TANK, FROM MODEL YEAR 2000CODE 800
310
CLAMP25 MM
310
CLAMP HOSE TO HEAT EXCHANGER 23-26 MM
310
LOOM TIE , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
310
CLAMP. LOOM TIE
310
CLAMP27-30 MM
