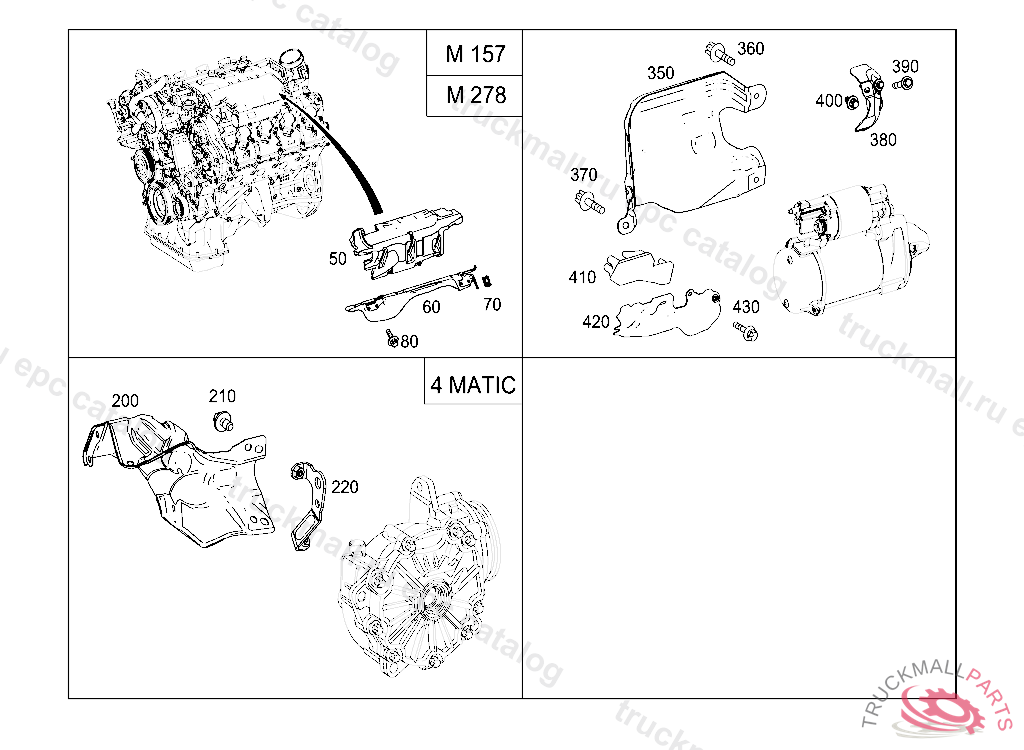

21 MAJOR ASSEMBLY DETACHABLE BODY COMP.
300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION

Mercedes A2213320388 - Кулак поворотный

S500 4-MATIC 222.085

21 MAJOR ASSEMBLY DETACHABLE BODY COMP. - 300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION

Поз.
Артикул
Описание
50
A2782262085
SOUNDPROOFING TOP RIGHT
50
A2782262185
SOUNDPROOFING TOP LEFT
60
A2780940720
SCREENING PLATE RIGHT
60
A2780944920
SCREENING PLATE LEFT, A 20130508
70
A0009910271
RETAINING CLAMP18X19 MM
80
N000000001145
SCREW BRACKET TO COVERING
80
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
200
A2213320388
SCREENING PLATE FRONT AXLE GEAR, A 87291020130328 G 20130328 R 29354120130423
210
N000000004310
HEXAGON HEAD BOLT LINE MOUNTING M6X10
220
A2213350440
BRACKET SHIELDING AT FRONT AXLE GEAR, A 09213020130328
350
A2781503375
SCREENING PLATE STARTING MOTOR, A 02963420111029
360
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
370
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
