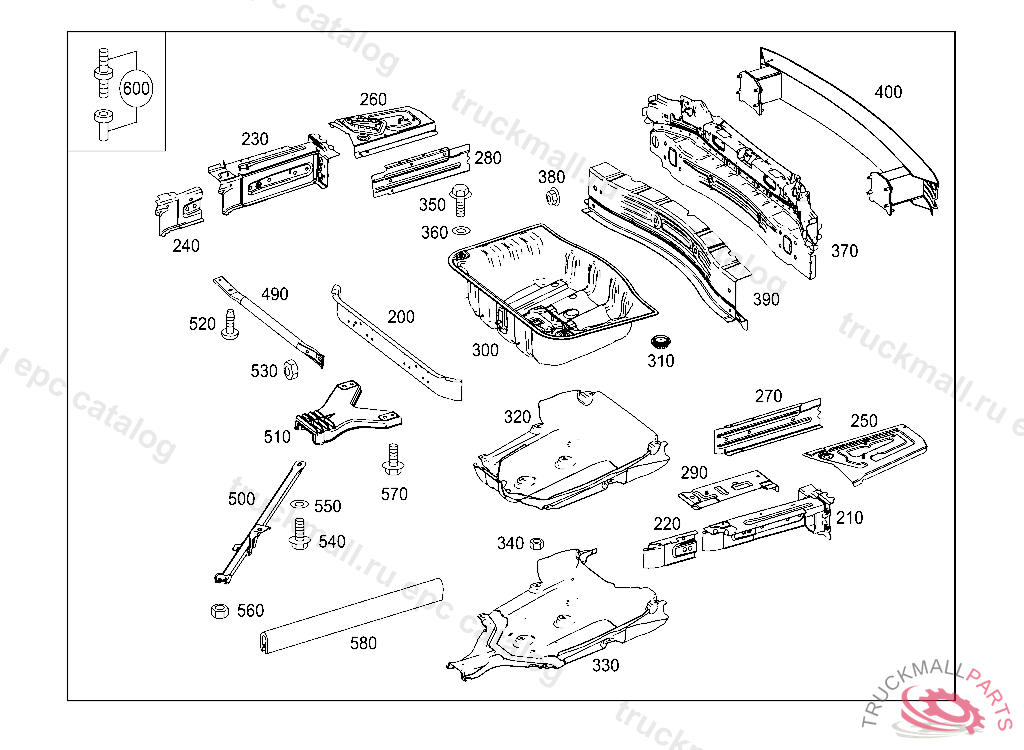

Поз.
Артикул
Описание
200
CLOSING WALL REAR CENTRAL
210
LONGITUDINAL MEMBER REAR LEFT
220
CLOSING WALL TO LEFT CROSSMEMBER
230
LONGITUDINAL MEMBER REAR RIGHT
240
CLOSING WALL TO CROSSMEMBER, RIGHT
250
STRIKING PLATE REAR LEFT
260
STRIKING PLATE RIGHT
270
STRIKING PLATE AT SIDE MEMBER, INTERIOR LEFT
280
STRIKING PLATE SIDE MEMBER,INSIDE RIGHT
290
STRIKING PLATE LEFT REAR SIDE MEMBER
300
SPARE WHEEL RECESS
300
SPARE WHEEL RECESS
300
SPARE WHEEL RECESS
310
WATER DRAIN GROMMET DEFLECTOR
320
COVER, REAR-END FLOOR REAR END FLOOR
320
COVER, REAR-END FLOOR REAR END FLOOR
330
COVER, REAR-END FLOOR REAR END FLOOR
330
COVER, REAR-END FLOOR REAR END FLOOR
340
HEXAGON NUT W COLLAR BRACKET MOUNTING
350
SCREW BRACKET TO CONSOLE
360
WASHER BRACKET TO FUEL TANK SUPPORT
370
REAR APRON BOTTOM
380
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
390
CROSS MEMBER REAR
400
REAR CROSS MEMBER
490
STRUT REAR LEFT
490
STRUT REAR RIGHT
500
STRUT REAR RIGHT
500
STRUT REAR LEFT
510
BRACKET AT SPARE WHEEL WELL
520
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
530
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
540
BOLT BACKREST ATTACHMENT
560
NUT-AND-WASHER ASSEMBLY TORSION BAR LINKAGE TO SUSPENSION STRUT M10, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000000005278
570
BOLT STRUT TO FRAME-TYPE INTEGRAL SUPPORT
600
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
