Mercedes
CAR
S500 4-MATIC
222.185
21 MAJOR ASSEMBLY DETACHABLE BODY COMP.

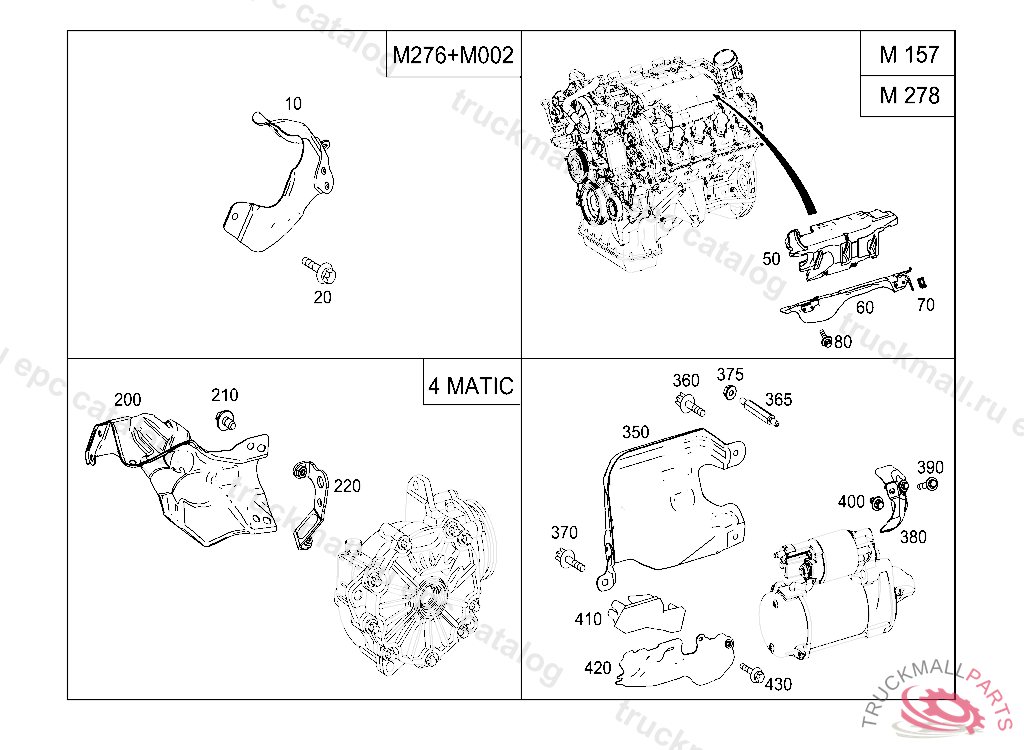

300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION

Mercedes A2213320388 - Кулак поворотный

S500 4-MATIC 222.185

21 MAJOR ASSEMBLY DETACHABLE BODY COMP. - 300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION

Поз.
Артикул
Описание
50
A2782262185
SOUNDPROOFING TOP LEFT
50
A2782262085
SOUNDPROOFING TOP RIGHT
60
A2780944920
SCREENING PLATE LEFT, A 20130508
60
A2780940720
SCREENING PLATE RIGHT
70
A0009910271
RETAINING CLAMP18X19 MM
80
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
80
N000000001145
SCREW BRACKET TO COVERING
200
A2213320388
SCREENING PLATE FRONT AXLE GEAR, A 87291020130328 G 20130328 R 29354120130423
210
N000000004310
HEXAGON HEAD BOLT LINE MOUNTING M6X10
220
A2213350440
BRACKET SHIELDING AT FRONT AXLE GEAR, A 09213020130328
350
A2781503375
SCREENING PLATE STARTING MOTOR, A 02963420111029
360
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
370
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
