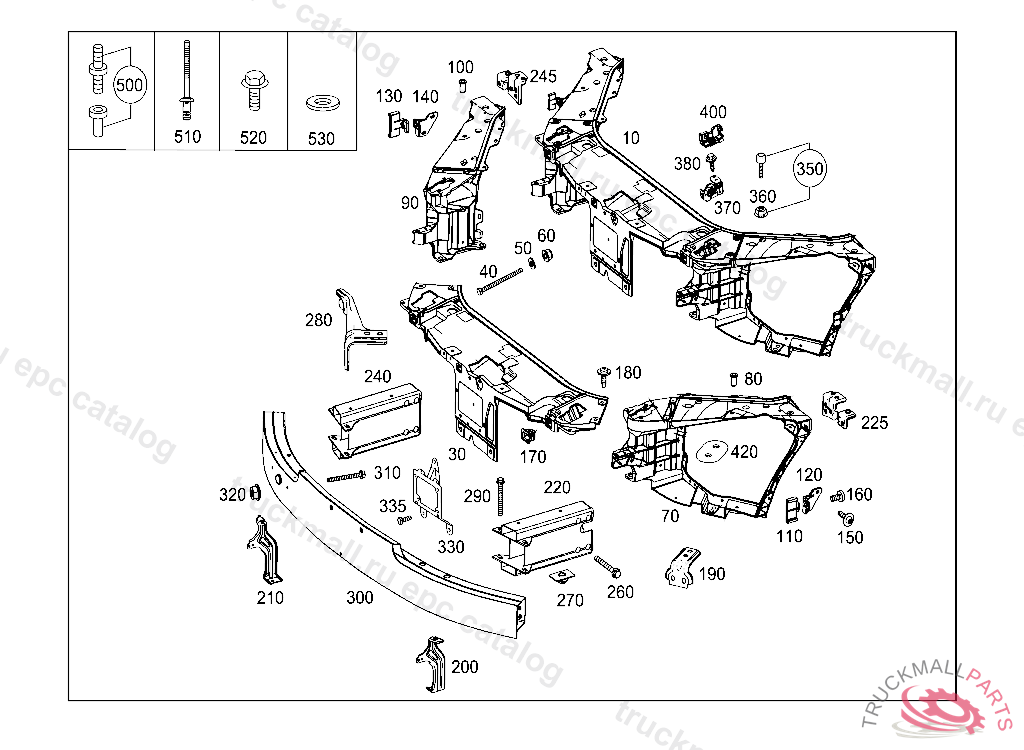

Поз.
Артикул
Описание
10
BEAM FRONT MODULE TOP
30
STIFFENING CENTRAL
40
RETAINING HOOK ON FRONT CENTRAL STIFFENING
50
WASHER P.T.O. TO TRANSMISSION
60
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
70
FRAME FOR LIGHT LEFT
80
RIVET NUT. RIVETED NUT GRIP RAIL MOUNTING
90
FRAME FOR LIGHT RIGHT
100
RIVET NUT. RIVETED NUT GRIP RAIL MOUNTING
110
CORNER BRACKET LEFT OUTSIDE
120
CORNER BRACKET LEFT INSIDE
130
CORNER BRACKET RIGHT OUTSIDE
140
CORNER BRACKET RIGHT INSIDE
150
PAN HEAD SCREW. SCREW GROUND CONNECTION
160
SCREW BRACKET TO COVERING
160
HEXALOBULAR BOLT REAR AXLE,LEFT M6X20
170
BRACKET FRONT CENTRAL STIFFENING
180
PAN HEAD SCREW FRAME AT REINFORCEMENT 7X25
190
STRUT LEFT
200
BRACKET LEFT
210
BRACKET RIGHT
220
ABSORBER LEFT
225
ATTACHMENT ANGLE BRACKET LEFT
240
ABSORBER RIGHT
245
ATTACHMENT ANGLE BRACKET RIGHT
260
EXTERNAL HEXAL. HD. BOLT ABSORBER AT LONGITUDINAL MEMBER
270
BRACKET MOUNTING BUMPER
280
STRUT RIGHT
290
HEXAGON HEAD BOLT TORSION BAR TO SHACKLE M12X1,5X110MM
300
CROSS MEMBER
300
CROSS MEMBER
310
HEXALOBULAR BOLT BRACKET TO BRACKET
320
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
330
BRACKET RADAR SENSOR FOR DISTRONIC
335
SCREW LEVER TO ENGINE CONTROL SHAFT
350
BUFFER LEFT, FROM CHASSIS: 010 077937
360
NUT , Replaced By: N913023006001
370
LOCK LOWER PART LOWER PART
380
BOLT WIPER MOTOR TO REAR PANEL DOOR M6X24
400
SWITCH FOR ANTI-THEFT ALARM, A 21281620080731 L 01422120080731 V 00079320080731 F 23142420080731 L 10000020081016
400
SWITCH HOOD CATCH RIGHT
420
FASTENING PLATE FRAME,LEFT AND RIGHT
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
510
RIVET TRIM STRIP FASTENING
520
SCREW , WITH DIESEL ENGINE
520
SCREW PUMP TO BRACKET
520
BOLT LOWER SUPPORT M6X19
520
SCREW LICENSE PLATE TO BRACKET
530
COMBINATION BOLT FENDER TO A-PILLAR M6X20
530
SCREW, SPECIAL SHAPE FRONT MODULE M6X40
530
WASHER COMPRESSED AIR LINE TO BRACKET
530
WASHER COMPRESSED AIR LINE TO BRACKET
530
BOLT WIPER LINKAGE ON BRACKET
530
SCREW-AND-WASHER ASSEMBLY HEAT EXCHANGER TO BODY
530
HEXAGON HEAD BOLT STOP TO CONSOLE M6X18
