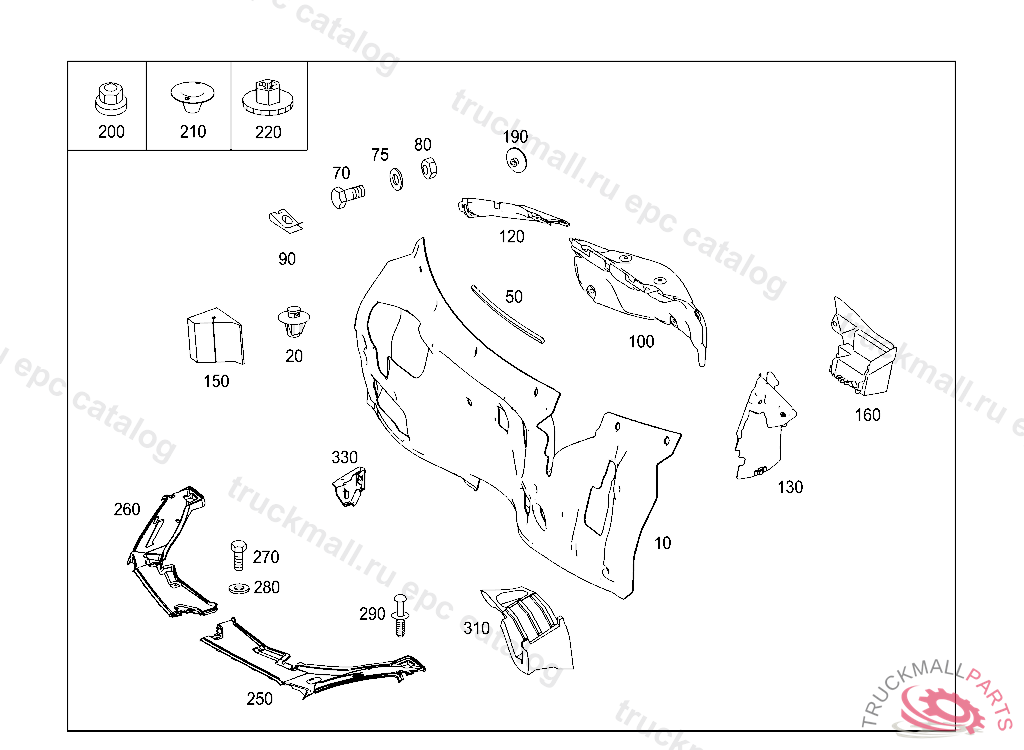

Поз.
Артикул
Описание
10
INSULATION AT FIRE WALL, INSIDE, A 10785420091223
10
INSULATION AT FIRE WALL, INSIDE
10
INSULATION AT FIRE WALL, INSIDE
20
FASTENER BUTTON COVERING TO PARTITION PANEL,LEFT AND RIGHT
50
INSULATION FIREWALL TOP CENTER, TO BE ADAPTED DURING ASSEMBLY
70
SCREW PUMP TO BRACKET
75
WASHER COMPRESSED AIR LINE TO BRACKET
80
PLASTIC NUT. NUT
90
SPRING CLAMP FOR REAR MUFFLER SHIELDING TO TOPBUMPER
100
INSULATION CENTRAL, A 16241020121203
100
FRONT END INSULATION CENTRAL, A 11994820100930801
100
INSULATION CENTRAL, A 13786620110729802
100
ENGINE COMP. INSULATION CENTRAL
120
PARTITION PANEL CENTRAL BOTTOM
120
PARTITION PANEL CENTRAL BOTTOM
130
ENGINE COMP. INSULATION RIGHT
130
INSULATION LEFT
130
INSULATION RIGHT, A 16241020121203
150
SEAL AT FIREWALL,BOTTOM RIGHT
160
PARTITION PANEL CENTRAL TOP
160
PARTITION PANEL CENTRAL TOP LEFT
190
NUT INSULATION AND BRACKET TO BODY
200
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
210
FASTENER BUTTON PANELLING TO FRONT PANEL,F 000207
250
COVER MOLDING RADIATOR CROSSMEMBER, LEFT, A 10483520090930800
260
COVER MOLDING RADIATOR CROSSMEMBER, RIGHT, A 10483520090930800
270
SCREW LICENSE PLATE TO BRACKET
280
WASHER COMPRESSED AIR LINE TO BRACKET
290
RIVET BUSHING AND LEVER TO CAB
310
SEAL SPRING STRUT TOWER, LEFT
310
SEAL STRUT TOWER RIGHT
330
COVER SPRING STRUT TOWER, LEFT
