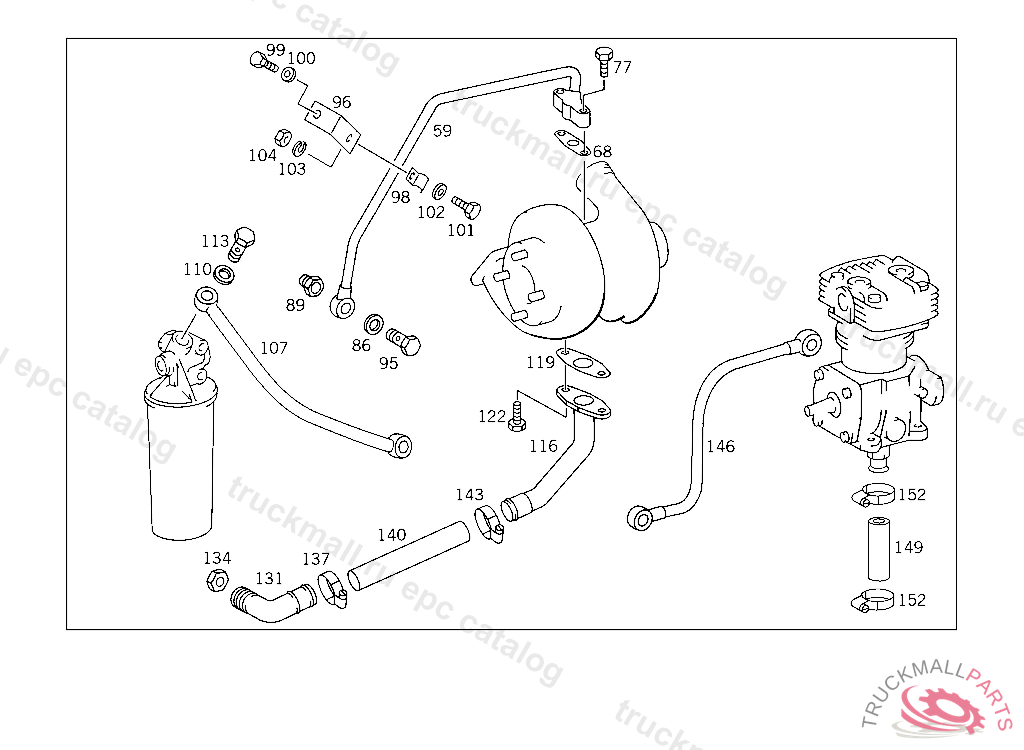

Поз.
Артикул
Описание
59
OIL LINE TURBOCHARGER
68
GASKET , Replaced By: A4421870180
68
GASKET FLANGE TO TURBOCHARGER
77
SCREW PULLEY
86
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
95
HOLLOW SCREW FUEL LINE TO TANK,659794
96
BRACKET OIL DELIVERY LINE
98
CLAMP OIL LINE TO BRACKET
98
BEFESTIGUNGSSCHELLE. CLAMP LINES TO ENGINE
99
SCREW BRACKET TO SIDE MEMBER
100
WASHER GROUND CABLE
101
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
102
WASHER PLUG SOCKET TO BRACKET
103
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
104
NUT
107
OIL LINE
110
SEAL RING BRAKE CYLINDER STROKE INDICATOR
113
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
116
OIL LINE OIL RETURN LINE
119
GASKET , Replaced By: A4421870080
119
GASKET OIL RETURN LINE TO TURBOCHARGER
119
GASKET OIL RETURN LINE TO TURBOCHARGER
122
SCREW LINES TO BRACKET
131
PIPE BEND AT AIR COMPRESSOR
134
NUT , Replaced By: N080705026003
137
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
140
HOSE
143
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
146
OIL LINE AIR COMPRESSOR LUBRICATION FEED
149
HOSE AIR-COMPRESSOR OIL-RETURN LINE
152
CLAMP HOSE TO FITTING AND TO OIL TANK
152
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
