Поз.
Артикул
Описание

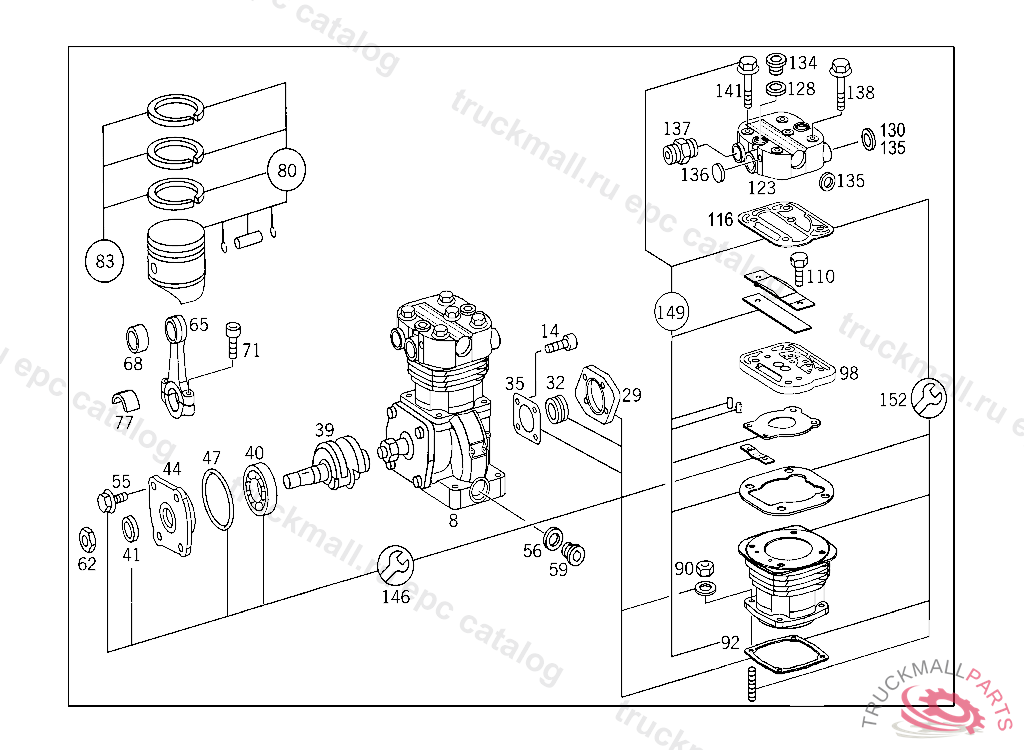

8
COMPRESSOR AIR COMPRESSOR KNORR
8
COMPRESSORKNORR 225 CMM
14
SCREW. CAP BOLT COVER TO CASE M8X25
29
BRACKET , Replaced By: A0001310841
29
BRACKET
32
BUSHING CRANKSHAFT REAR BEARING TO 376 131 72 01
32
BUSHING CRANKSHAFT REAR BEARING TO 004 131 01 01
32
BUSHING CRANKSHAFT REAR BEARING TO 376 131 74 01
32
BUSHING CRANKSHAFT REAR BEARING
35
GASKET , Replaced By: A0011315280
35
GASKETTO 376 131 74 01
39
CRANKSHAFT
39
CRANKSHAFTTO 376 131 74 01
40
CYLINDR. ROLLER BEARING
41
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
41
SEAL RING , Replaced By: A0001314960
41
SEAL RINGTO 376 131 74 01
44
BEARING CAPTO 376 131 74 01
44
BEARING CAP
47
SEAL RINGTO 376 131 74 01
55
SCREW , Replaced By: N910143008002
56
SEAL RING PNEUMATIC VALVE
59
SCREW PLUG , Replaced By: N000000000648
62
NUTTO 376 131 74 01
65
CONNECTING ROD LESS BEARING SHELLS TO 003 131 48 01,004 131 58 01
65
CONNECTING ROD
65
CONNECTING RODTO 376 131 72 01
65
CONNECTING ROD LESS BEARING SHELLS TO 376 131 74 01
68
BUSHING
68
BUSHINGTO 376 131 72 01
71
SCREWTO 000 131 20 17,003 131 59 01
71
SCREW. CAP BOLT COVER TO CASE M8X25
77
BEARING SHELLTO 003 131 48 01,004 131 58 01
77
BEARING SHELL
80
PISTON
80
PISTON WITH PISTON PIN AND PISTON RINGS 0,50 ,TO 376 131 72 01
80
PISTON WITH PISTON PIN AND PISTON RINGS 0,25 ,TO 376 131 72 01
80
PISTONTO 376 131 74 01
80
PISTON WITH PISTON PIN AND PISTON RINGS TO 376 131 72 01
80
PISTONTO 003 131 48 01,004 131 58 01
83
PISTON RING PARTS KIT TO 376 131 72 01
83
PISTON RING PARTS KIT
83
PISTON RING PARTS KIT TO 003 131 48 01
83
PISTON RING PARTS KIT TO 376 131 74 01
90
NUT HORN TO BRACKET M8
92
GASKETTO 376 131 72 01
92
GASKET , Replaced By: A0011316480
92
GASKET
92
GASKET , Replaced By: A0011315380
98
VALVETO 376 131 74 01
110
SCREW LOCK SPRING TO CROSS MEMBER
116
GASKET CYLINDER HEAD TO CYLINDER LINER TO 376 131 72 01
116
GASKET , Replaced By: A0011316580
123
CYLINDER HEADTO 376 131 74 01
128
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
134
SCREW PLUG , Replaced By: N000908026008
135
EXPANSION PLUG TO PLUG AIR COMPRESSOR CYLINDER HEAD
136
EXPANSION PLUG
137
ADAPTER FITTINGTO 376 131 74 01
138
SCREWTO 376 131 74 01
141
SCREW , Replaced By: N910143008010
141
SCREWTO 376 131 74 01
146
REPAIR KIT AIR COMPRESSOR
146
REPAIR KIT AIR COMPRESSOR TO 376 131 74 01
149
CYLINDER HEAD PARTS KIT TO 376 131 74 01
152
CYLINDER LINER WITH PISTON TO 376 131 74 01
999
SEAL RINGTO 376 131 72 01
999
SEAL RINGTO 376 131 74 01
